2. GUIDE BAR MAINTENANCE
• Conditions which can require guide bar
maintenance:
— saw cuts to one side
— saw has to be forced through a cut
—inadequate supply of oil to bar and
chain.
• Check the condition of the guide bar each
time the chain is sharpened. A worn guide
bar wil) damage the chain and make cut­
ting more difficult.
• Replace the guide bar when:
— the inside groove of the guide bar rails is
worn.
— the guide bar is bent or cracked.

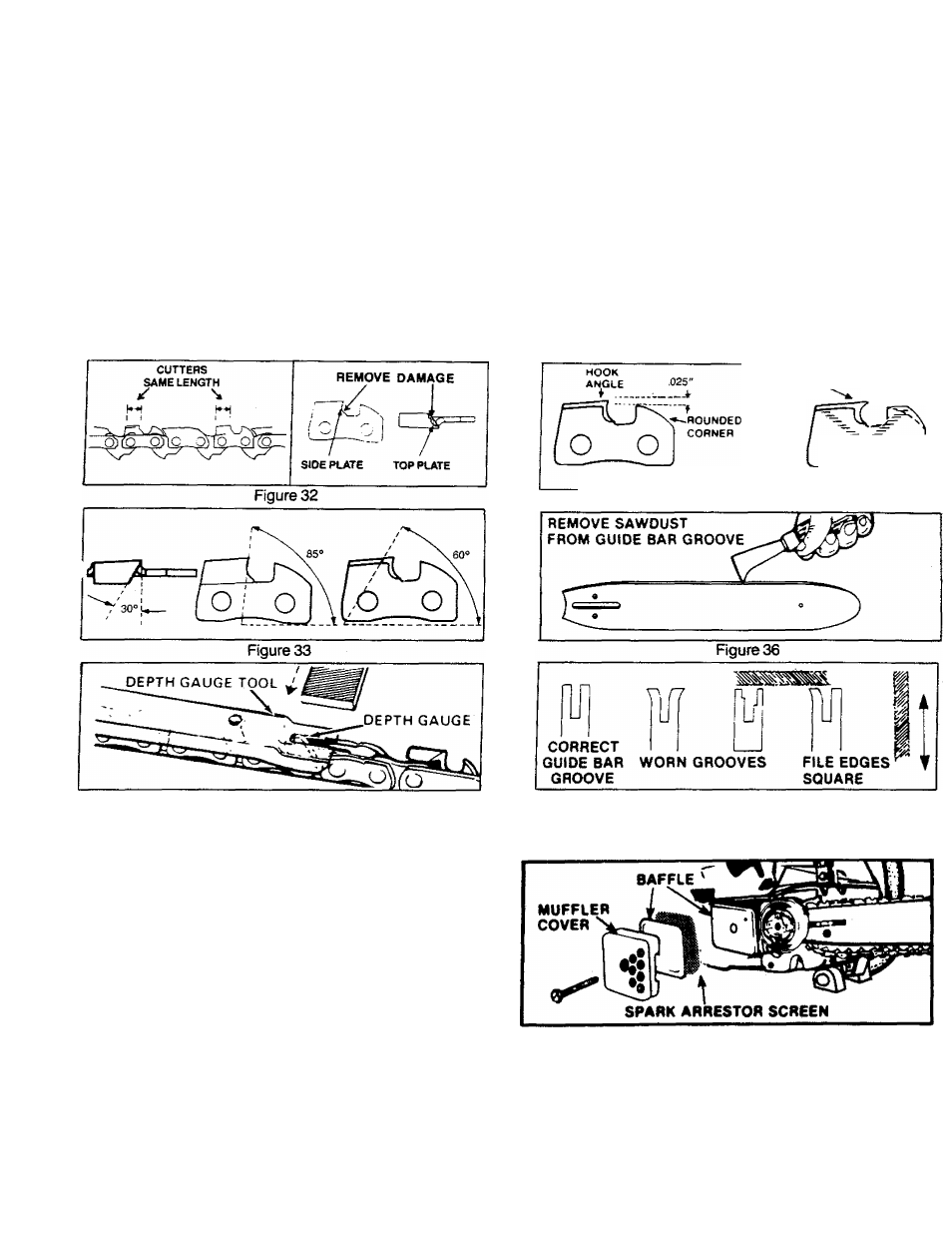

Figure 34
• Use only the Reduced-Kickback Guide Bar
specified for your saw in “Specifications” for
replacement.
a. Remove the guide bar to service.
b. Clean oil holes at least once for each five
hours of operation.
c. Remove sawdust from the guide bar
groove periodically with a putty knife or a
wire. Figure 36.
d. Remove burrs by filing the side edges of
the guide bar grooves square with a flat file.
Figure 37.
e. Restore square edges to an uneven rail
top by filing with a flat file. Figure 37.
TOO MUCH
HOOK ANGLE
SQUARED
OFF CORNER
RIGHT WAY
2&Q
WRONG WAY
Figure 35
Figure 37
B. SPARK ARRESTOR
• Carbon deposits build up on the spark ar­
restor, as the saw is used and must be removed to
avoid creating a fire hazard or causing engine dam­
age.
• Replacethesparkarrestorifbreaksoccur,
• Keep the spark arrestor clean at all times.
Clean:
—as required
—at least once for each 25-30 hours of operation
Items required: wire brush, 3/8" wrench
Figure 38
1 . Disconnect the spark plug wire.
2. Remove the Muffler Cover. Figure 38.
3. Remove the screen from the baffle.
4. Clean the screen with a wire brush or replace if
breaks are found.
5. Reassemble parts.
