Troy-Bilt TUFFY 1634A - Manual (Page 25)

MODELS 630C & 634A

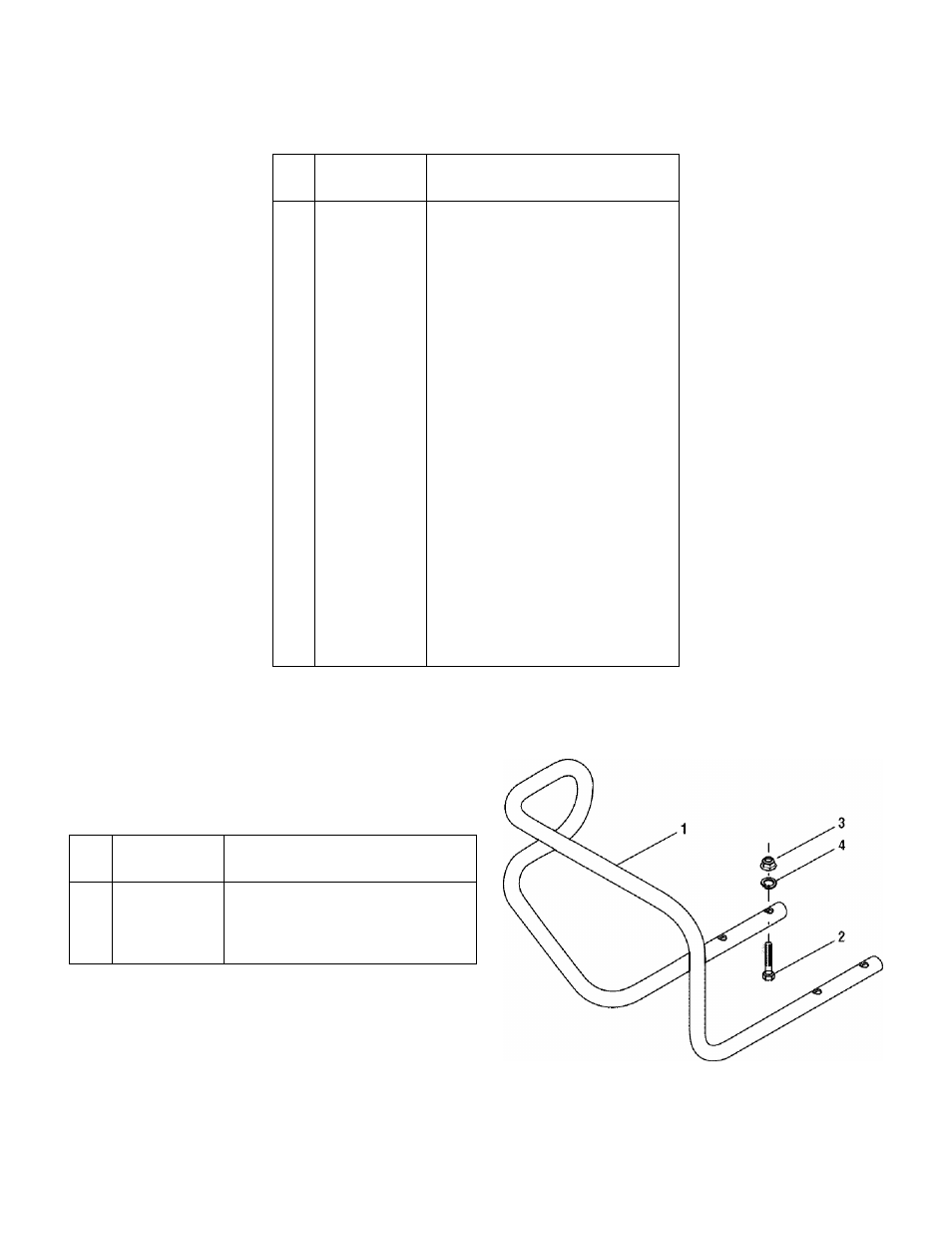

REF
NO.
PART NO. DESCRIPTION
1 1916719 Cable Assembly, Reverse Clutch (B)
2 1916755 Upper Handlebar
3 747-04210 Bail, Forward Clutch
4 1918745 Cable Assembly, Forward Clutch
5 710-0599 Screw, Self-Tapplng,1/4-20x 1/2
6 710-3008 Screw, Hex, 5/16-18x3/4
7 712-3009 Hex Lock Nut, 5/16-18
8 786-04188 Handlebar Support
9 GW-55043 Lower Handlebar
10 786-04200 Panel
11 GW-55044 Tab, Conduit Mount
12 GW-9855 Screw, #10-24x2
13 725-0157 Cable Tie
14 736-3050 Flat Washer, 3/8
15 786-04040 Bracket, Reverse Clutch Cable (B)
16 732-04185 Spring, Forward Clutch
17 710-0106 HexHd. Screw, 1/4-20x1-1/4
18 710-0216 Screw, Hex, 3/8-16x3/4
20 710-0805 Screw, Hex, 5/16-18x1-1/2
21 712-0121 Hex Nut, #10-24
22 712-0291 Hex Lock Nut, 1/4-20
23 712-3000 Hex Nut, 3/8-16
25 736-0119 Lock Washer, 5/16
REF
NO.
PART NO. DESCRIPTION
1 749-04193 Bumper (B)
2 710-0395 Hex Screw, 5/16-18 x 2-1/4 (B)
3 712-04063 Nut, Flange Lock, 5/16-18 (B)
4 726-0201 Speed Nut (B)
(A) For Model 630C
(B) For Model 634A
25
