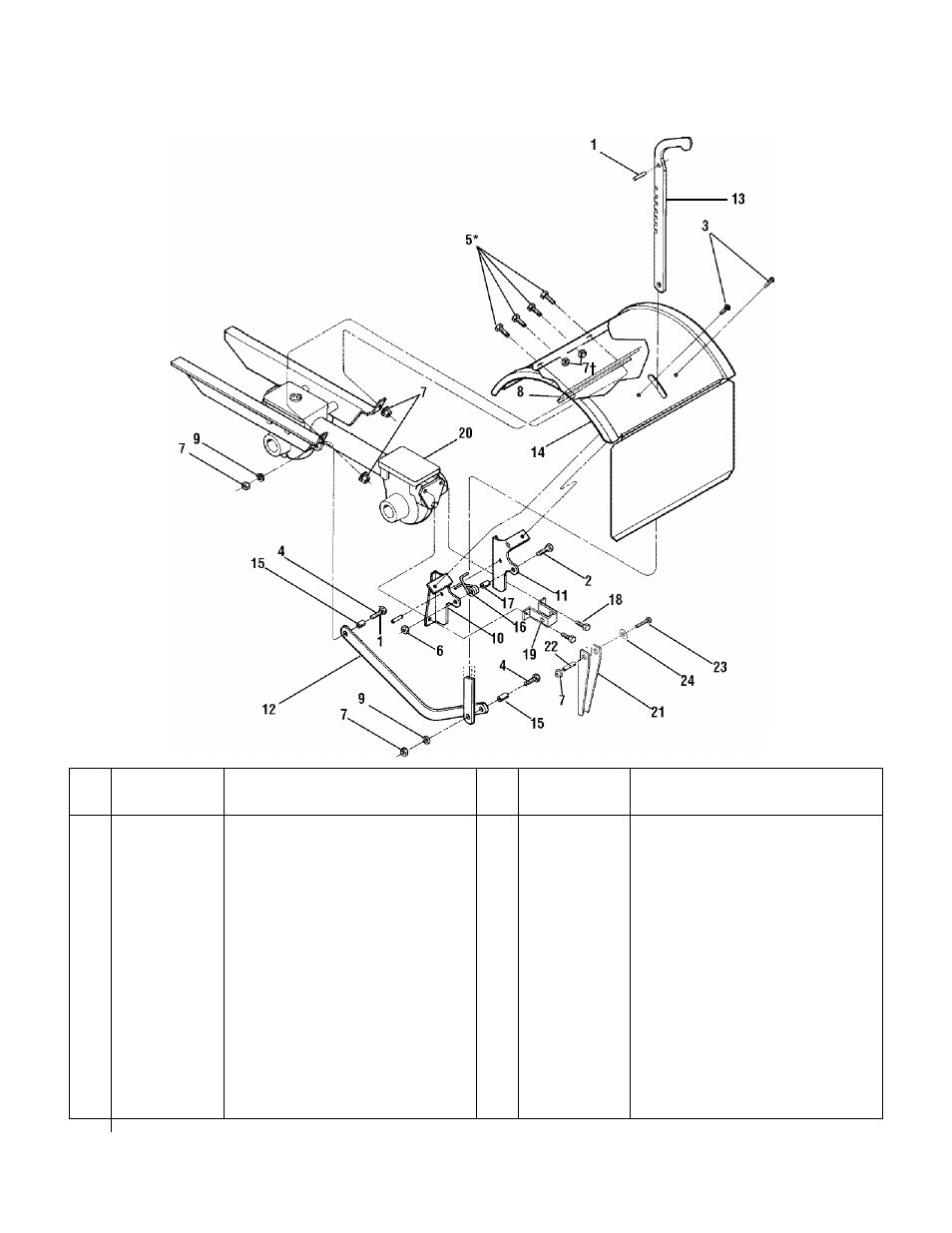

SECTION 6: MODELS 630C & 634A PARTS LIST
(A)
For Model 630C
(B)
For Model 634A
REF
NO.
PART NO.
DESCRIPTION
REF
NO.
PART NO.
DESCRIPTION
1
1185469
Spirol Pln(B)
13
GW-55018
Depth Regulator Lever
715-0108
Spirol Pin
(A)
14
686-04041
Tine Hood Assembly
(B)
2
710-0597
Flex Fid. Screw, 1/4-20 x 1
686-04043
Tine Hood Assembly
(A)
3
710-0599
Screw, Self-Tapping,1/4-20 x 1/2
15
GW-55088
Bushing
4
710-0874
Hex Hd. Screw, 5/16-18x1-1/4
16
GW-9384
Spring, Depth Regulator
5
710-3008*
Hex Hd. Screw, 5/16-18x3/4
17
GW-9534
Spacer
6
712-0324
Lock
Nut,
1/4-20
(B)
18
710-04048
Hex Hd. Flange Screw, 5/16-18x1
712-04064
Flange Lock
Nut,
1/4-20
(A)
19
786-04191
Trail Shield Stop Bracket
7
712-04291
Lock
Nut,
5/16-18
(B)
20
618-04000
T ransmission Assembly
(B)
712-04063
Flange Lock
Nut,
5/16-18
(A)
618-04254
Transmission Assembly
(A)
8
1916707
Support Bracket
21
1916570
Reverse Stop Arm
(A)
9
736-0119
Lock Washer, 5/16
(B)
22
1916771
Split Spacer,.462x.328x 1.63
(A)
10
GW-55013-1
Hood Bracket, Left Hand
23
710-0395
Screw, 5/16-18x2.25
(A)
11
GW-55013-2
Hood Bracket, Right Hand
24
736-0275
Flat Washer,.344 X.688X.065
(A)
12
GW-55015
Drag Bar
* 4 on Model 634A
16 on Model 634A
