ASSEMBLY INSTRUCTIONS
CONTENTS OF HARDWARE PACK:

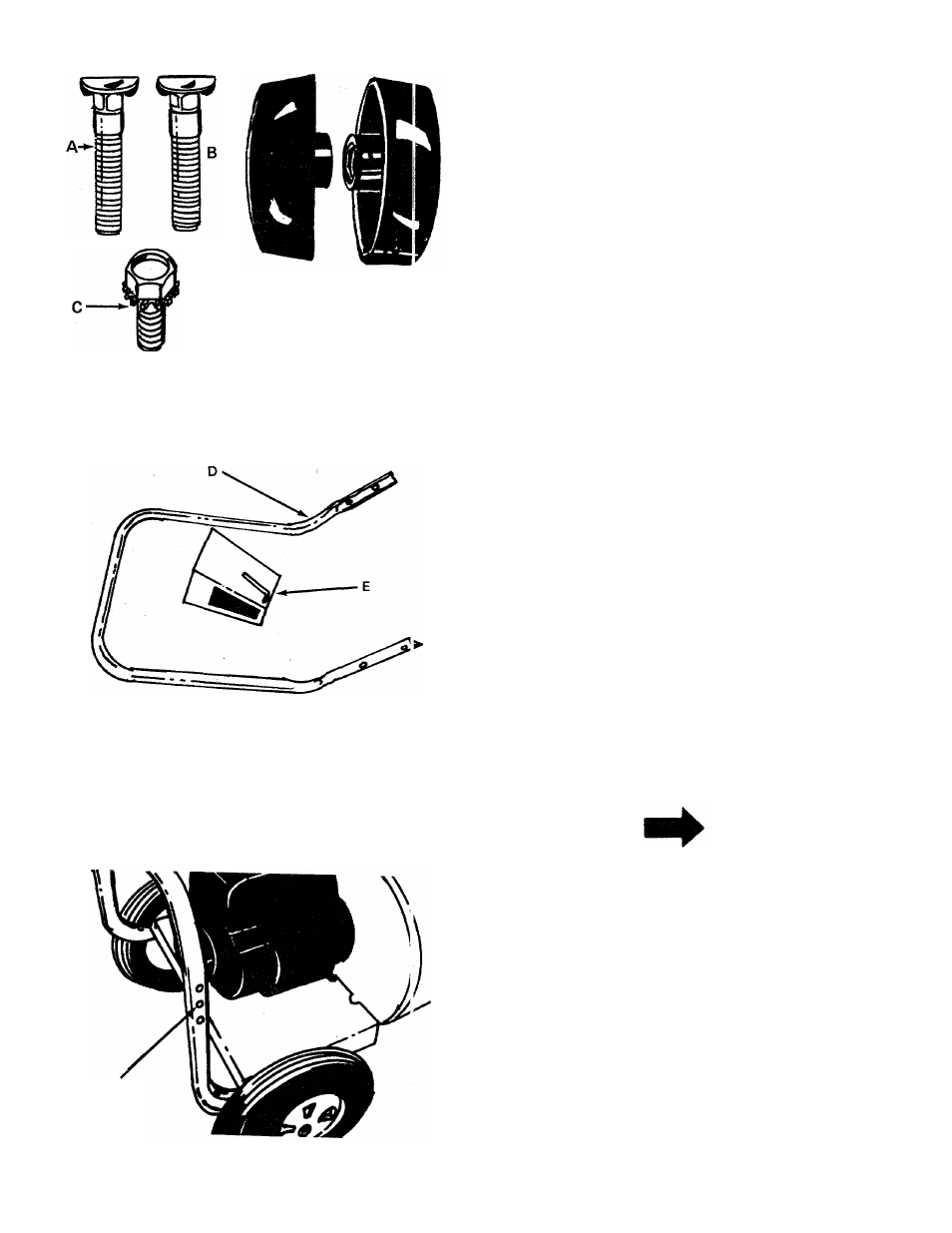

(See Figure 1)
A (2) Carriage Bolts
B (2) Hand Knobs
C (1) Hex Sems Bolt
FIGURE 1.
PARTS IlM CARTON (See Figure 2):
D (1) Upper Handle
E (1) Directional Discharge
FIGURE 2.
NOTE
USE THIS
HOLE ONLY
The right and left side of your leaf
blower is determined from operator's
position.
1.
Remove the leaf blower, hardware pack and all
literature
from
the
carton
before
discarding
carton.
2.
Figure 3 shows lower handle. Upper handle
mounts in center hole only.
FIGURE 3.
