UNPACKING YOUR TABLE SAW AND CHECKING CONTENTS
Your Mode! BTS10 Table Saw is shipped complete in one
carton and includes rip fence, miter gauge, blade guard,
accessory storage brackets, wrenches. Operator's Manual,
and warranty information.
When you get your new table saw home, unpack the box to
make sure all information and accessories are included.
Separate all loose parts and compare with the illustration
below to make sure all loose items are accounted for. Do not
discard any packing material until you are sure you have
everything or have checked all packaging for any missing
parts.
If any parts are missing or damaged, contact 1-800-525-2579.
A
WARNING:
To avoid risk of serious personal injury, do not attempt to
assemble the table saw, plug in the power cord, or turn
the power switch on until all damaged or missing parts
are obtained and properly installed.
17
14
15
16
19

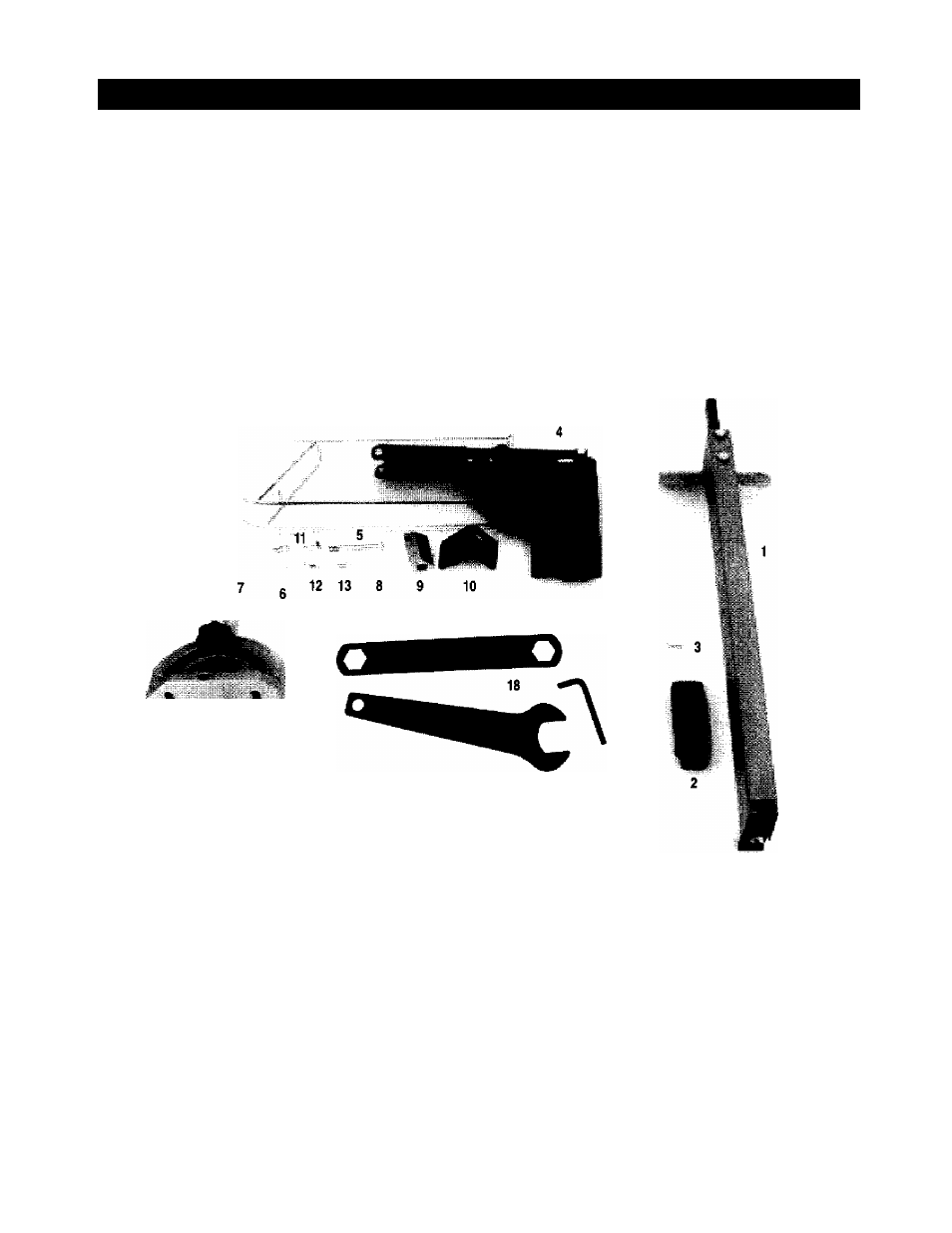

Fig. 1
List of Loose Parts
Key # Description
Quantity
Key #
1
Rip Fence................................................................ 1
11
2
Rip Fence Lock Down Handle................................. 1
12
3
M4
X
15 mm Tapping Screw.................................... 1
13
4
Blade Guard/Riving Knife Assembly........................1
14
5
1 /4-20
X
2-1/4” Socket Head Bolt............................1
15
6
1/4" External Tooth Lock Washers.......................... 4
16
7
1/4" Internal Tooth Lock washer.............................. 1
17
8
1/4" Flat Washer...................................................... 2
18
9
Blade Guard Mounting Bracket............................... 1
19
10
Blade Guard Support Bracket..................................1
20
Page 8
Description
Quantity
1/4-20 X 1/2" Hex Head Bolt................................ 2
M6 Wing Nut........................................................ 1
M6 X 19 mm Carriage Bolt...................................1
Blade Control Handle........................................... 1
1/4-20 X 2-7/16" Shoulder Bolt............................ 1
1/4-20 Lock Nut....................................................1
Miter Gauge....................................................... 1
Wrenches..............................................................2
1/4” Flat Washer................................................ 1
Operator’s Manual (Not Shown)...........................1
