MODEL 12194 8HP MODEL TILLER

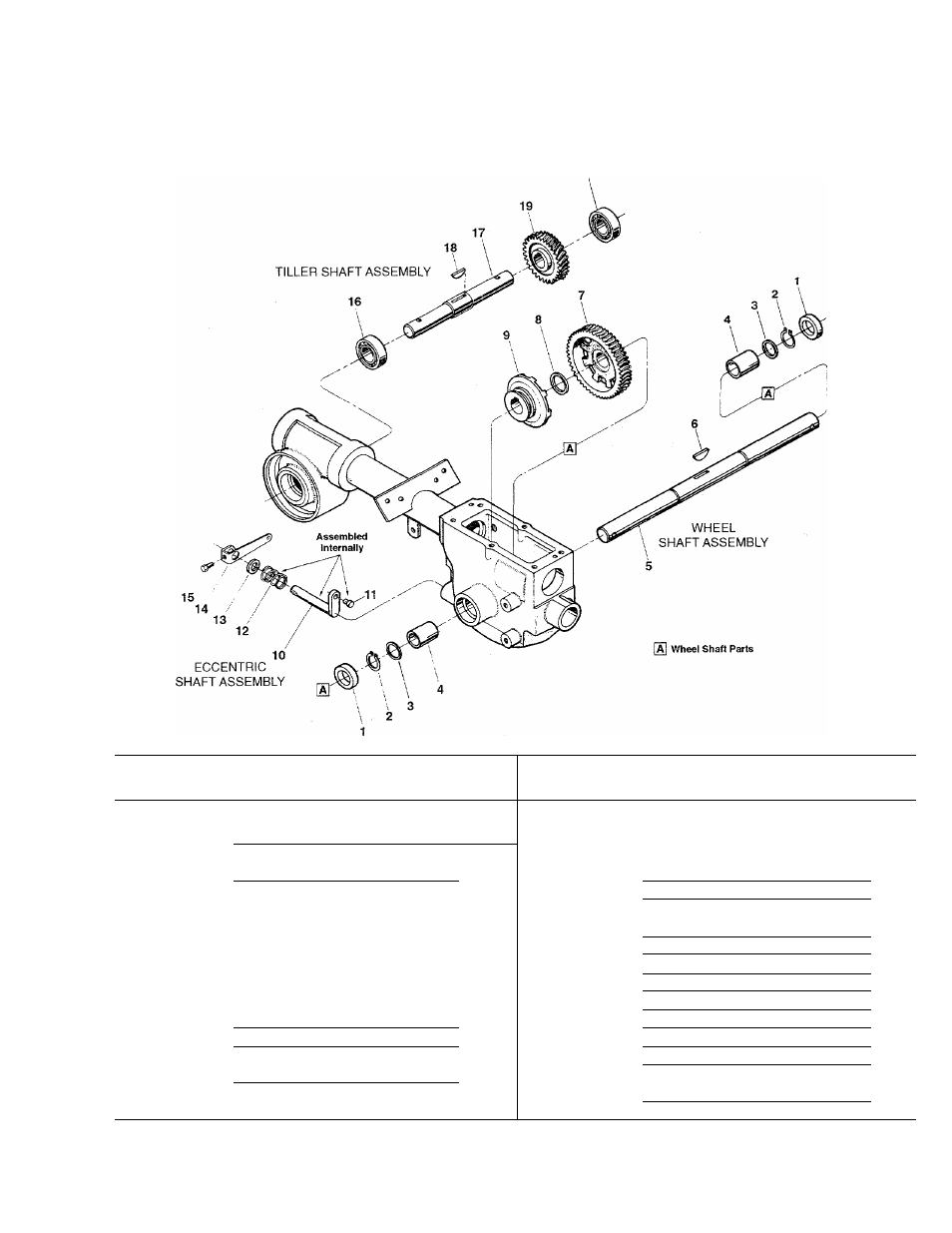

WHEEL SHAFT, ECCENTRIC SHAFT AND TILLER SHAFT ASSEMBLIES
16
REF
No.
PART
No. DESCRIPTION QTY.
REF
No.
PART
No. DESCRIPTION QTY.
1 9621 Oil Seal-left and right sides............ 2 8 9935 Shim-between key and gear
2 9511 Ring-retaining, heavy-duty, external 2 (1.016 I.D.x 1.468 O.D.X.062
3 1166-1 Shlm-1-1/64 I.D., .062 thick........... As thick)........................................... 1
Req'd 9 20712 Clutch-wheel drive, cast iron.......... 1
— 1166-2 Shim-as above, but .030 thick.... As 10 20699 Eccentric Shaft-wheel clutch
Req'd shifting........................................ 1
1166-3 Shim-as above, but .015 thick.... As 11 1442 Pin-eccentric shaft......................... 1
Req'd 12 9055 Spring............................................. 1
--- 1166-4 Shim-as above, but .010 thick.... As 13 9622 Oil Seal-eccentric shaft.................. 1
Req'd 14 20757 Lever-eccentric shaft...................... 1
4 1086 Bushing.......................................... 2 15 1100804 Screw-hex hd., 1/4-20 x 1/2*.......... 1
5 1916711 Wheel Shaft (axle).......................... 1 16 97074 Ball Bearing-for tiller shaft.............. 2
6 9373 Key-hi-pro (1/4 X 1-5/16), clutch 17 1916709 Tiller Shaft...................................... 1
to wheel shaft............................. 1 18 1104 Key-woodruff, 1/4 x 1-1/4,
7 20914 Gear-wheel drive (worm gear). for tiller shaft/worm gear............. 1
cast iron...................................... 1 19 1904279 Worm Gear-bronze, tiller drive.... 1
Specify GRADE 5 if ordering part locally.
