Troy-Bilt 12194 - Manual (Page 6)

8HP MODEL TILLER MODEL 12194

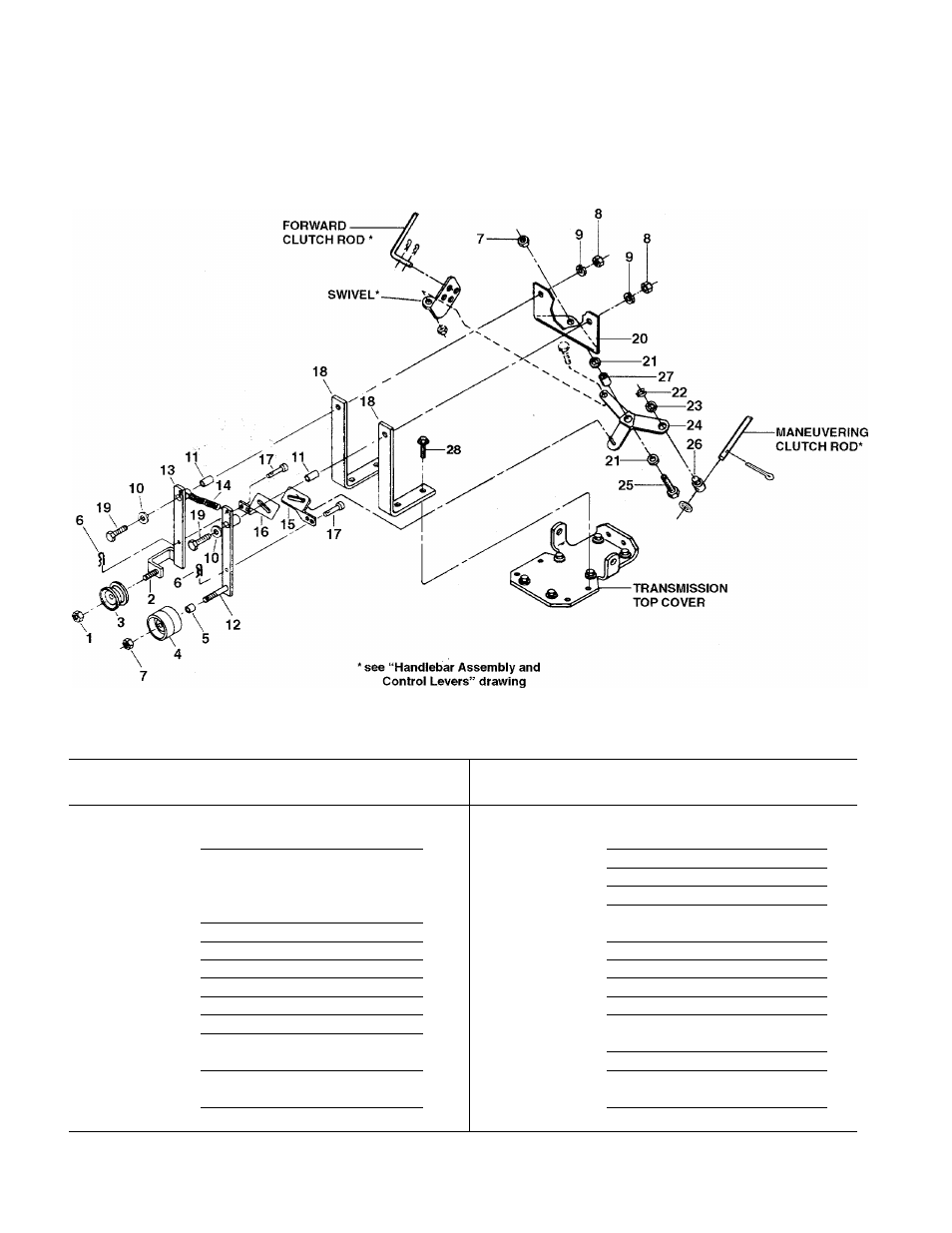

FORWARD/REVERSE IDLER ASSEMBLY
REF
No.
PART
No. DESCRIPTION QTY.
REF
No.
PART
No. DESCRIPTION QTY
1 1185506 Locknut-hex, 3/8-16......................... 1 15 20517-01 Forward Link.................................... 1
2 1110043 Screw-hex hd, 3/8-16x1-1/4**... 1 16 20517-02 Reverse Link................................... 1
3 1909266 Pulley-idler, reverse tiller direction 1 17 9340 Pin................................................... 2
4 9193 Pulley-idler, forward tiller direction 1 18 1916194001 Mounting Bar................................... 2
5 1113-1 Spacer............................................. 1 19 1111607 Screw-hex hd., 5/16-18 x 2-1/4** 2
6 9338 Hairpin Cotter.................................. 2 20 1916195001 Shifting Base................................... 1
7 1110108 Locknut-hex, 3/8-16......................... 2 21 20553 Spacer-Bushing............................... 2
8 1186230 Nut-hex, 5/16-18.............................. 2 22 9532 Klip Ring.......................................... 1
9 1100242 Lockwasher-5/16............................. 2 23 20546 Washer-pivot.................................... 1
10 20545 Washer-plain, 5/16.......................... 2 24 1916196001 Bellcrank.......................................... 1
11 9479 Pivot Bushing.................................. 2 25 1100043 Screw-hex hd., 3/8-16 x 1-1/4**.. 1
12 1916192001 Idler Arm-left, forward filler 26 1916897 Pivot-for Reverse Clutch lever......... 1
direction....................................... 1 27 20532 Bushing-bellcrank............................ 1
13 1909682001 Idler Arm-right, reverse tiller 28 1186331 Screw-flanged hex hd..
direction....................................... 1 5/16-18x1*.................................... 4
14 1492 Spring.............................................. 1
** Specify GRADE 5 if ordering parf locally.
