SFBVICE AND AaiM.SIMFWrf.
A
CAyiiON: BEFORE PERFORMINS ANY SERVICE OR ADJUSTMENTS:
Depress clutch/brake pedal fully afli feet parkirig brake.
Place gearshift lewer in neutral (N) position.
Place attachment clutch in "DISENGAGED" position.
Turn ignition key "OFF" and remove key.
Make sure the blades and all moving parts have completely stopped.
Disconnect spark plug wire from spark plug and place wire where it cannot come in contact
with plug

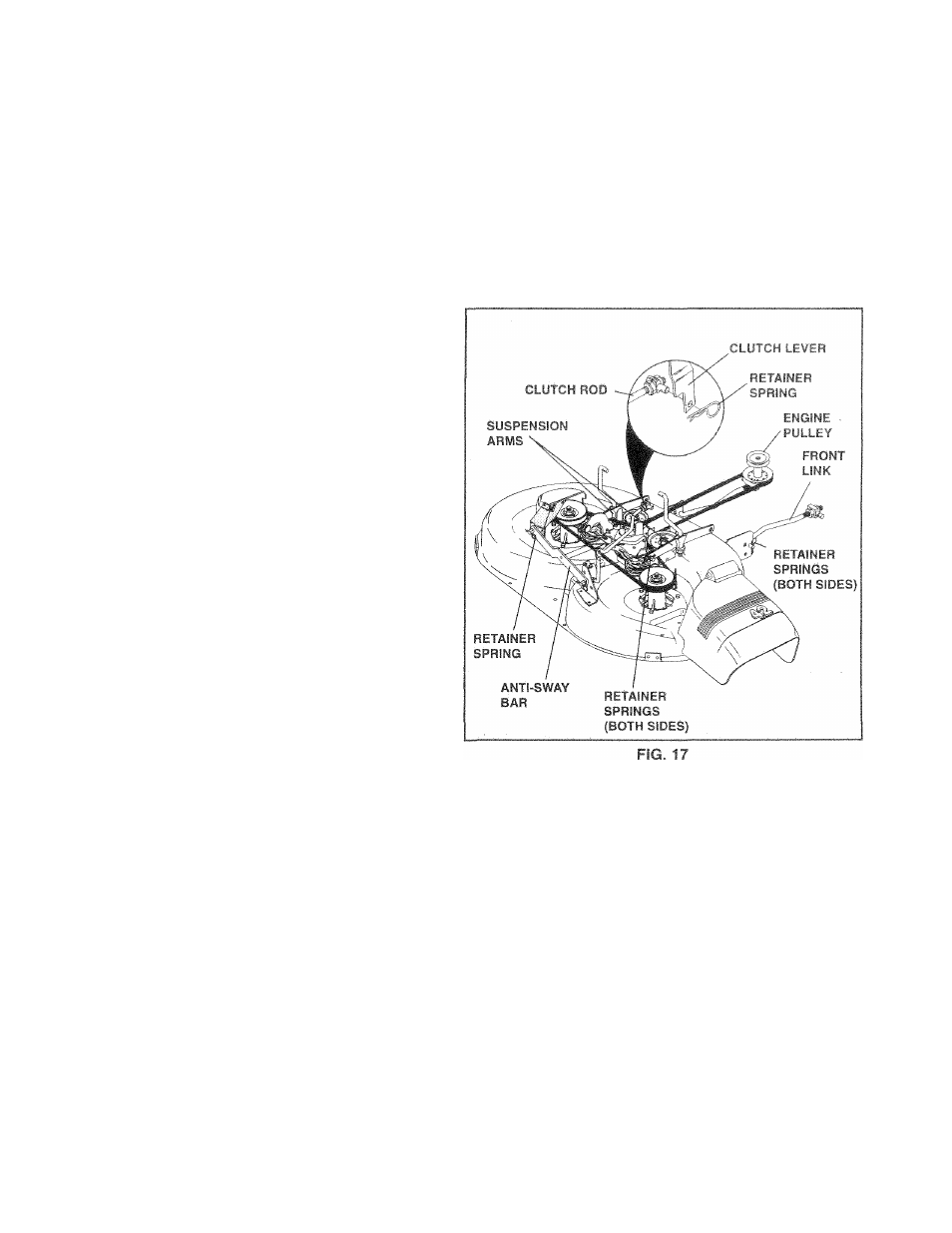

fO
remove
mower
(See Fig. 17)
Mower will be easier to remove from the right side of trac
tor.
Place attachment clutch in “DISENGAGED” position.
Move attachment lift lever forward to lower mower to
its lowest position.
Roll
belt off engine pulley.
Disconnect clutch rod from clutch lever by removing
retainer spring.
Disconnect anti-sway bar from chassis bracket by re
moving retainer spring.
Disconnect suspension arms from rear deck brackets
by removing retainer springs.
Disconnect front links from deck by removing retainer
springs.
Raise lift lever to raise suspension arms. Slide mower
out from under tractor.
IMPORTANT: IF AN ATTACHMENT OTHER THAN THE
MOWER DECK IS TO BE MOUNTED ON THE TRACTOR,
REMOVE THE FRONT LINKS.
TO INSTALL MOWER (See Fig. 17)
•
Raise attachment lift lever to its highest position.
•
Slide mower under tractor with discharge guard to
right side of tractor.
•
Lower lift lever to its lowest position.
® Install mower in reverse order of removal instructions.
19
