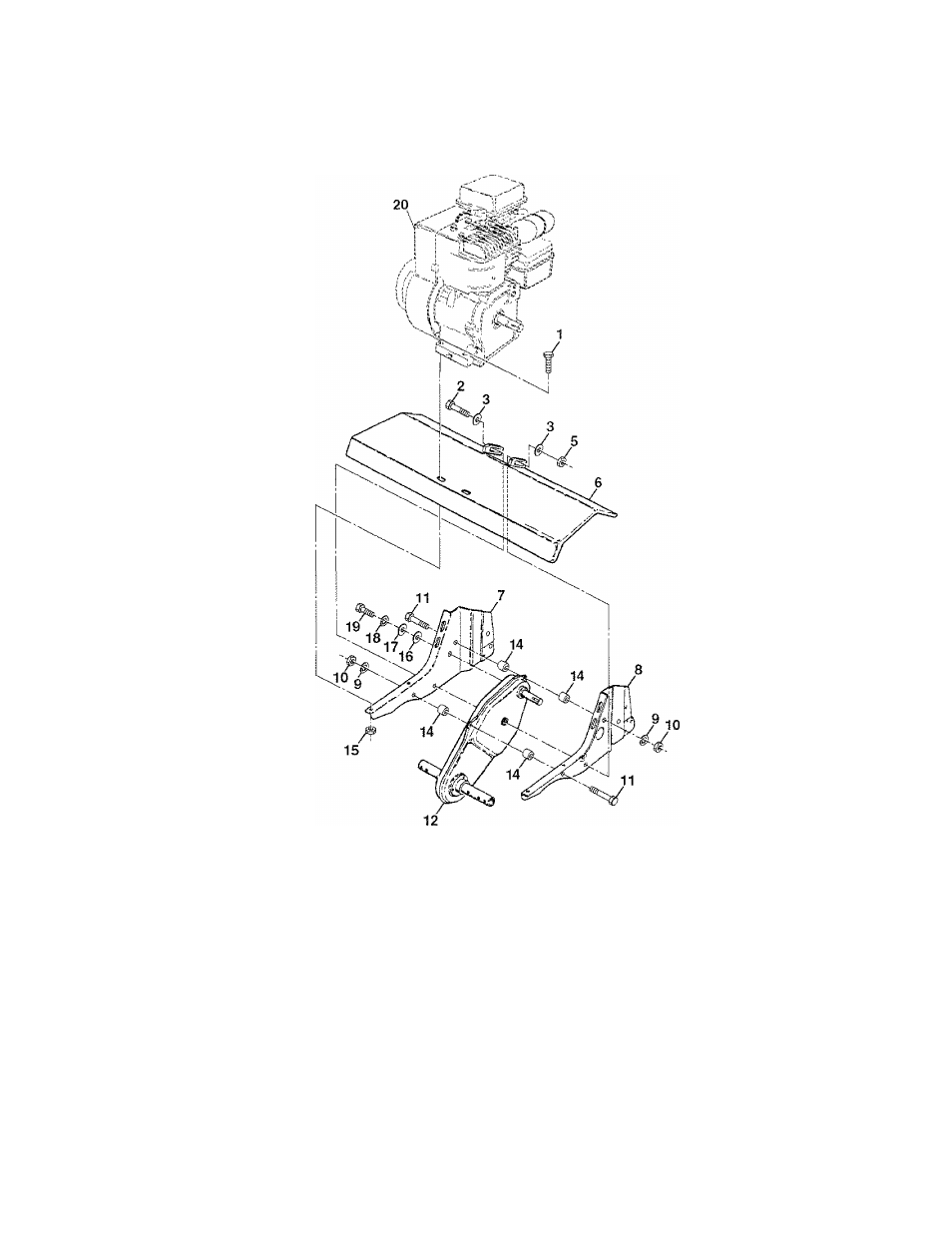

REPAIR PARTS
TRANSMISSION
TILLER - - MODEL NUMBER HDF550J
KEY
PART
KEY
PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
74760524
Boit, Hex 5/16-18x1-1/2Gr. 2
14
9173R
Spacer, Split
2
74780652
Boit, Hex, Fin 3/8-16 X 3-1/4
15
73510500
Nut, Keps 5/16
3
19131311
Washer 13/32x13/16x11
16
19091412
Washer 9/32 x 7/8 x 12 Ga.
5
73800600
Locknut, Hex, w/washer 3/8-16
17
19092016
Washer 9/32 x 1-1/4 x 16 Ga.
6
9057i=î428
Shield, Tine
18
10040400
Washer, Lock 1/4
7
165835
Bracket, Engine, R.H.
19
74610412
Bolt, Hex 1/4-28 x 3/4 Gr. 5
8
1948J
Bracket, Engine, LH.
20
Engine, Briggs Model 137202
9
10040500
Washer, Lock 5/16
Order parts from engine
10
73220500
Nut, Hex 5/16-18
manufacturer
11
74760544
Boit, Hex 5/16-18x2-3/4
NOTE: Alt component dimensions given in U.S. inc
12
151222
Transmission
1 inch = 25.4 mm
