Models 675, 685 and 689
» ~
,
— - — /
/HITCH PLATE

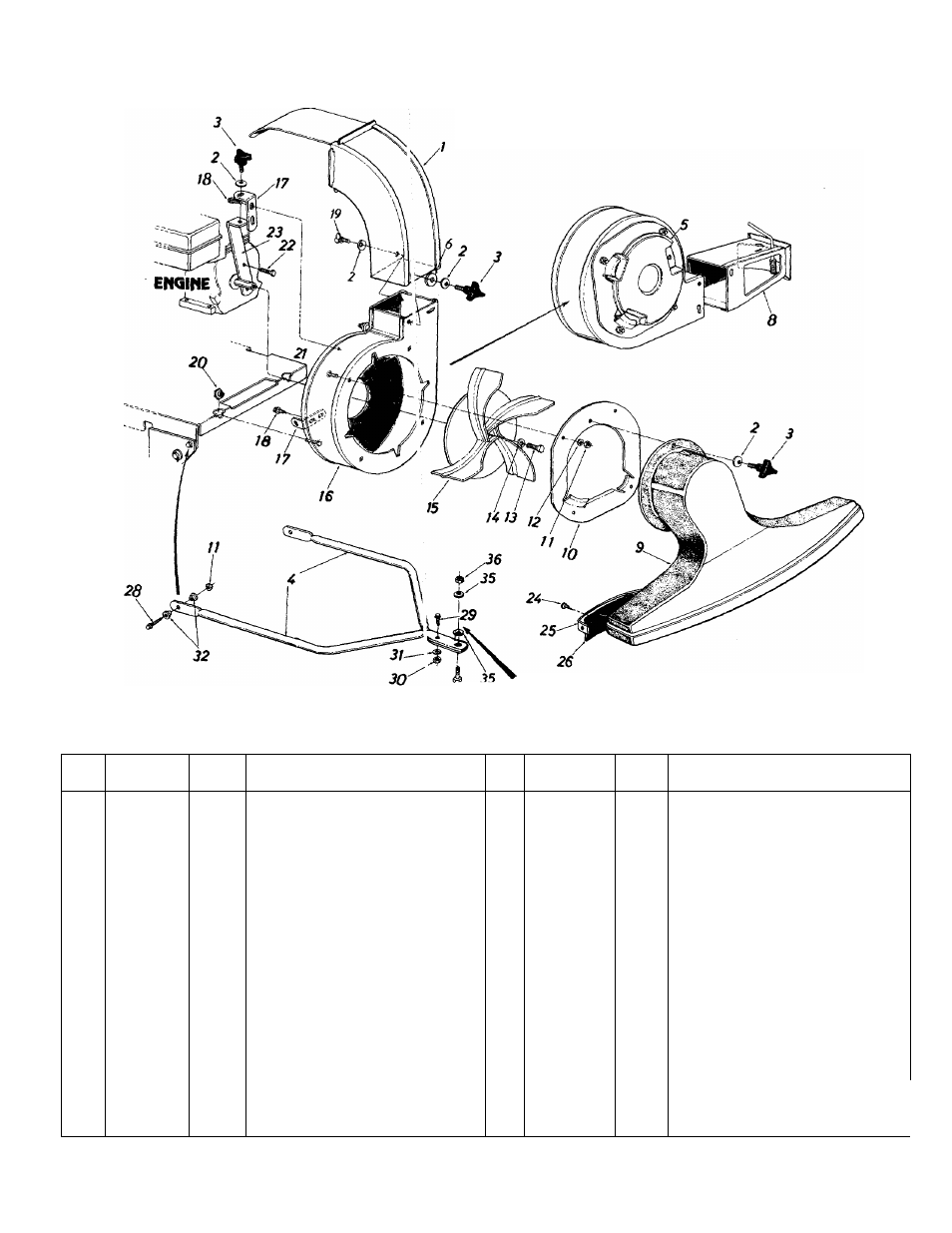

PARTS LIST FOR MODELS 675, 685 AND 689 POWER VACUUMS
REF.
NO.
PART
NO.
CODE
DESCRIPTION
REF.
NO.
PART
NO.
CODE
DESCRIPTION
1
14532
Air Duct Assembly
18
710-0600
Hex Self-Tap Scr. 5/16-18 x
2
736-0242
Belleville Wash. .34" I.D. (
.50" Lg.
.87" O.D.
19
710-1258
N
Thumb Screw 5/16-18
3
720-0170
Hand Knob
20
711-0758
Hex Shoulder Nut .50 I.D.
4
749-0501
Tow Bar Halftt
21
710-0260
Carriage Bolt 5/16-18 x .62"*
5
731-0608
Impeller Guard
22
710-0627
Hex Locking Bolt 5/16-24 x
6
736-0231
FI-Wash. .344" I.D. x 1.12 5" O.D.
.75" Lg.
8
14479
Directional Discharge Ass y.
23
14539
Housing—Engine Brace Ass’y.
9
14562B
Nozzle Ass’y. (Black)
24
728-0173
Pop Rivet (5 Required)
731-1123
Nozzle Ass’y. (Beige)
25
14569
Wiper Retaining Strip
10
14563
Nozzle Plate Ass’y.
26
735-0214
Nozzle Wiper
11
712-0267
Hex Nut 5/16-18 Thd.*
28
710-0602
Hex Bolt 5/16-18 x 1.00" Lg.*|t
12
736-0119
L-Wash. 5/16" I.D.*
29
710-0255
Truss Mach. Scr. 1/4-20 x .75’’tt
13
710-0191
Hex Bolt 3/8-24
X
1.25" Lg *
30
712-0287
Hex Nut 1/4-20 Thd.*tt
14
736-0217
L-Wash. 3/8" I.D. H.D.
31
736-0329
L-Wash. 1/4" I.D.*tt
15
14536
Air Vane Plate Ass’y.
32
748-0234
Shoulder Spacertt
(675 and 677)
34
738-0143
Shid. Bolt .496 Dia.tt
14557A
Air Vane Plate Ass’y. w/Pu ley
35
736-0219
Belleville Wash. .39" I.D. x
(685, 689 and 687)
1.12" O.D.tt
16
14496A
Blower Housing Complete
36
712-0181
Hex Jam L-Nut 3/8-26 Thd.ft
17
14541
Right Angle Bracket
i
ttOptional Parts
