Troy-Bilt 3114GR - Manual (Page 13)

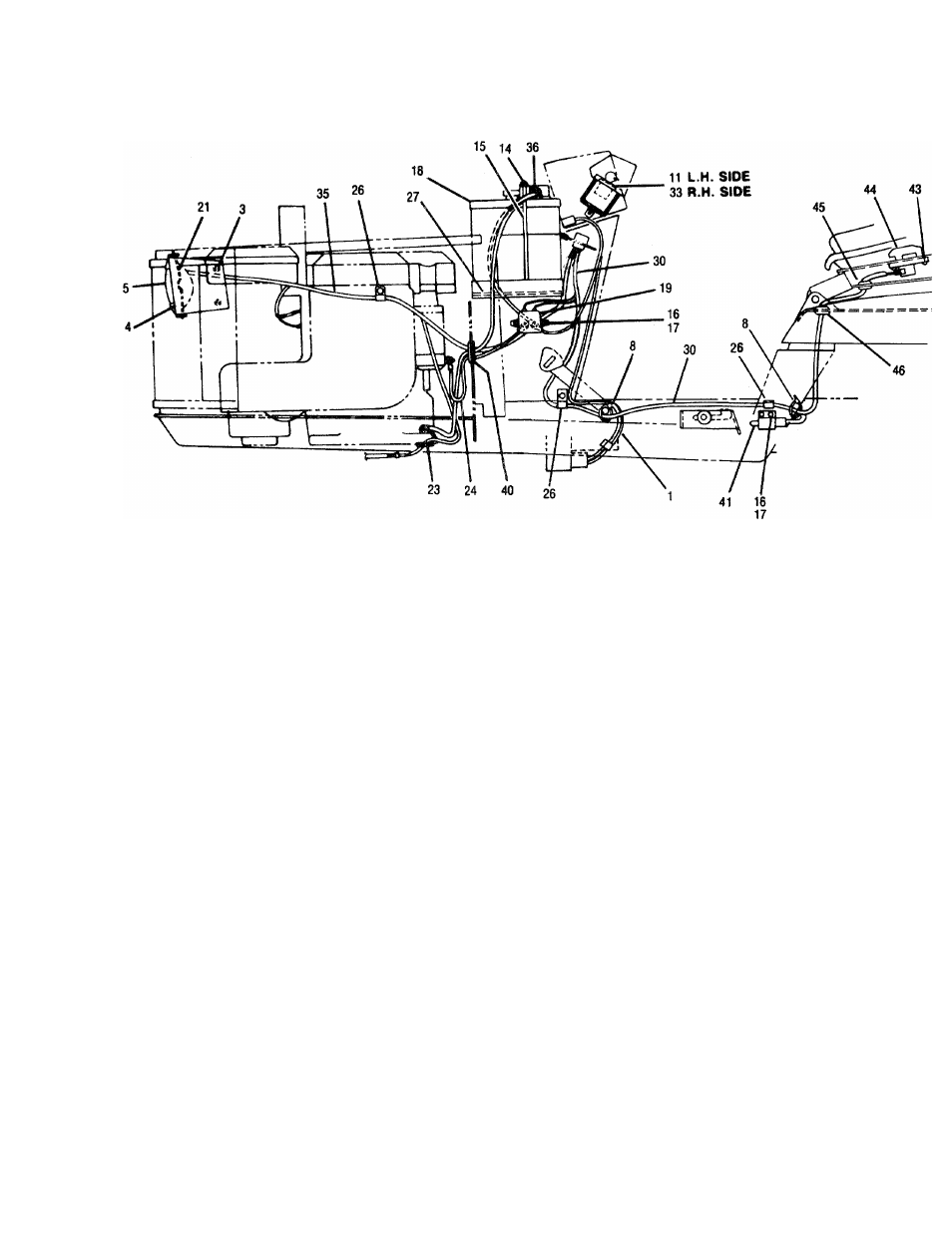

MODELS 3214GR & 3114GR SHOWN
MODELS 3312GR, 3312GRS & 3212GR SIMILAR MODELS 3214GR, 3114GR, 3312GR, 3312GRS & 3212GR
13
REF. PART QTY.
NO. NO. DESCRIPTION REQ.
1 81751088 Harness, Lift. See (A) (C) (D) . 1
2 81756074 8attery Cables (Pos.).................... 1
3 81186389 Flange Lock Nut 1/4-20................. 4
4 81744021ST8 Light Support..................................... 1
5 81726435 Headlight..................................... 2
6 81755616 Diode Ass’y.................................. 1
7 81753874 Switch, El. Lift. See (A) (C) (D) 1
8 81735531 Wire Tie....................................... 5
9 81756075 8attery Cable (Neg.).
See (A) (8) (C)........................... 1
81754220 8attery Cable (Neg.). See (D) 1
10 81756872 Lense.......................................... 1
11 81754550 Hour Meter (Optional).................. 1
12 • Hex Nut 1/4-20............................. 2
13 • Flat Washer 1/4 ........................... 2
14 81734398 Hex Lock Nut 1/4-20..................... 3
15 81752586 J-8olt........................................... 2
16 • Phil. Hd. Screw #10-24 x 5/8 . 4
17 81185985 Nut #10-24.................................. 4
18 81752840 8attery........................................ 1
19 81752137 Solenoid...................................... 1
20 81750963 Screw 6-32 X 1/2.......................... 4
21 81744022 Retainer....................................... 2
22 • Hex Nut 5/16-18.......................... 1
23 81748014 Grommet..................................... 1
24 81722081 Starter Cable. See (A) (C) . . . 1
81741506 Starter Cable. See (8)................... 1
81752841 Starter Cable. See (D).................. 1
• Common Hardware — Purchase Locally
(Specify Grade 5 for screws and bolts)
REF.
NO.
PART
NO. DESCRIPTION
QTY.
REQ.
25 81752134 Console Wiring Harness ... . 1
26 81747738 J-Clip....................................... 3
27 81756630 Rubber Pad.............................. 1
28 • Lock Washer ............................... 2
29 • Screw 1/4-20 x 5/8....................... 2
30 81756076 Interlock Harness...................... 1
31 81754608 PTO Switch............................... 1
32 81754856 Light Switch.............................. 1
33 81754250 Ignition Switch.......................... 1
34 81753986 Ignition Key ................................ 2
35 81752136 Harness, Engine. See (A) ( C ) . 1
81752908 Harness, Engine. See (8) ... 1
81758466 Harness, Engine. See (D) ... 1
36 81755802 Cover....................................... 1
37 81751572 8ulb......................................... 3
38 81186020 Thd. Cut Screw 6-32 x 3/8 . . . 1
39 81743516 Replacement Fuse, 30A............. 1
40 81752809 Grommet.................................. 1
41 81751328 Switch, Interlock....................... 1
42 81747353 Harness, El. Lift. See (A) (C) (D) 1
43 81755349 Pan Hd. Screw 1/4-20 x 1/2 . . 2
44 81752506 Switch ........................................ 1
45 81755487 Grommet.................................. 1
46 81754934 Grommet.................................. 1
(A) Tractor Model 3114GR
(B) Tractor Models 3312GR, 3312GRS, & 3212GR
(C) Tractor Model 3214GR (Serial No. B030100101-B030199999)
(D) Tractor Model 3214GR (Serial No. B030200101-B030299999)
13
