MODELS 12155 and 12163 TUFFY® TILLER

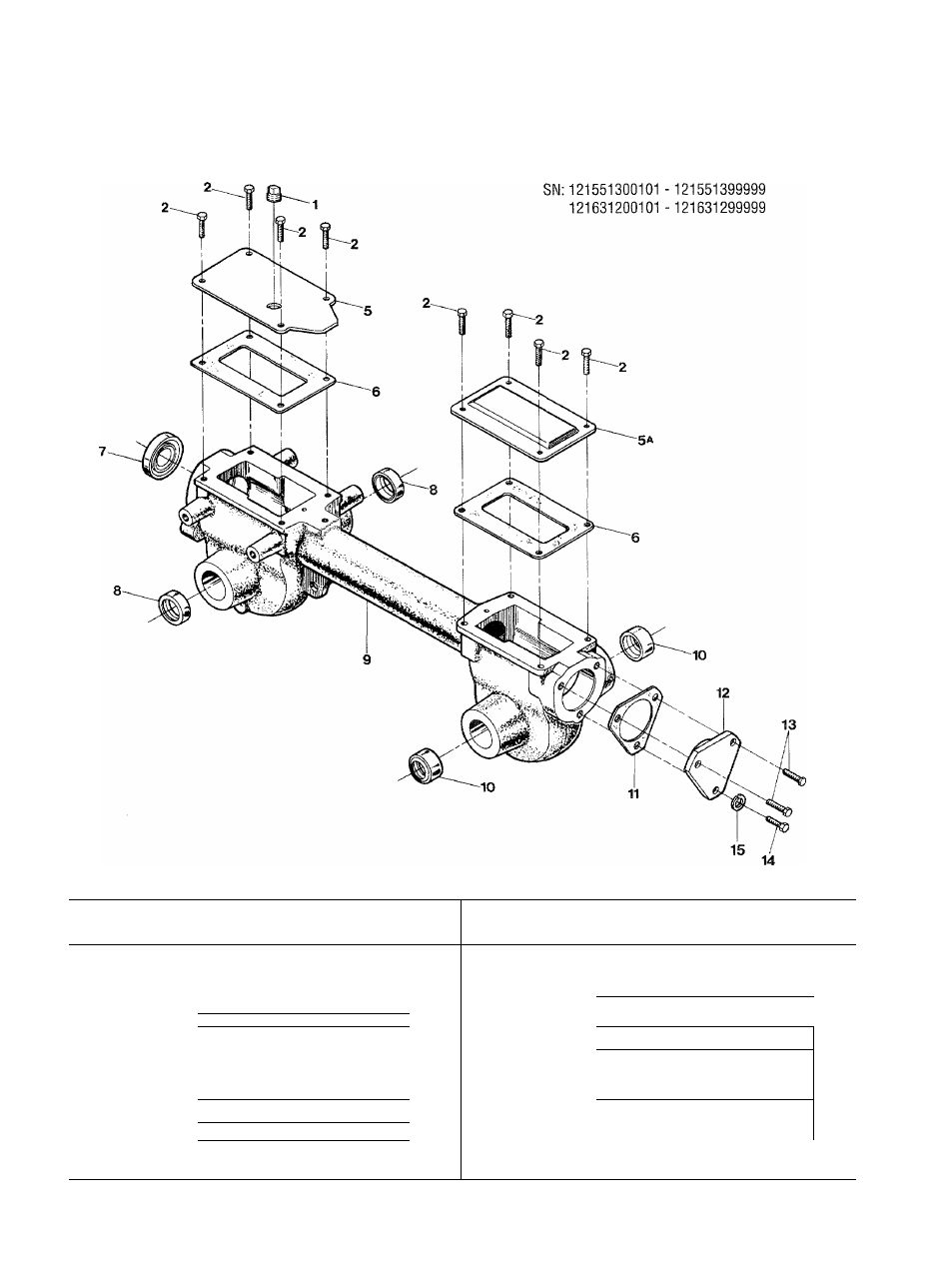

TRANSMISSION HOUSING, COVERS, SEALS, GASKETS, AND PLUG
REF
No. PART
No. DESCRIPTION QTY.
REF
No. PART
No. DESCRIPTION QTY.
1 9727 Plug-Transmission Oil Fill/Check. 1 9 1915084010 Transmission Case, Rear Housing
2 1186328 Bolt-Hex Hd., Flange Lock, and Tube Assembly (A)................ 1
5/16-18x5/8", GR5....................... 8 1915084021 Transmission Case, Rear Housing
5 1916641001 Onver-Trans Housing Front................ 1 and Tube Assembly (B)................ 1
5A 50074 Cover-Trans. Housing, Rear (A).„ 1 10 1909374 Oil Seal-Tine Shaft........................... 2
1902186021 Cover-Trans. Housing, Rear (B)... 1 11 55011-1 Gasket-Bearing Cap (.010“ thick). 1
6 50032 Gasket-Transmission Housing Cover 55011-2 Gasket-Bearing Cap (.030" thick).. 1
(Front and Rear) ......................... 2 12 1916111001 Cap-Rear Bearing ........................... 1
7 9617 Oil Seal-Drive Shaft........................ 1 13 1186331 Bolt-Flanged Hd.“ 5/16-18x1" .... 2
8 9621 Oil Seal-Wheel Shaft...................... 2 14 1100044 Boit-Flanged Hd., 5/16-18 x 3/4".. 1
15 1100242 Lockwasher, 5/16"........................... 1
(A)- Model 12155 (B) - Model 12163 5
