TUFFY® TILLER MODELS 12155 and 12163
SN: 121551300101 - 121551399999
121631200101 - 121631299999

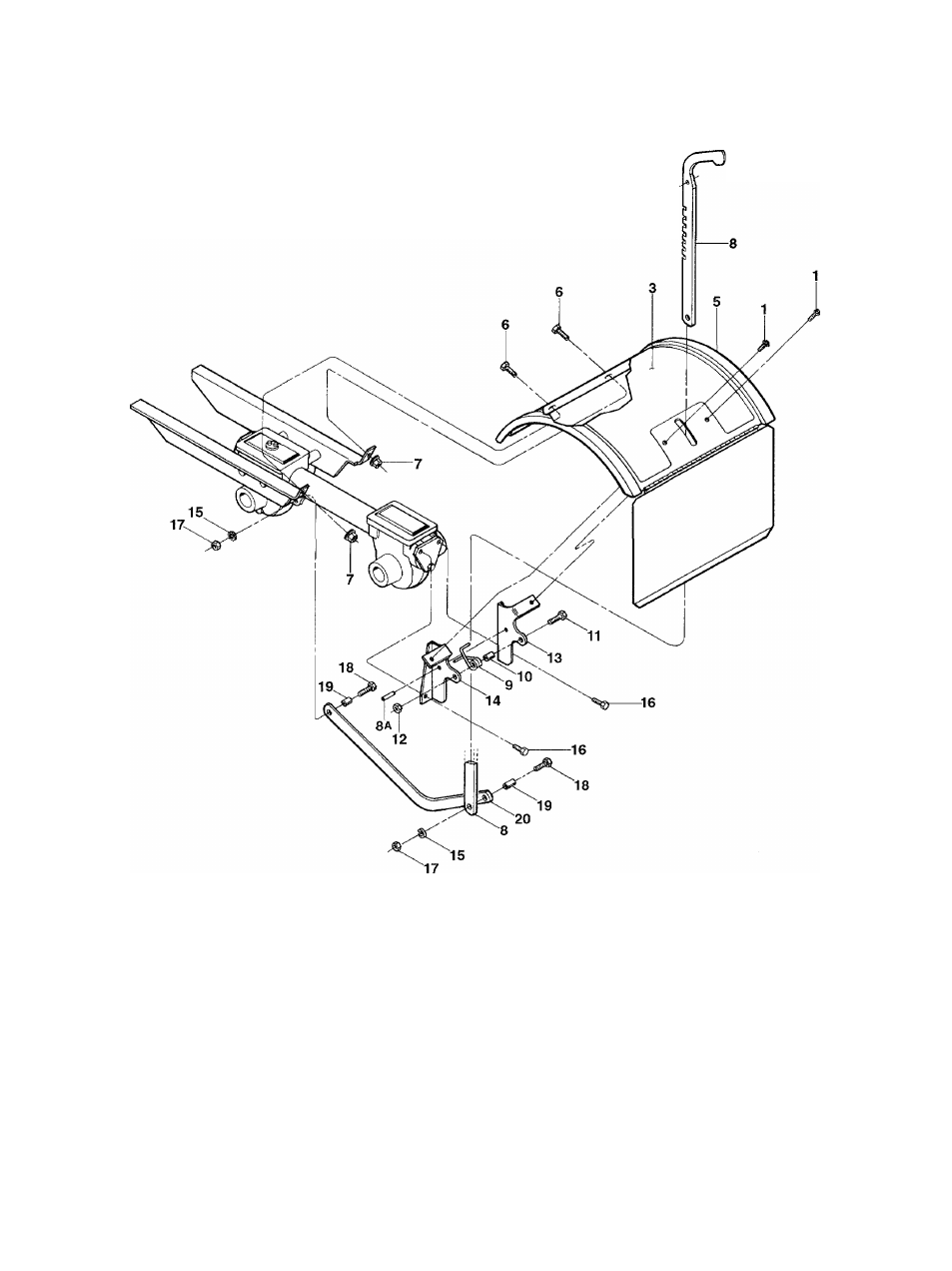

TINE HOOD, DEPTH REGULATOR, AND DRAG BAR
8A----------
REF
No. PART
No. DESCRIPTION QTY.
6
7
8
8A
9
9552
1904547
1916436
1904572
1916440
1100088
1186391
1916118001
9308
9384
Bolt-FI.Hd., Self-Tap, 1/4-20x1/2" 2
Decal-Hood (A).................................. 1
Decal-Hood (B).................................. 1
Tine Hood-Includes tine flap............
and Ref. No. 3. (A).......................... 1
Tine Hood-Includes tine flap............
and Ref. No. 3. (B)......................... 1
Bolt-Hex Hd., 5/16-18x1/2"................. 2
Nut-Flange Lock, 5/16-18................... 2
Depth Regulator Lever....................... 1
Spirol Pin............................................ 2
Spring-Depth Regulator..................... 1
(A)-Model 12155
REF PART
No. No. DESCRIPTION QTY.
10 9534 Spacer................................................ 1
11 1100069 Bolt-Hex Hd., 1/4-20x1"...................... 1
12 9811 Locknut-Hex Hd., 1/4-20..................... 1
13 1916119001 Bracket-Hood, Right Hand............... 1
14 1916120001 Bracket-Hood, Left Hand.................. 1
15 11000242 Lockwasher, 5/16"............................... 2
16 1186331 Bolt-Flanged Hd., 5/16-18 X1" .... 2
17 1186230 Nut-Hex Hd., 5/16-18.......................... 2
18 1100808 Bolt-Hex Hd., 5/16-18x1-1/4"........... 2
19 55088 Bushing-Drag Bar................................ 2
20 1916121001 Drag Bar............................................. 1
10 (B)-Model 12163
