MODELS 13123 & 13104

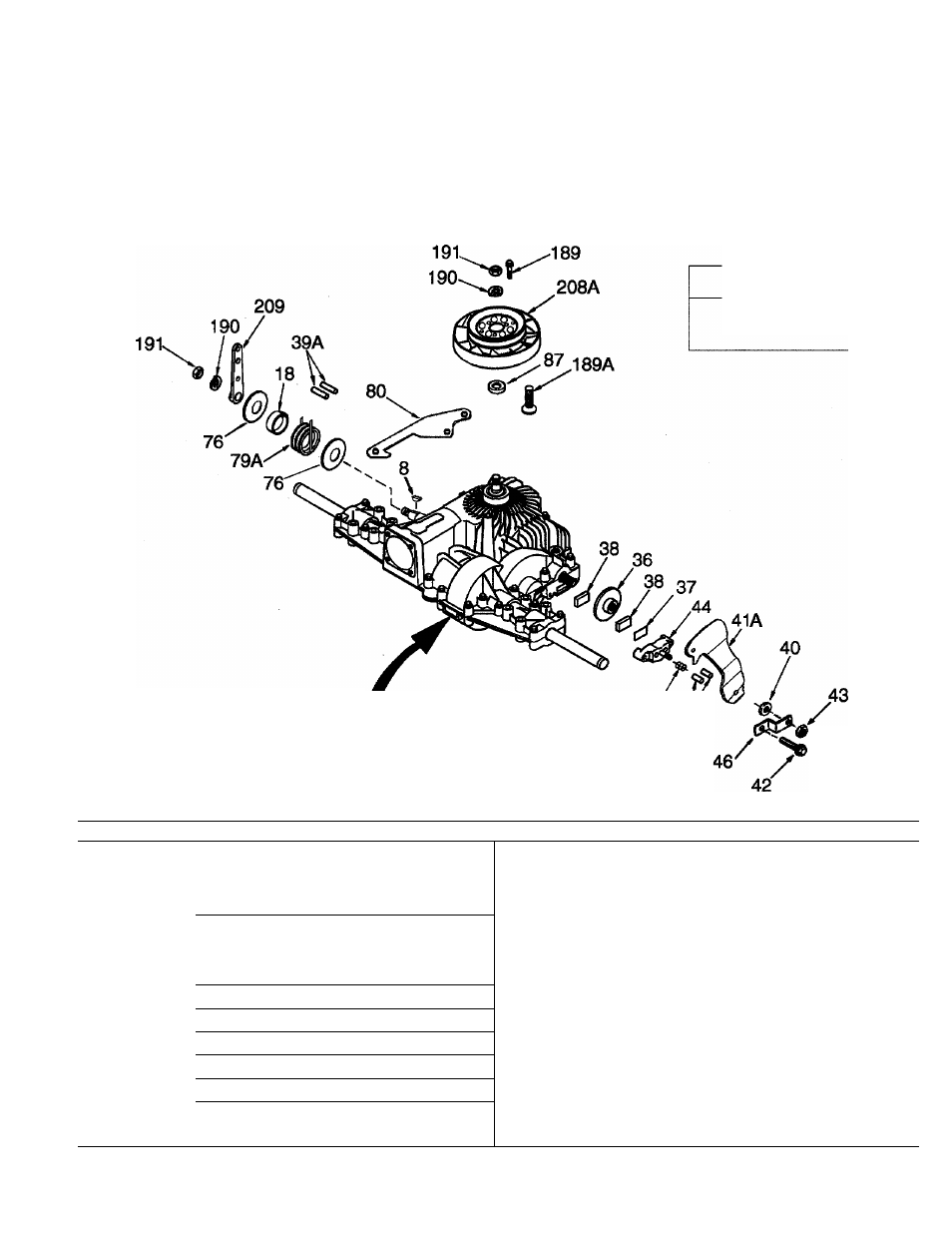

PEERLESS VST 205 HYDRO TRANSMISSION BREAKDOWN
S/N 13123130101—13123139999
13104120101—13104129999
Purchase transmission parts from your Tecumseh/Peeriess deaier.
Refer to iliustration for modei/seriai number location.
Use 20 wt. Motor Oil
Garden Way part number
1768598
MODEL and SERIAL
NUMBERS HERE
79
¡/
39
Ref. Part Description Qty. Ref. Part Description Qty.
8 792175 Woodniff Key............................. ............ 1 76 792174 Hat Washer................................. ........... 2
18 786173 Spacer...................................... ............ 1 79 792144 Spring........................................ ........... 1
86 790075 Brake Disk................................ ............ 1 79A 798027 Neutral Retirn Sprbig................... ........... 1
37 790007 Brake Pad Plate........................ ............ 1 80 798030 Control Lever Stop...................... ........... 1
38 799021 Brake Pad (pkg of 2)............................... 2 87 788035 Oil Seal 5/8.................................. ........... 1
39 780026 Dowel Pin................................. ............ 2 188 792188 №ive Screw #6 x 1/2.................... ........... 3
39A 786174 Dowel Pin................................. ............ 2 189A 792171 Screw 10-24 X1/2......................... ........... 3
40 792076A Flat Washer.............................. ............ 1 190 792150 Lock washer............................... ........... 2
41A 7M081 Brake Lever.............................. ............ 1 191 792151 Nut 7/16-20.................................. ........... 2
42 792073 Screw 1/4-20 X1-1/4................... ............ 2 208A 798031 Fan/Coupling Assy 2WS
43 792075 Locknut 5/16-24........................ ............ 1 (Incl. Ref. 189 & 189A)..................
1
44 790025 Brake Pad Holder...................... ............ 1 209 798024 Gontriri Lever.............................. ........... 1
46 780086 Brake Lever Bracket.................. ............ 1
