INSTRUCTIONS FOR ORDERING
Tn onJering from this list, use ONLY the part NUMBER
in the FIRST column.
'J'he number stamped on a Sewing Machine part is in every
case the nuinber of the, single part only. '
Every combination of parts sent out as such has its specific
number, which, although not stamped on the parts, must be
used when ordering the combination.
Fjach numb(;r always indicates the SAME PART in whatever
list it appears, or for u'hatever machine.
The letters after some of the numbers indicate the style of
finish only, as follows;
A—Hardened, Polished, Nickel Plated and Buffed
B—Polished, Nickel Plated and Buffed
C—Hardened Only
D—Polisiied Only
E—Soft, Not 1‘olished
F—Hardened and I’olished
IU~Blucd
,U -Nickel Plaled Only
K—Hardened and Nickel Plated
L—Brass Plated
M—Oxidized
P—.lapanned
R—Merlized
T—Copjier Plated
T. A.—Hardened, Polished, Copper and Nickel Plated
and Buffed.^
T. B.—Copper and Nickel Plated and Polished.
T. ,1.—Co))|ier and Nickid Plated Only.
T. K.—Hardened, Copper and Nickel Plated,
T. M.—Copper Plaled and O.xidized.
T. L,—Copper and Brass Plaled.
U—Zyic Plated
V—Silver Plaled
W—Polished and Nickel Plated
Z—Chromium Plated
These letters MUST BE USED when they appear in the list;
and AFTER the number as in the list.
In this series;
1 to 1500 and 50001 to 51500 are Screw Numbers.
1501 to 1800 and 51501 to 51800 are Nut Numbers.
1801 to 2000 and 51801 to 52000 are Roller Numbers.
2001 to 50000 and 52001 and upward are numbers of
Machine Parts.
The, figures in tin; second column refer only to the plates,
illustiatiiig the parts, ami are NOT TO BE USED in ordering.
Parts marked with an asterisk (*) are furnished only when
repairs are made at factory.
When ordering parts wliich differ as to Gauge (the distance
between seams) theOauge, as well as the Number must be
given on order.
LIST OF PARTS COMPLETE
FOR
E62fifi

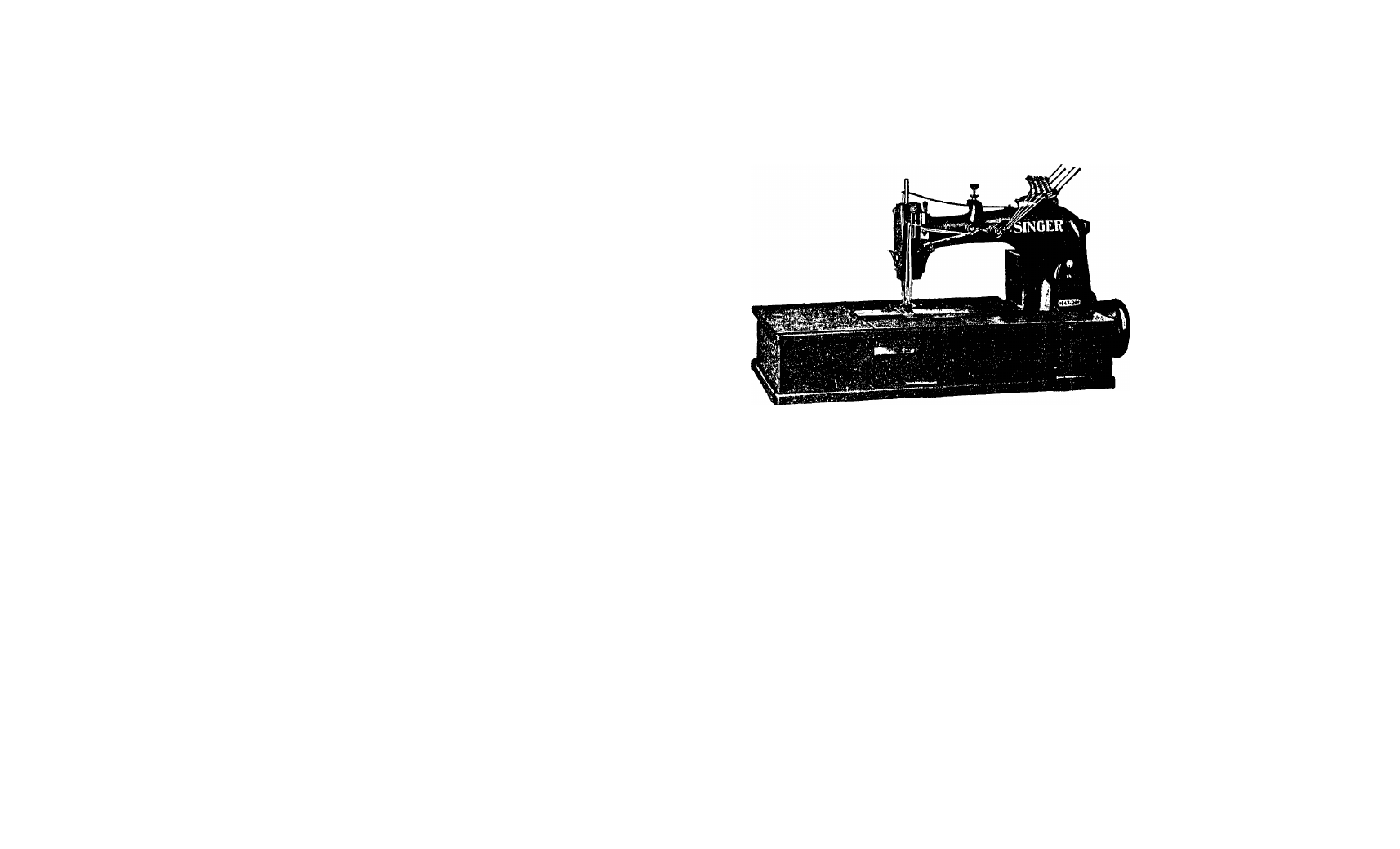

MACHINE No. 147-24
FOR FOUR LINE SHOE TIPPING; ALSO FOR EYELET ROW
STITCHING. FOUR NEEDLES, TWO LOOPERS. BY REMOVING
ONE OR MORE NEEDLES, TWO OR THREE LINE STITCHING
CAN BE OBTAINED. GAUGES BETWEEN THE FIRST AND
SECOND AND BETWEEN THE THIRD AND FOURTH NEEDLES
3 ', to s-i INCH AND BETWEEN THE SECOND AND THIRD
NEEDLES pg TO M INCH. SPEED UP TO 3200.
NO. I’l.ATE
'54182 —
42366 8901
56006 8901
5()003 8985
29599 8901
54183 8987
54192 —
61386 8901
NAME
.Arm, ujiirer and lower (solid) with 948n
and 5-10;H......................................................
,‘\nn Oil Pad (braided cotton) for oiling
.Arm Hock Shaft Front Bearing......................
Ann Oil I’ad (braided cotton) for oiling
Arm Rock Shaft Intermediate Bearing
Arm Oil Tube with 29599, for oiling 5432(3
“ “ “ Packing (felt)................................
“ Rock Shaft.....................................................
“
“ “ 54183 with 46383,540(M,
,54184 and 64255............................................
Ann Rock Shaft Bushing (back).........................
