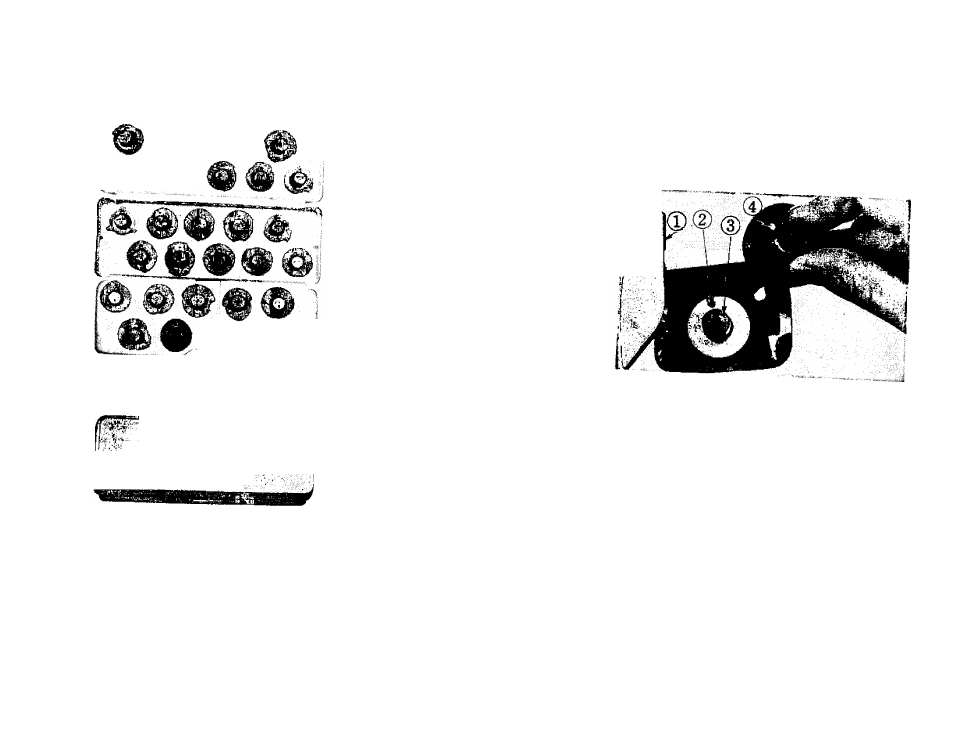

Pattern Cam and box

PLACING OF PATTERN CAM FOR

EMBROIDERY SEWING

1) Use regular zigzag pressure

r '

foot and needle plate.

I

2) Open the cam cover lid (f). ^

Fig. 20.

! ■ '

3) Set S.S lever to "M" position.

4) Turn Z.B dial to position 5

this permits the insertion of

cam on to the spindle (

3

).

Revolve cam, pressing down

slightly until hole in bottom surface is fitted over pin ®,

5) Close cam cover lid and return Z.B dial to "0" position.

6) Set stitch length between O and 1 for effect desired the shorter

the stitch length the greater the density of pattern sewn.

Fig. 20
