INSTRUCTIONS FOR ORDERING
In ordering from this list, >ise ONLY the PART number
in the FIRST column.
The number stamped on a Sewing Machine part is in every
case the number of the single part only.
Every combination of parts sent out as such has its specific
number, which, although not stamped on the parts, must be
used when ordering the combination.
Each number always indicates the S.'VME PART in whatever
list it appears, or for whatever machine.
The letters after some of the numbers indicate the style of
finish only, as follows;
A.
15.
C.
D.
E.
F.
O.
II.
J.
K.
L.
M.
P.
R.
T.
Hardened, Polished and Plated.
Polished and Plated.
Hardened only.
Polished
OTily.
,Soft, not Polished.
Hardened and Polished.
Blued.
Plated only.
Hardened and Plated.
Brass or Gilt.
Oxidized.
Japanned.
Parkerized.
Copper-plated.
These letters MUST BE USED when they appear in the list,
and AFTER tlie number as in the list.
In this series:
1 to 1.500 and 50001 to 51500 are Screw Numbers.
1501 to 1800 are Nut Numbers.
1801 to 2000 are Roller Numbers.
2001 to 50000 and 52001 and u{)ward are numbers of
Machine Parts.
The figures in the second column refer only to the plates,
illustrating the parts, and are NOT TO BE USED in ordering.
Parts marked with an asterisk (*) are furnished only when
repairs are made at factory.
LIST OF PARTS COMPLETE
FOR

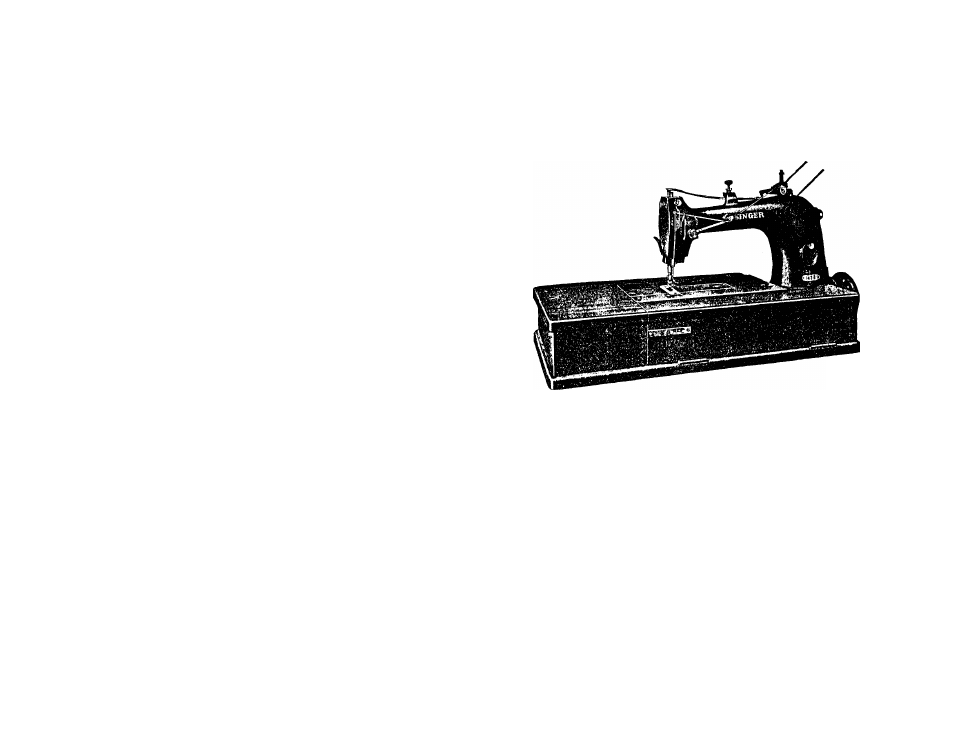

MACHINE No. 147-1
FOR GENERAL WORK IN FABRICS; ALSO FOR CLOSING
LININGS AND STITCHING THE TOP FACING ON SHOES.
ONE NEEDLE, ONE LOOPED, FOR TWO-THREAD CHAIN
STITCH, FOOT LIFTER.
NO. I'L.-\TK
NAME
*51001 ------ ,'Vrm, upper and lower (solid) with 948
d
and 54034........................................................
42360 8901 Arm Oil Pad (braided cotton) for oiling
Arm Rock Shaft Front Bearing...................
56006 8901 Arm Oil Pad (braided cotton) for oiling
Arm Rock Shaft Intermediate Bearing
11119 8901 Arm Oil Tube with 29599, for oiling 64321
29599 8901
“
“
“ Packing (felt)...............................
54002 8902
“ Rock Shaft....................................................
64386 8901
“
“
“
Bushing (back)..
446c 8901
“
“
“
“ “ Set Screw
64388 8901
“
“
“
“ (intermediate).
423c 8901
“
“
“
“
“ Set
Screw....................................................
