Instructions for Installation (cont'd)
Converting the Lower Element
(cont'd)
1. Before beginning the conversion turn “OFF” electric
power supply to the water heater.
lot:
111
AWARNING
HAZARD OF ELECTRICAL SHOCK! Before removing
any access panels or servicing the water heater,
make sure the electrical supply to the water heater
is turned "OFF". FAILURE TO DO THIS COULD
RESULT IN DEATH, SERIOUS BODILY INJURY, OR
PROPERTY DAMAGE.

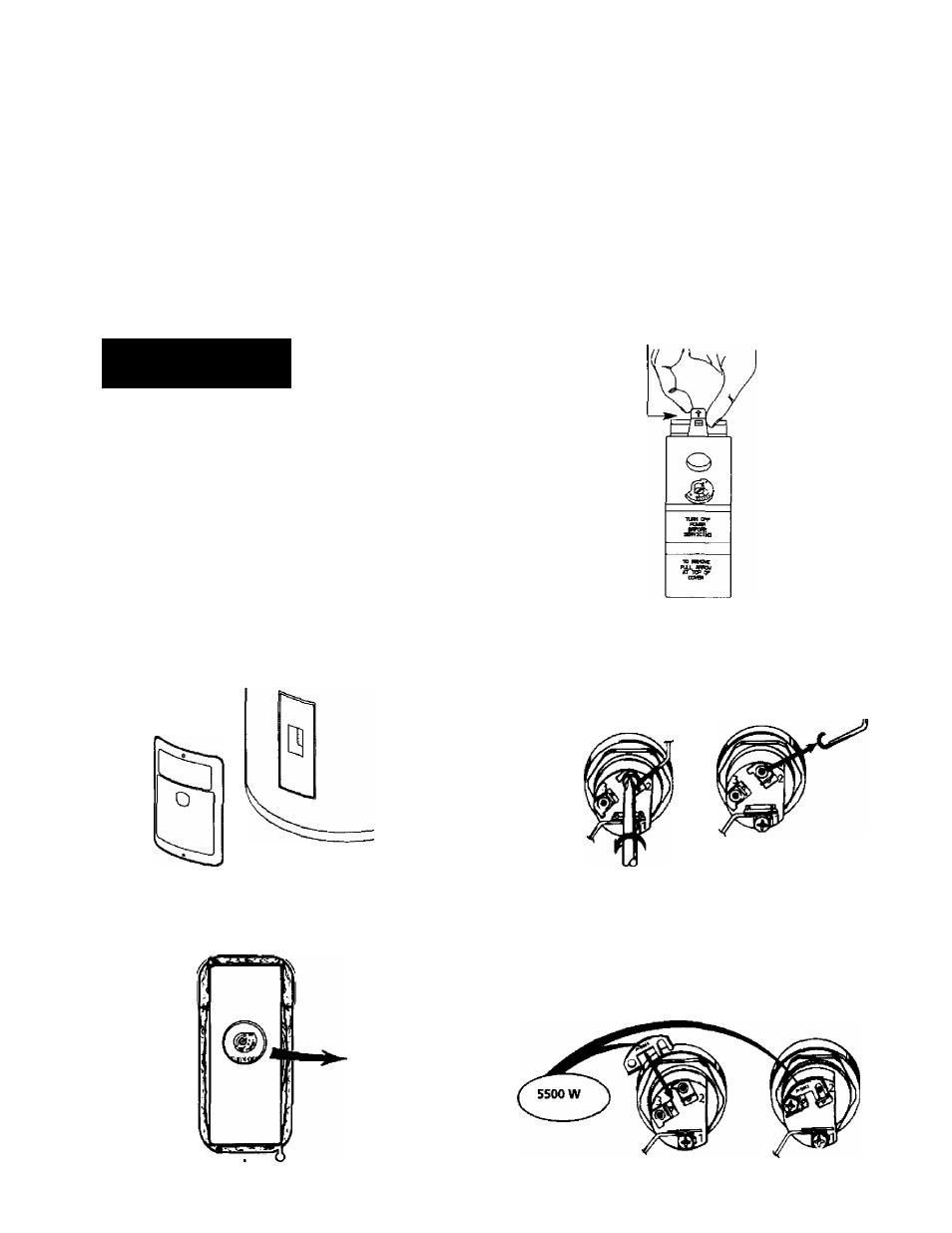

2. The convertible element is located behind the lower access
panel of the water heater. Remove the two screws securing
the access panel, and remove panel.
4. Lift out the tab as shown to unclip the terminal cover from
the thermostat. The terminal cover can now be removed from
the thermostat.
Lift out tab to undip
terminal cover from
thermostat.
5. Remove the screws from terminal 2 of the element, and
move the looped end of the wire aside.
3. Remove the block of insulation to expose the terminal
cover.
6. The buss bar is labeled 5500 W. Place the buss bar over ter
minals
2 and 3 with the 5500 W visible. Install the extra
screw provided into terminal 3.
