Instructions for Installation (cont'd)
Water Piping
AWARNING
HOTTER WATER CAN SCALD: Water heaters are
intended to produce hot water. Water heated to a
temperature which will satisfy clothes washing,
dish washing, and other sanitizing needs can scald
and permanently injure you upon contact. Some
S
eople are more likely to be permanently injured by
ot water than others. These include the elderly,
children, the infirm, or physically/mentally handi
capped. If anyone using hot water in your home fits
into one of these groups or if there is a local code or
state law requiring a certain temperature water at
the hot water tap, then you must take special pre
cautions. In addition to usin^ the lowest possible
temperature setting that satisfies your hot water
needs, a means such as a mixing valve, should be
used at the hot water taps used by these propte or
at the water heater. Mixing valves are available at
plumbing supply or hardware stores. Follow manu
facturers instructions for installation of the valves.
Before changing the factory setting on the thermo
stat, read the temperature Regulation" section in
this manual.
2. Look at the top cover of the water heater. The cold water
inlet is marked cold. Connect the cold water pipe to the
cold water inlet of the water heater.
NOTE: Your water heater is super insulated to minimize
heat loss from the tank. Further reduction in heat loss can
be accomplished by insulating the hot water lines from the
water heater.
HOT OUTLET TO
HOUSE
SHUT-OFF
VALVE
If a water heater is installed in a closed water supply system; such
as one having a back-flow preventer, check valve, water meter
with a check valve, etc, in the cold water supply; means shall be
provided to control thermal expansion. Contact the local utility
or call Maytag Customer Service at 1-800-788-8899 for an
authorized servicer on how to control this situation.
NOTE: To protect against untimely corrosion of hot and
cold water fittings, it is strongly recommended that di-elec
tric unions or couplings he installed on this water heater
when connected to copper pipe.
NOTE: The secondary anode rod/hot outlet nipple and the
cold inlet nipple are packaged separately with the water
heater. The above parts must be installed in the appropriate
HOT and COLD water connection locations.

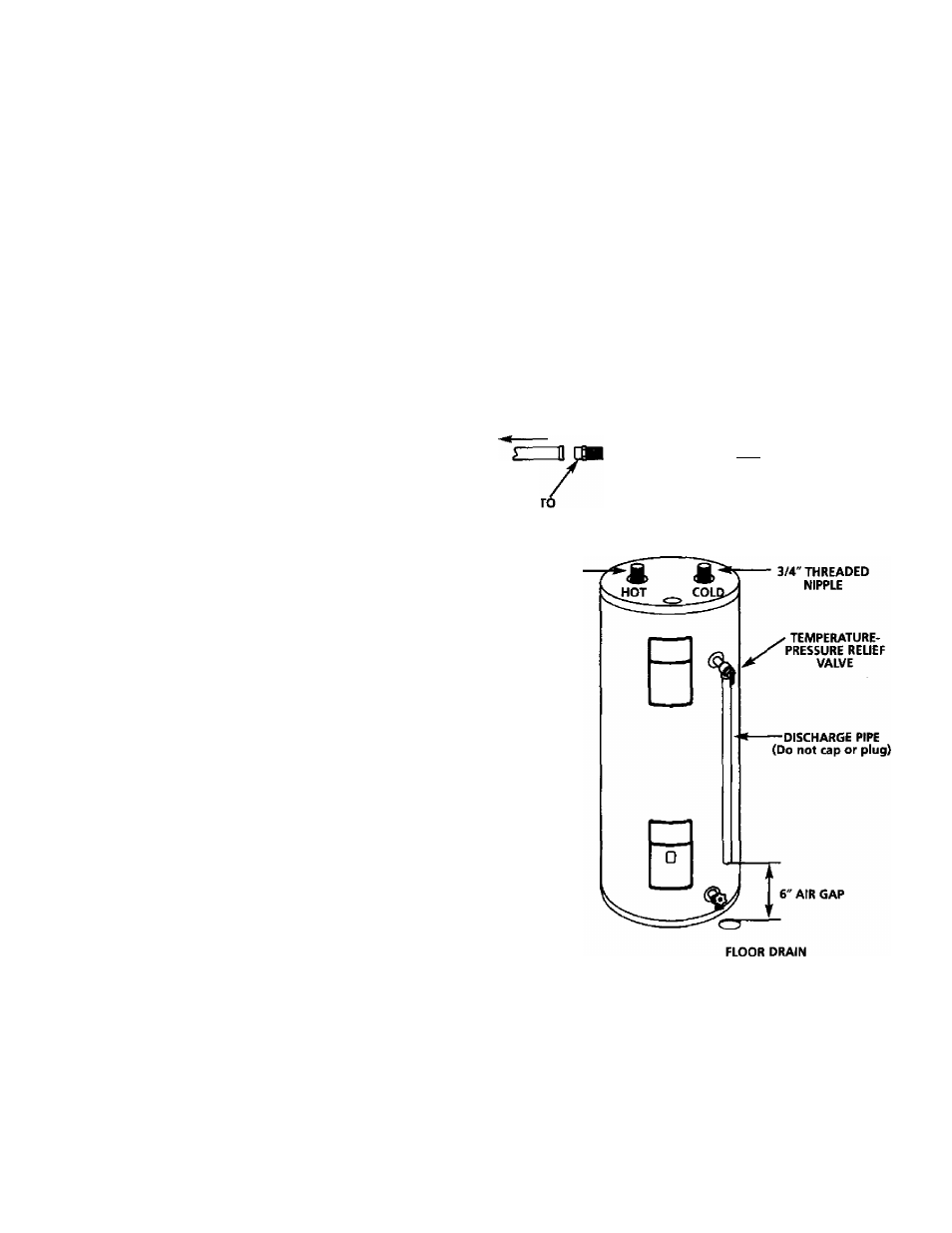

The illustration shows the attachment of the water piping to
the water heater. The water heater is equipped with V
4 inch
water connections.
THREADED
SWEAT COUPLING
3/4" THREADED
NIPPLE
a
mr\
COLD INLET
WATER LINE
^---------
\
THREADED TO
SWEAT COUPLING
NOTE: If using copper tubing, solder tubing to an adapter
before attaching the adaptor to the cold water inlet connec
tion. Do not solder the cold water supply line directly to the
cold water inlet. It vnll harm the dip tube and damage the
tank.
1. Look at the top cover of the water heater. The water outlet
is marked hot. Connect the hot water pipe to the hot water
outlet of the water heater.
