SINGER WRotary (Book 10) - Manual (Page 12)

No.
802
SOi
807
80S
^809
Í813
*814
815
820
821
822
823
824
82G
827
S2S
829
S.30
831
832
833
834
835
836
837
838
Price
Strew to locate needle bar block 782 02
Screw to clamp shuttle race 730 anti
to take up rear bearing of shuttle
shaft 808 ......................................................... 02
Gauge ...................:.......................................... 05
Shuttle shaft driver and thread cast
off complete................................................... 1 00
Screw to adjust auxiliary spring 7S6 02
Bed .................................................................... 2 75
Arm .................................................................... 2 73
Pace .................................................................. 1 23
Screw to fasten tension Indicator
355 to 813.......................................................... 02
Washer on auxiliary spring 7 8 6 . . . . 01
Washer under latch S39 ........................................ 01
Stud for lower end of main connec-
aon 747 ............................................................. 03
Screw to fasten crank 746 on rear
end of shuttle shaft SOS and to
fetén S42 in arm................................................. 03
Plate for 725 ........ ................................................ 02
Sirort rivet for S26................................................ 05
Long rivet for 826 ................................................ 02
Screw to fasten hed to arm .............................. 02
Hand hole cover
complete ............................ 1 00
Lfltoh for cover 830.............................................. 20
Spring for latch 831 .............................................. 03
Catch on lower end of face to retain
cover 830 when raised ..................................... 03
Shuttle race cover .............................................. 1 00
Shuttlé .............................................................. 1 50
Bobbin case complete ........................................... 60
Bobbin case tension spring . . . . . . . . 07
Bobbin case tension screw' ................................... 02
No.
So9
840
841
842
843
*84, .5
846
847
848
852
*8 5 3
855
Price
Latch to retain bobbin ease 8 3 6 . . . . 10
Auxiliary cam .................................................. ' 05
Feed fork and stud complete............................ 3.5
Bearing for feed fork stud................................ 15
Screw in end of feed fork stud . . . . 05
Loose pulley on hand wheel ............................ SO
Wire retainer for 845 ....................................... - 06
ffhumb screw in hand wheel............................ OS
Ijock washer for 847...... .................................. 02
Screw to fasten hand wheel toupper shaft 04
Hand wheel...... ........................................... ..... 2 00
Bobbin winder center ............. ......................... OT
Numbers preceded by a star (*) are not illustrated

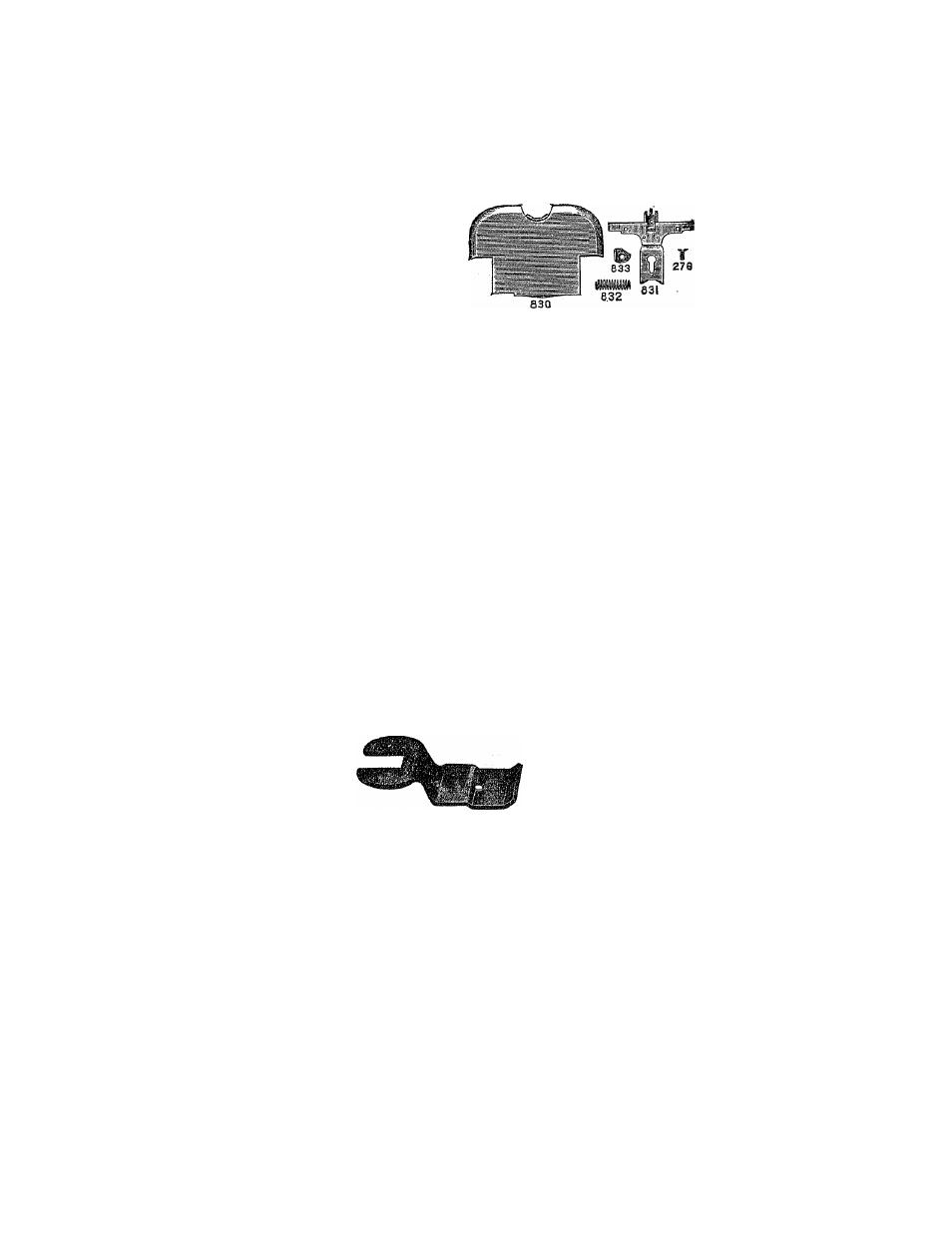

DIRECTIONS FOR USING THE FOOT GATHERER
Remove the presser-foot and replace with the Gathering Foot
TO GATHER, PUFF OR SHIRR
Place the goods under the foot the same as in ordinary sewing.
For fine gather use a short stitch. To increase the fullness lengthen
the stitch. For greater fullness tighten tension.
12
