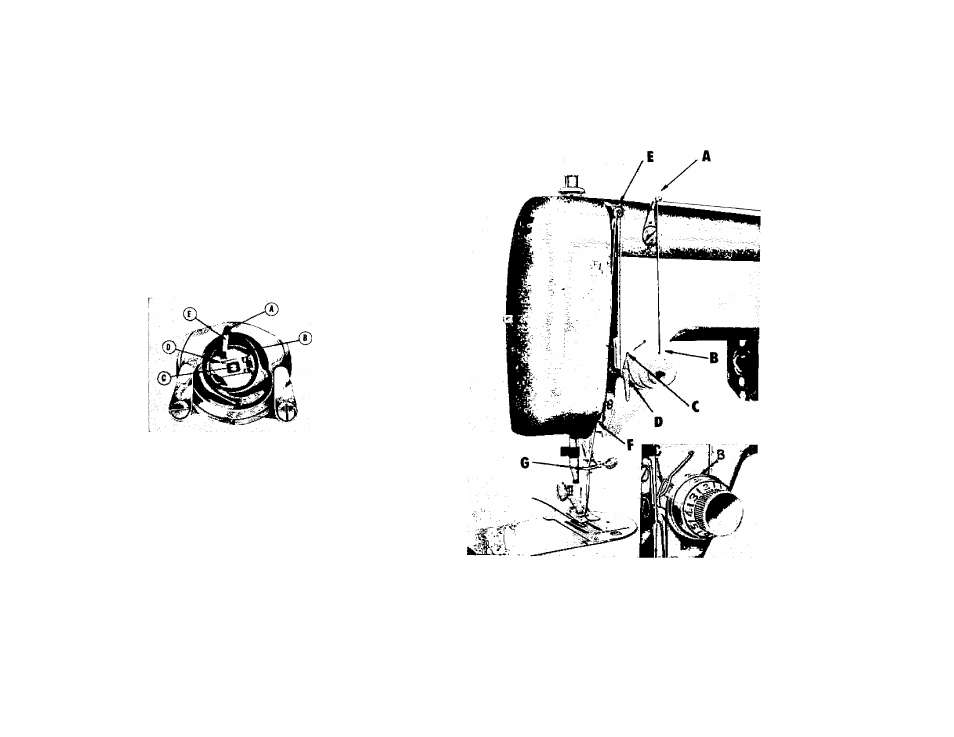

PLACING BOBBIN CASE IN SHUTTLE
Open hinged cover plate left of the needle.
(See 12, Fig. 1) Hold the bobbin case latch, (D),
Fig. 9, between the thumb and forefinger of the left
hand, with at least three inches of thread running
from the top of the bobbin case to the right. Insert
and center the bobbin case on the stud of the shuttle
body, (C). Be sure
the
bobbin
case
finger,
(E),
is
op
posite
the
shuttle
race
notch,
(A).
Press
the
bobbin
case
(B)
into
the
shuttle as far as pos
sible
until
latch
catches
on
the
center
post
of
the
shuttle.
THEN release the bobbin case latch, (D).
Press bobbin case again after latch has been re
leased
to
make
sure
the
bobbin
case
is
Iccked
securely in place. Close the cover plate.
Fig. 9
Fig. 10
