ASSEMBLY
Complete the assembly steps with the help of a second person. Set the treadmill in a cleared area and remove all
packing materials. Do not dispose of the packing materials until assembly is completed. THE FOLLOWING
TOOLS ARE REQUIRED FOR ASSEMBLY: The 7/32” alien wrench j included and your own
adjustable wrench

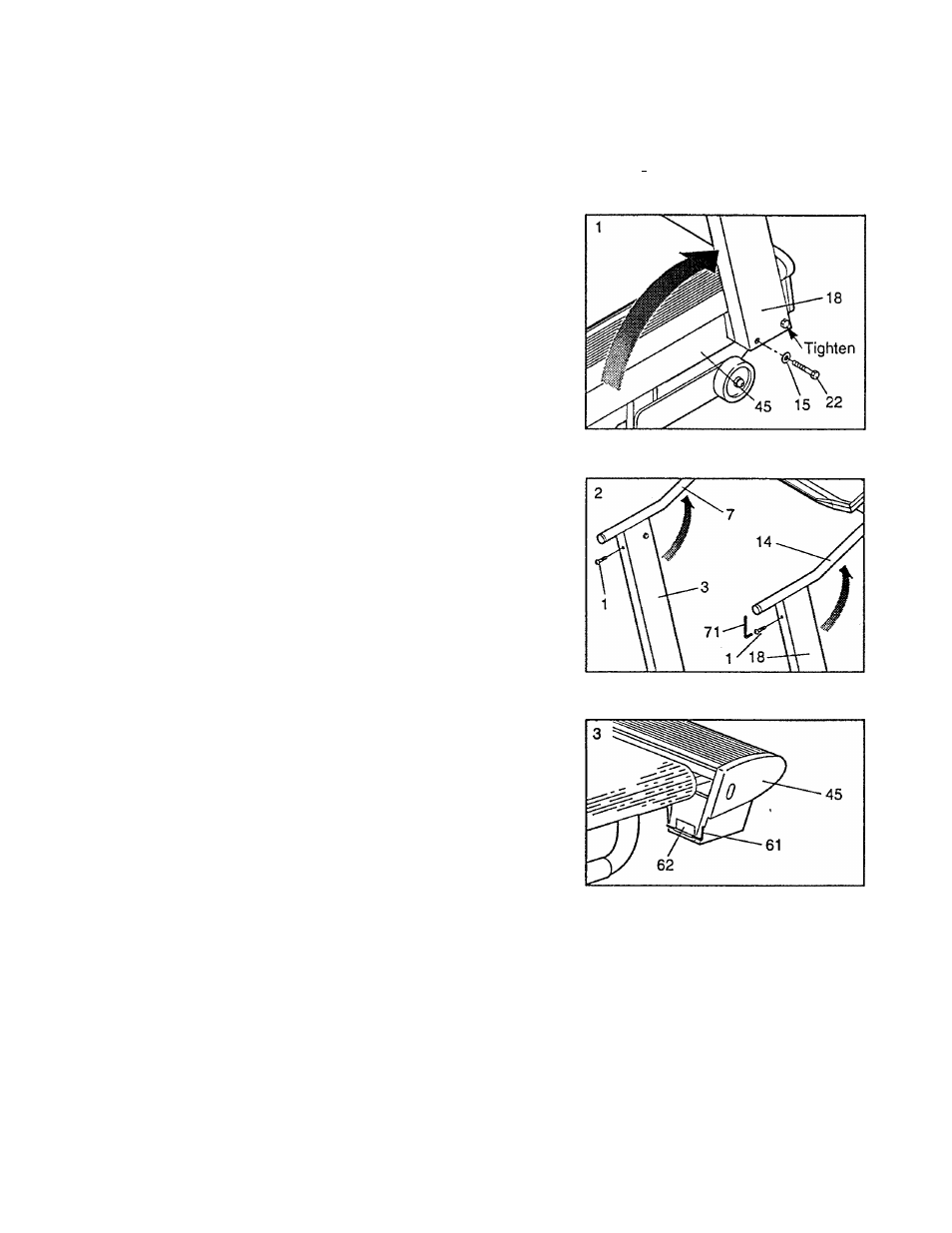

1. With the help of a second person, raise the Right Upright (18)
and Left Upright (not shown) to a vertical position. Align the
hole in the lower end of the Right Upright with the hole in the
side of the Frame (45). Insert an Upright Bolt (22), with a Flat
Washer (15), into the Right Upright and tighten the Bolt into the
Frame. Tighten the Bolt that is already in the Right Upright.
Attach a Bolt and Washer on the left side in the same manner
(not shown).
2. With the help of a second person, rotate the Left and Right
Handrails (7,14) up as shown. Insert two Handrail Bolts (1) into
the Left and Right Uprights (3,18) and tighten the Bolts with the
7/32" Allen Wrench (71).
3. Remove the paper backing from the Wrench Clip (62). Press
the Wrench Clip onto the Frame (45) in the indicated location.
Press the 3/16” Allen Wrench (61) into the Wrench Clip.
Make sure that all parts are tightened before using the treadmill.
Note: To protect the floor, a covering should be placed under
the treadmill.
