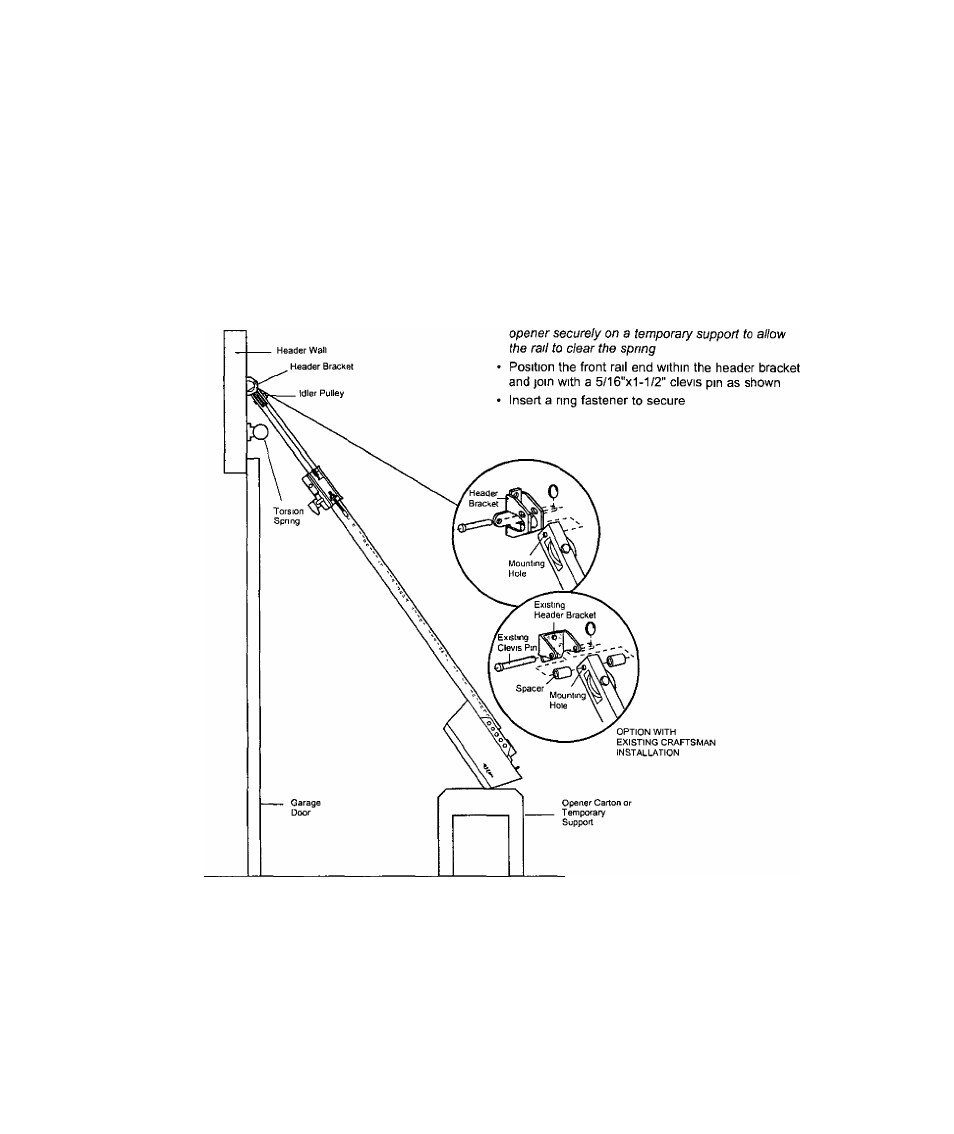

Attach the Rail to the Header
Bracket
NOTE: (Optional) With an existing Craftsman
installation, you may re~use the old header bracket
with the two plastic spacers included in the hardware
bag Place the spacers inside the bracket on each
side of the rail, as illustrated
• Position the opener on the garage floor below the
header bracket Use packing material as a
protective base NOTE: If the door spring is in the
way you'tl need help Have someone hold the
INSTALLATION STEP 3
HARDWARE SHOWN ACTUAL SIZE
(ft.
O
Clevis Pin 5/16"x1*1/2'
o
Ring fastener
1S
