OPERATION
KNOW YOUR SNOW THROWER
READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR SNOW
jj_|pOWER.

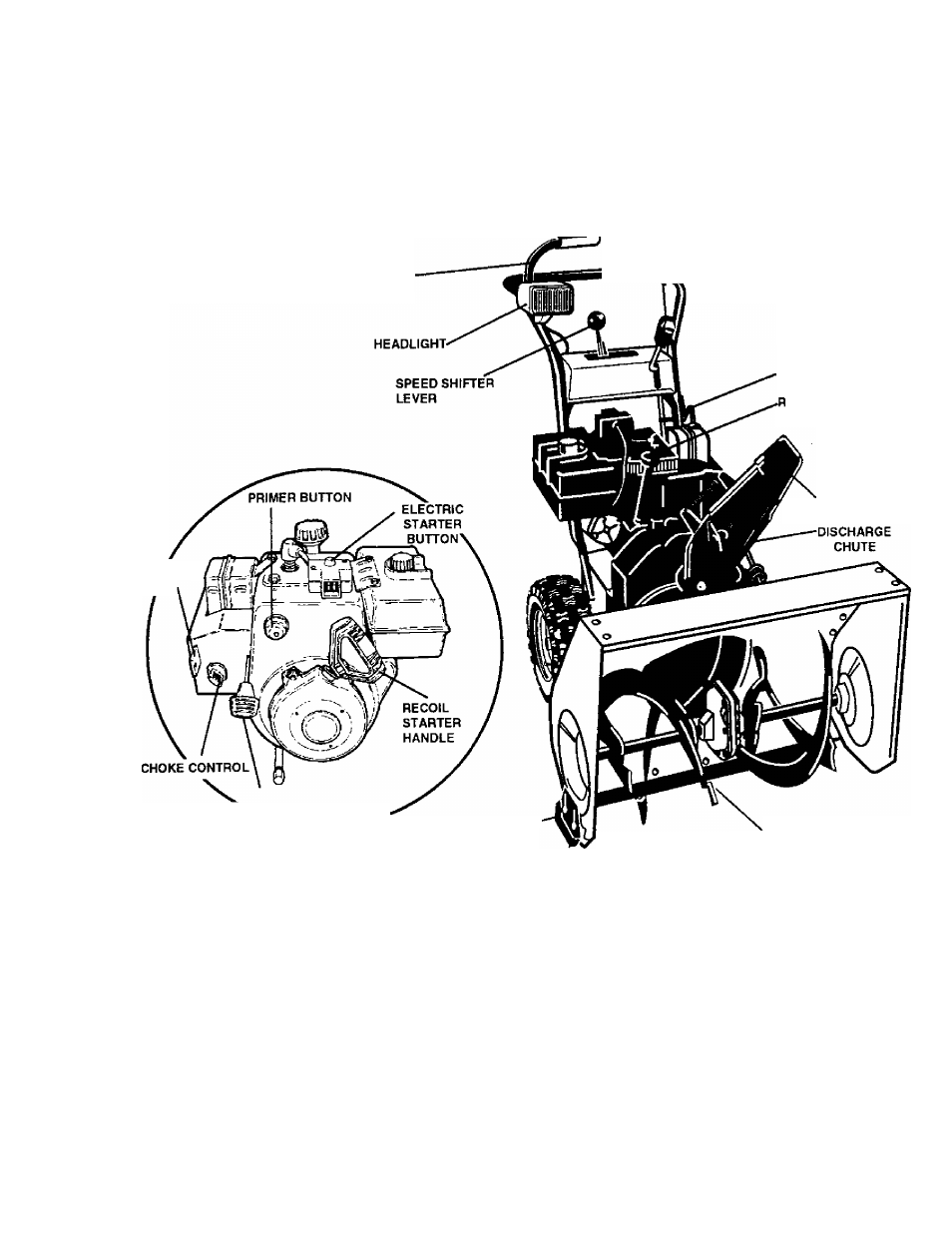

Compare the illustrations with your snow thrower to familiarize yourself with the location of various
controls and adjustments. Save this manual for future reference^_____
a
-TRACTION DRIVE
LEVER
AUGER DRIVE
LEVER
CRANK
ASSEMBLY
EMOTE CHUTE
DEFLECTOR LEVER
CHUTE DEFLECTOR
IGNITION
KEY
THROTTLE CONTROL
HEIGHT ADJUST SKIDS-
FIG. 1
SCRAPER BAR
SEARS SNOW THROWERS conform to the safety standards of the American National Standards Institute, B71,3-1984.
AUGER DRIVE LEVER - Starts and stops the auger and
impeller (snow gathering and throwing).
TRACTION DRIVE LEVER - Propels the snow thrower
forward and in reverse.
SPEED SHIFTER LEVER - Selects the speed of the
snow thrower (6 speeds forward and 2 speeds re­
verse).
HEADLIGHT - Turns on whenever the engine is running.
CRANK ASSEMBLY - Changes the direction of snow
throwing through the discharge chute.
CHUTE DEFLECTOR - Changes the height and dis­
tance the snow is thrown.
DISCHARGE CHUTE - Changes the direction the snow
is thrown.
IGNITION KEY - Must be inserted to start the engine.
ELECTRIC STARTER BUTTON - Used to start the
engine using the 120 V electric starter.
RECOIL STARTER HANDLE - Starts the engine manu­
ally.
CHOKE CONTROL - Used to start a cold engine.
PRIMER BUTTON - Injects fuel directly into the carbure­
tor manifold for fast starts in cold weather.
THROTTLE CONTROL - Controls the engine speed
HEIGHT ADJUST SKIDS - Adjusts the ground clearance
of the auger housing.
REMOTE CHUTE DEFLECTOR LEVER - Push forward
to discharge snow high and far. Pull remote lever back to
discharge snow down
