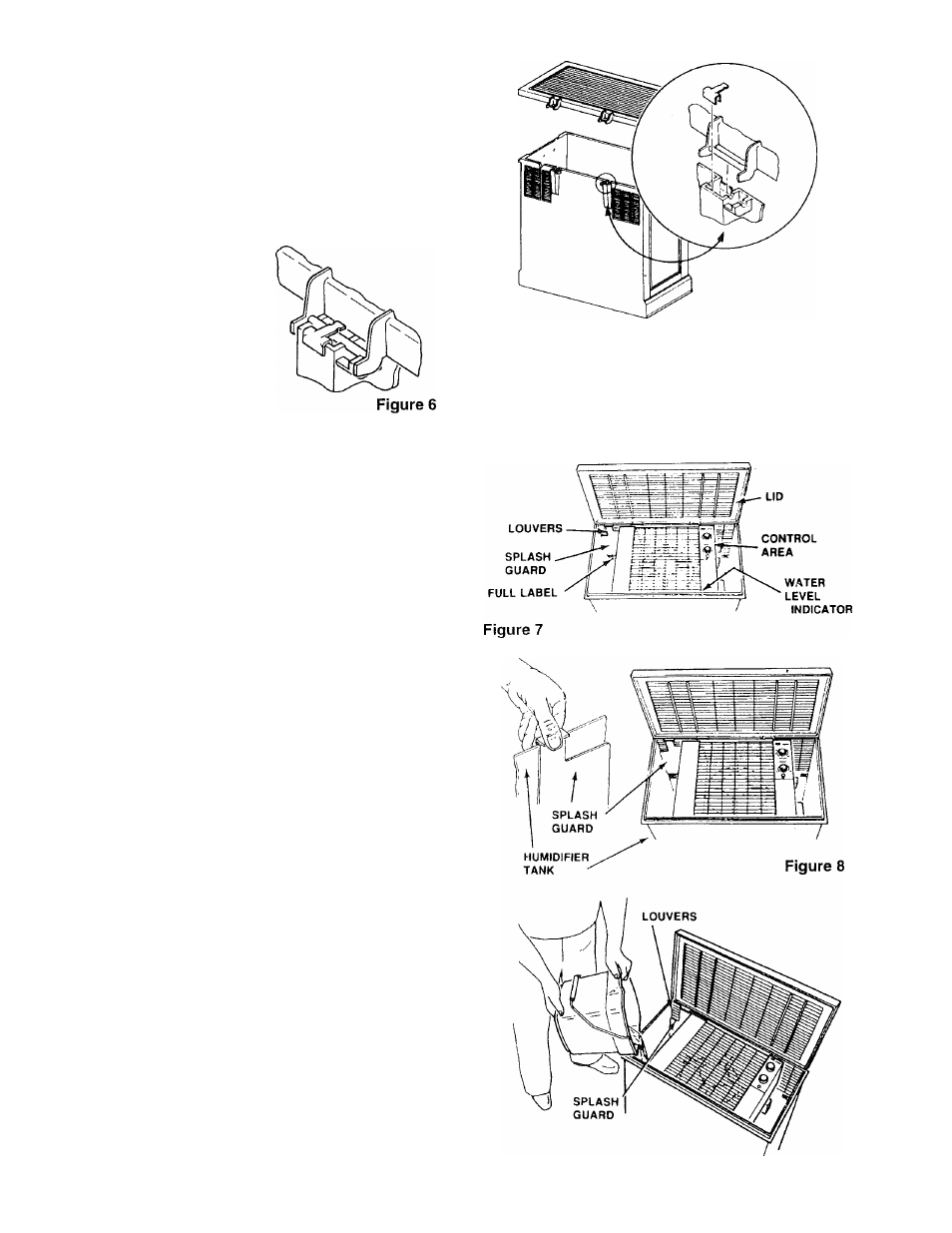

4. Push down on clip until fully seated against lid hinge.
(See fig. 6)
5. Repeat steps 3 and 4 to seat other clip.
NOTE: Your lid is now fastened to the housing. We rec­
ommend not to remove the lid retention clips once they
have been secured.
6. To remove your motor support section lift lid and lift out
motor support section, then slide cord to the right to
remove from housing.
Figure 5
Water Fill
WARNING:
1. To avoid shock, always unplug humidifier before
filling, cleaning, or servicing.
2. Do not pour or spill water into control or motor
area. If controls do get wet, have the unit checked
by a qualified service technician before plugging
in.
1. Raise the lid.
2. Locate controls on right side of humidifier. (See Fig. 7)
3.
Locate splash guard, between motor support section
and rear of humidifier tank.
4. Lift splash guard straight up to remove.
5.
With the words “Splash Guard” facing you, position
over the left rear louvers. The splash guard will simply
hook on the humidifier tank. (See Fig. 8)
6. Pour water into humidifier from the left side (opposite
the controls). (See Fig. 9)
NOTE: This is a splash guard to keep water from
splashing out tear louvers. Pour water slowly to mini­
mize any water getting outside of unit.
IMPORTANT: Be sure water does not go above FULL
mark or water may run out of the rear louvers.
7. Fill tank with clean water up to FULL indicator label,
located inside the housing on the left rear panel, (See
Fig. 9) by using a bucket.
8. When you are finished filling your humidifier, replace
“Splash Guard” to its storage location. (Located
between the motor support section and* humidifier
tank.) The “Splash Guard” will hook onto the humidifier
tank.
NOTE: When removing your “Splash Guard” we recom­
mend
reaching down and grabbing the “S” in Splash
Guard and slightly twisting to remove.
Figure 9
