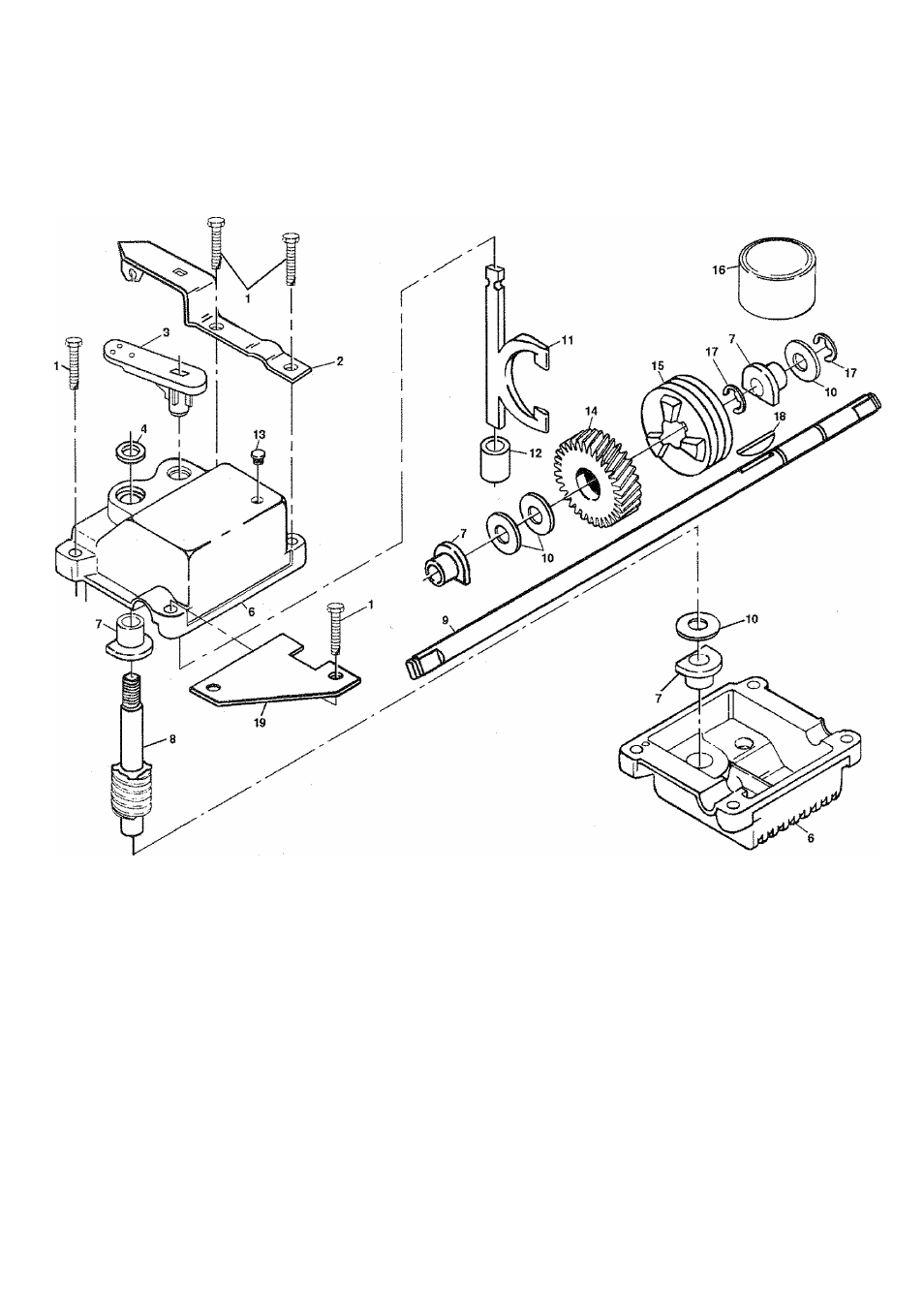

REPAIR PARTS

ROTARY LAWN MOWER - - MODEL NO. 917.372851

GEAR CASE ASSEMBLY PART NUMBER 702511

KEY

PART

KEY

PART

NO.

NO.

DESCRIPTION

NO.

NO.

DESCRIPTION

1

17490416

Tapping Screw 1/4-20 x 1-1/4

11

131484

Clutch Yoke

2

137055X004

Engagement Bracket

12

700343

Bushing

3

137053

Shifter

13

86447

Plug

4

57072

Seal

14

137050

Helical Gear

6

48373

Gear Case Halves Kit {Includes Key

15

750436X

Clutch Jaw

Nos. 4, 5, and 7)

16

750369

Grease

7

77881

Bearing

17

12000003

E-Ring

8

137051

Worm Shaft

18

850848

Hi-Pro Key

9

137074

Drive Shaft

19

81585X004

Spring Bracket

10

57079

Hardened Washer
