NOTE: If your garage has a built up jamb, drill the hole
2" deep. Then, on inside edge of jamb, drill a second hole
into first hole to complete access.
STEP 2: Hold keyboard firmly with the back of the case UP.
Position thumb against bottom of case and pull up sharply.
Keyboard will lift out of cover, allowing access to bottom
mounting hole
Guide the keyboard cable through hole to inside of garage.

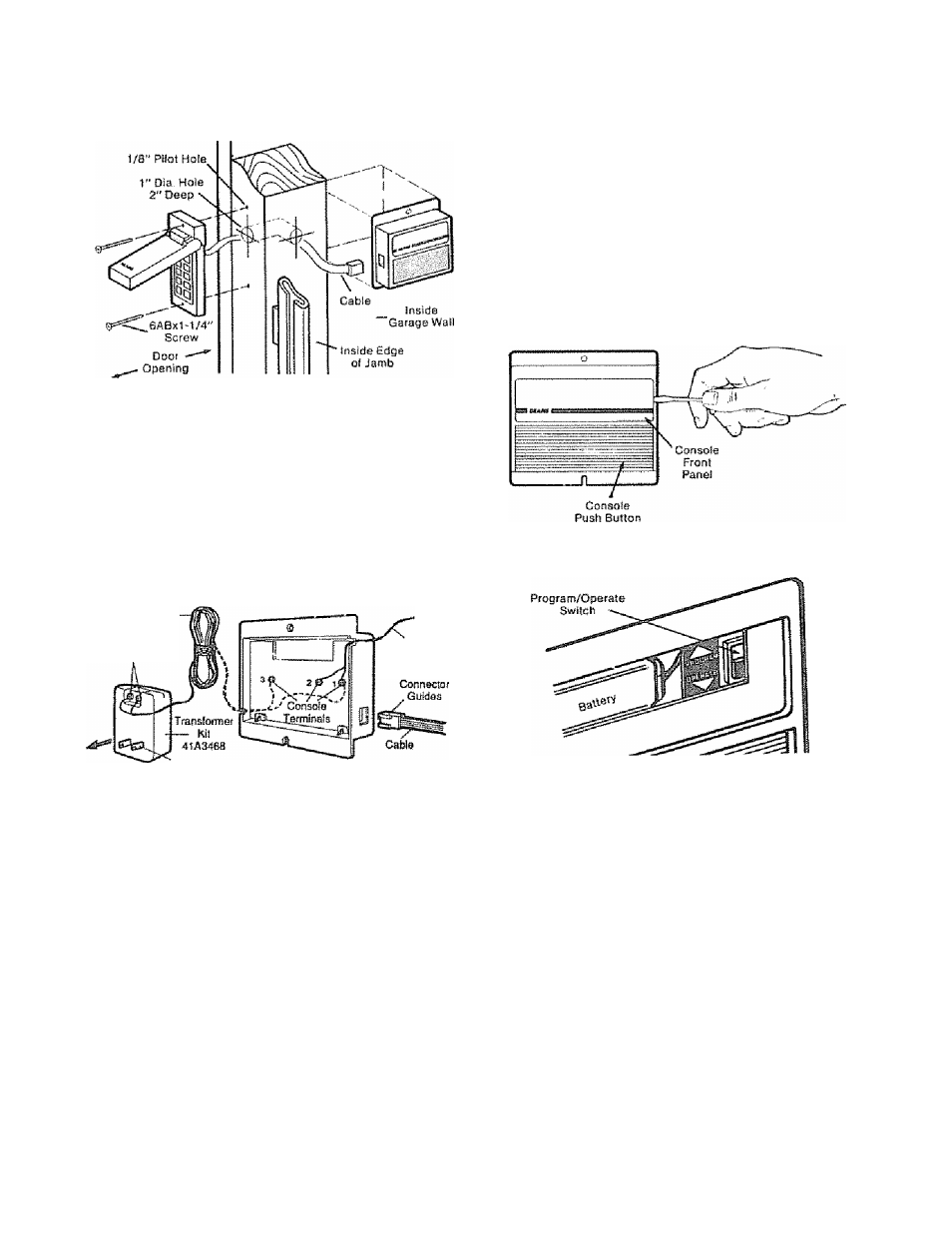

Position the keyboard against outside jamb Drill two 1/B" pilot
holes for fastening screws Attach securely with (2) 6ABx1-1/4"
screws Close cover
Excess cable can be folded and inserted into the access hate
to keep it out of the way
Bàli Wire
Iransfarmer
Termínala
Belt Wire
(To Garage
EJoof Opener)
To 120V Ouilel
STEP 3: Connect the 2-strand bell wire to terminals labeled
1 and 2 on back of console. Insert keyboard cable connector
into slot on side of console Be sure connector guides are
facing BACK of console.
IWIPOflTANT: Some garage door openers have a third
screw termirtal which supplies power to the radio control.
This terminal can be connected to terminal No. 3 on the
console with a third strand of bell wire (not supplied}.
With any garage door opener made by Stanley, accessory
transformer kit 41A34S8 HÆUST be installed.
TRANSFORMER INSTALLATION INSTRUCTIONS: Connect
one end of the 2-strand bell wire supplied with the kit to each
of the transformer terminals PolaHty is not important Con­
nect the other end of bell wire to terminals 1 and 3 on the
Touch Code console
IF THIS ACCESSORY IS USED WITH ANY GARAGE DOOR
OPENER OTHER THAN SEARS OH CHAMBERLAIN AND
THE BATTERY FAILS IN TWO MONTHS, TRANSFORMER
MUST BE INSTALLED. Follow instructions above.
STEP 4: Position console on an interior garage wail approxi­
mately one fool from outside edge of door. Fasten with (2)
SABxl" screws
Run bell wire up wall and across ceiling to garage door opener
terminals Use insulated staples lo secure wire Cut off any
excess wire Connect to terminals used for push button
controls.
On Sears models, connect wire as follows;
Model series 53000—to red and white terminals
Mode! 664400-^to blue and white terminals
Model 664000—to red and black terminals.
All Other models—to white and white terminals or to the
terminals used tor wall push button
STEP 5: Pry open front panel of console with a coin or screw­
driver. Snap a 9 volt battery onto circuit board connector and
drop into console DO NOT replace pane! at this time
STEP 6: To set code, move programfeperale switch near the
battery to PROGRAM position (keyboard light should flash)
NOTE: Ef the light does not flash, check the cable and bat­
tery connections. Press any four numbers on keyboard,
CAUTION: For security, do not use address, fícense or
consecutive numbers (1,2,3,4 etc.).
Move the program/operate switch to OPERATE position (the
keyboard light will go off)
Reconnect power to garage door opener If you have installed
Transformer Kit 41A3468, plug the transformer into a 120
Volt outlet. Enter the code on the keyboard. If the door oper­
ates properly, replace the front panel on the console
Loss of power to either the battery or the garage door opener
will not affect the programmed code. However, if BC3TH lose
power, the code must be reset.
Battery should produce adequate power for at least one year.
If light in keyboard does not turn on, change the battery.
NOTE: To maintain the privacy of your code, keep all of
the buttons free from soil. If any of the numbers show
signs of wear, change your code.
