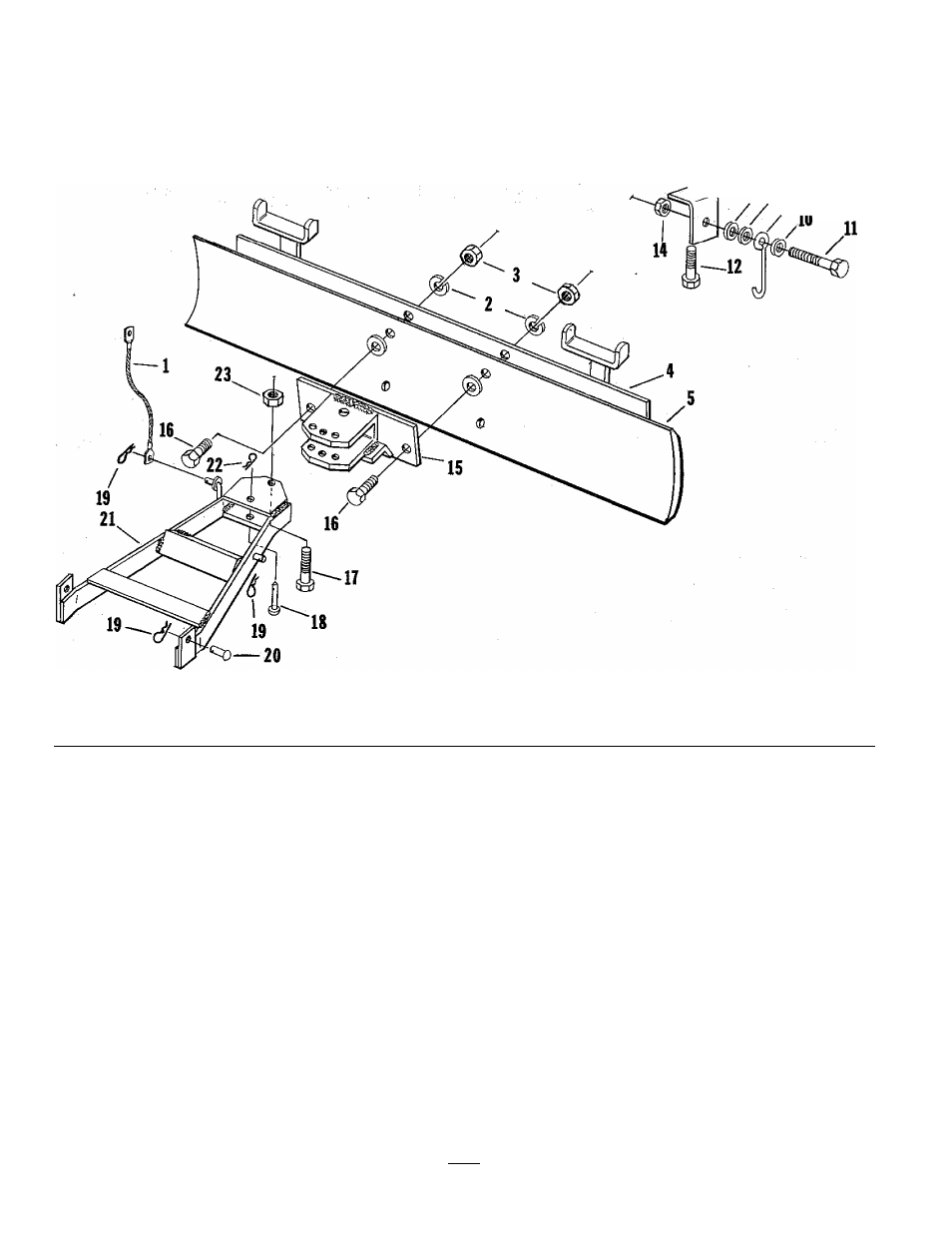

42" GRADER BLADE
7—SB .13
« 1»
* -^9
No.
Description
Part No.
Qty.
No.
Description
Part No.
Qty,
1
CABLE ASSEMBLY-lift
LM-16064-73
1
15
HITCH ASSEMBLY
LM-01070-58
1
2
WASHEB-lock, 5/8
LM-09173-73
2
16
SCREW-hex cap, 5/8-11x2
LM-09193-75
2
3
NUT-hex, 5/8-11
LM-09157-26
2
17
SCREW-hex cap, 5/8-11 x 3
LM-09221-18
1
4
BRACKET ASSEMBLY
LM-01727-38
1
18
PIN-king
LM-81810-08
1
5
BLADE-grader, 42”
LM-01070-56
1
19
PIN-quick
LM-09181-96
4
6
NUT-hex, 3/8-16
LM-09169-50
1
20
PIN
LM-0156 3-06
2
7
WASHER-lock, 3/8
LM-09169-65
1
21
DRAW BAR ASSEMBLY
LM-16066-32
1
8
WASHER-nylon, 3/8
LM-01591-34
1
22
PIN-quick
LM-80210-24
1
9
HOOK-transport lift
LM-16075-24
1
23
NUT-hex, 5/8-11
LM-09233-53
1
10
WASHER-flat, 3/8
LM-09173-78
2
11
SCREW-hex cap, 3/8-16 x 1-1/8
LM-09193-58
1
Accessory
12
SCREW-hex cap, 3/8-16 x 3/4
LM-09081-27
1
13
CLIP-transport lift
LM-16075-22
1
PAINT-blue, 14oz. spray can
LM-16076-89
14
NUT-hex, 3/8-16
LM-09234-28
1
PAINT-black, 12oz. spray can
22772
ALWAYS FURNISH MODEL AND SERIAL NUMBER WHEN ORDERING PARTS.
