[LDITil*
INSTRUCTPNS
%
PARTS LIST
42” GRADER BLADE
No. LM-16001-67
for • T-ia T-12, § T-15 TRACTORS

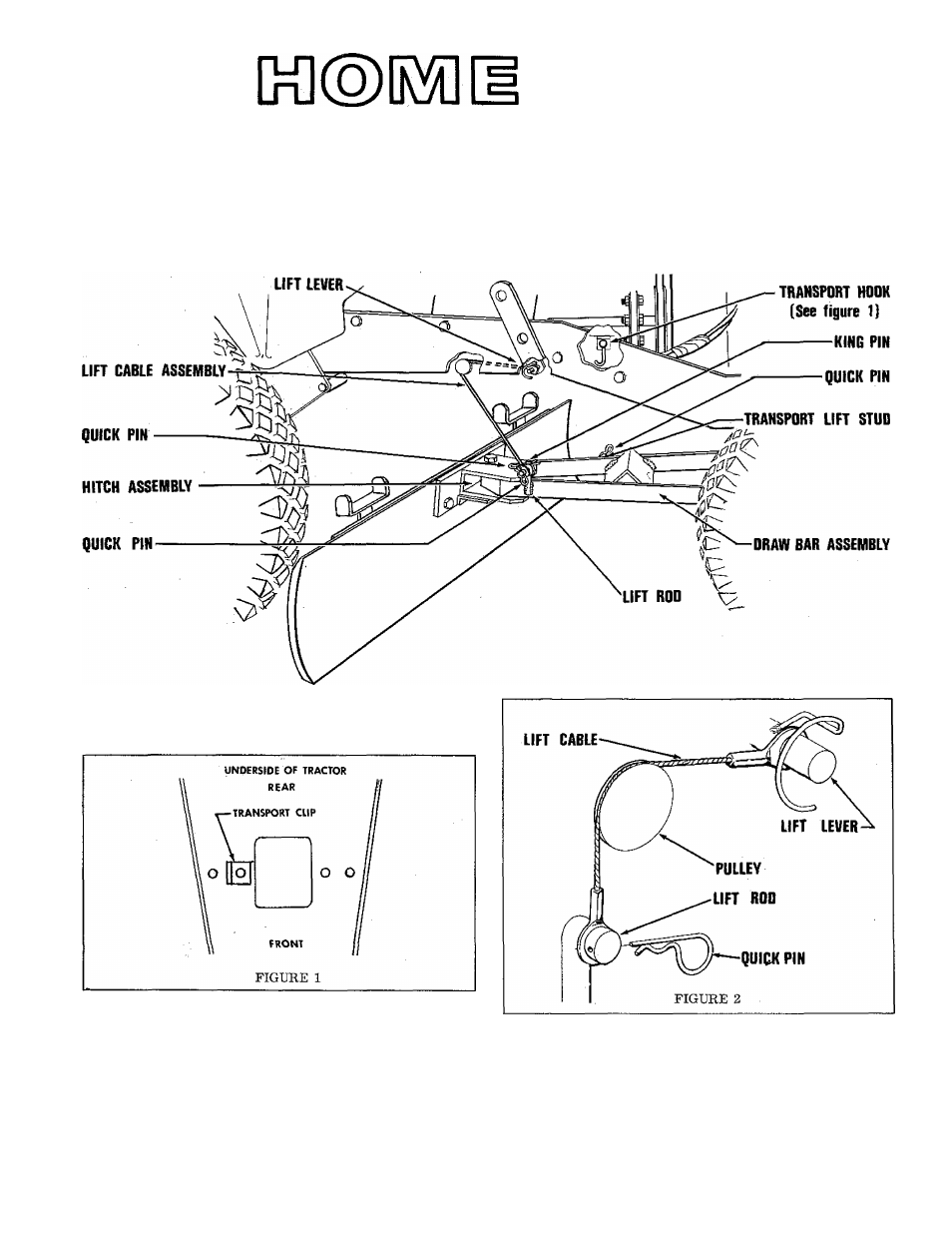

The 42" grader blade is attached to the tractor as shown in
the above illustration by following the sequence of steps as
outlined below.
1.
Position the grader blade under the tractor so that the
draw bar assembly may be connected to the front hitch
brackets of the tractor. Secure in place with two clevis
pins and two quick pins.
2.
Attach the lift cable to the rod on the lift lever located
on the underside of the tractor (see Fig. 2). Run the cable
over the pulley and attach to the lift rod on the draw bar.
Secure with a quick pin.
3. When desired, the blade may be angled to the left or right
by removing the king pin and quick pin from the center
hole in the hitch assembly. Lock the blade in the desired
'position by replacing the king pin and quick pin when the
alternate holes in the hitchassembly lineup with the hole
in the draw bar.
PART NO. 24696
