ASSEMBLY
Set the treadmill in a cleared area and remove all packing materiais. Do not dispose of the packing
materials until assembly is completed. TOOLS REQUIRED FOR ASSEMBLY: An 8" adjustable
wrench
(not Included).

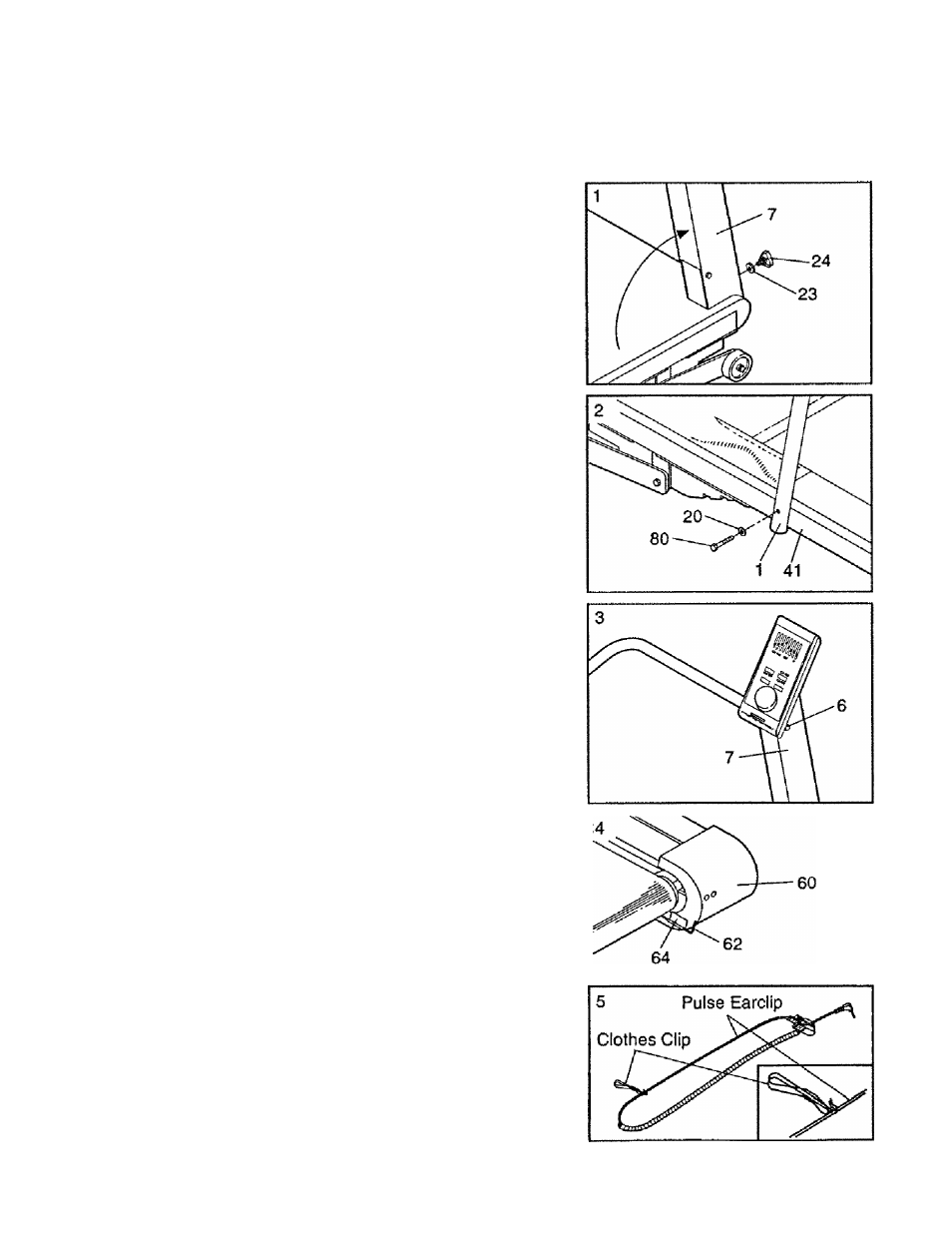

1. Insert the Lock Knob (24), with the Lock Knob Washer
(23), into the Upright (7). Raise the Upright, with the
Handrail (not shown), to a vertical position and turn the
Knob clockwise until almost tight. Leave a little play in
the Upright for the following steps.
2. Align the hole in the lower end of the Handrail (1) with
the hole in the side of the Frame (41). Insert a Handrail
Bolt (80), with a Handrail Washer (20), into the Handrail
and tighten the Bolt into the Frame.
3. Tighten the Acorn Nut (6) on the side of the Upright (7).
Tighten the Lock Knob (24) (see step 1).
4. Remove the paper backing from the Wrench Clip (64).
Press the Wrench Clip onto the Right Endcap (60) in the
indicated location. Press the Allen Wrench (62) into the
Wrench Clip.
5. Slide the metal Clothes Clip onto the Pulse Earclip in the
Indicated location. The use of the Pulse Earclip is
explained in the FITNESS MONITOR section on page 9.
Make sure that all parts are tightened before using the tread­
mill.
