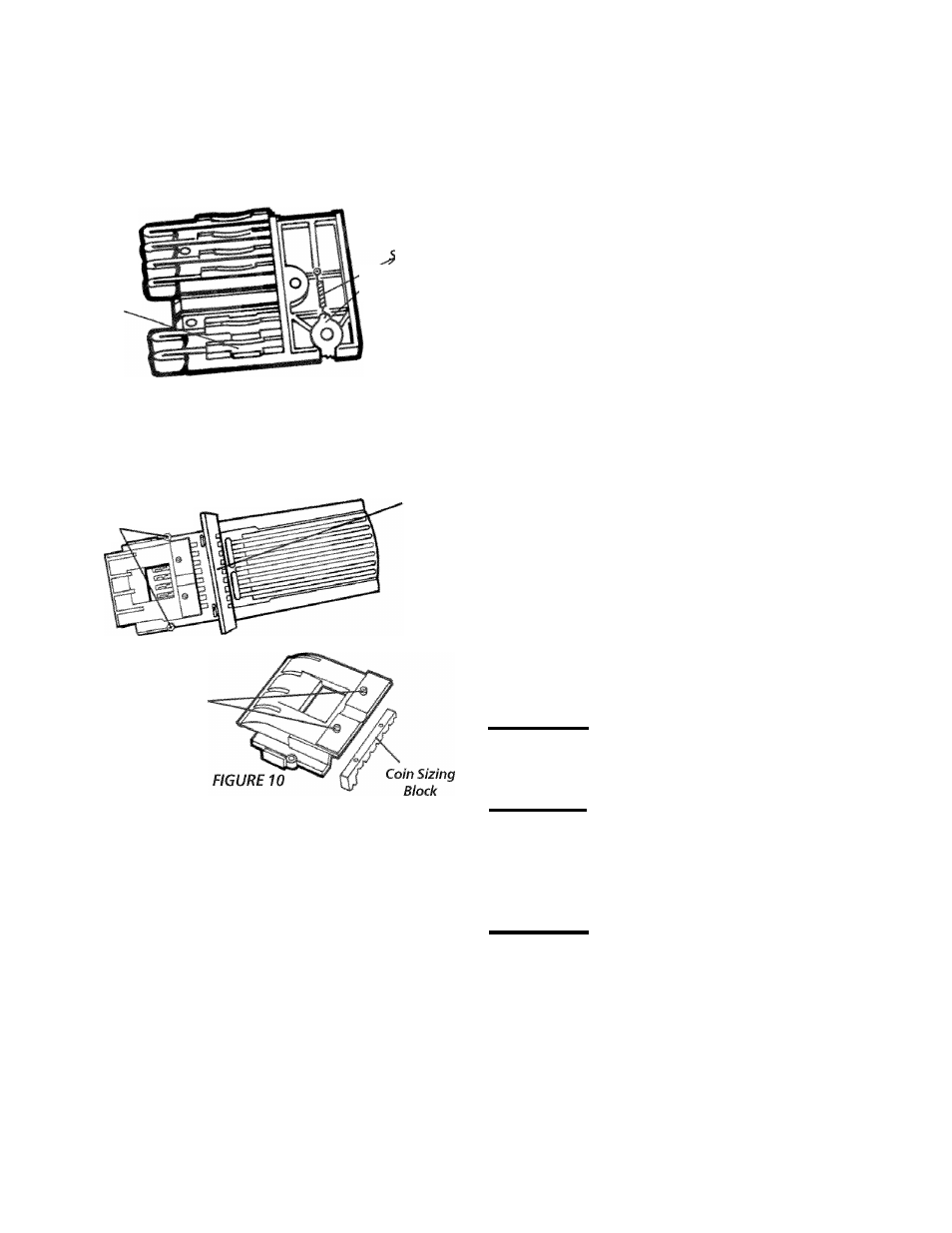

To remove block-out keys, pull straight up.
NOTE:
Be sure block-out keys and /or dime inserts are seated
properly and ratchet dog is in place with irs spring connected
(see FIGURE 8).
Be sure the proper coin sizing block is in place.
Ratchet
Dog and
pring
Block-Out
Keys
FIGURES
Change coin sizing
block:
•
Remove two screws that hold upper coin chute cover.
Remove cover (see FIGURE 9).
(2)
Upper Coin
Chute
Cover
Screws
FIGURED
Anti-Cheat
Gate
(2)
Coin Sizing
Block Screws
STEP?
Replace
coin receiver
block
into slide:
•
Flold coin receiver right side up in the palm of one hand.
•
Lower coin slide until coin receiver block fits into the coin
slide
cavity.
CAUTION:
Do
not
dislodge
ratchet
dog
and
spring.
• Flold coin receiver block in place with your fingers and turn
slide upside down.
• Insert and tighten screw.
STEPS
Install slide into coin chute. Slide can only be pushed in if the
anti-cheat gate in flange is pushed to the left, (see FIGURE 9).
STEP 9
Replace
coin
slide
stop
with
two
screws.
Replace
coin
slide
return spring. Replace coin slide extension with two screws (be
sure spacers are in place).
STEP 10
Replace coin slide mechanism in meter case. Replace and tighten
coin slide mounting bolt.
NOTE:
It may be easier to insert coin slide mounting bolt if you
remove the timer from the mounting screws temporarily.
REPLACEMENT PARTS
If replacement parts are needed for your dryer, contact the source
where you purchased your dryer, or call Sears Parts and Service
Toll Eree Number 1-800-4-MY-HOME (1 -800-469-4663). Eor coin
box parts, call 1 -800-221-0982, Greenwald Industries.
À CAUTION
Label
all
wires
prior
to
disconnection
when
servicing
controls.
Wiring
errors
can
cause
improper
and
dangerous operation. Verify proper operation after servicing.
Remove two screws that hold coin sizing block to upper coin
chute cover cover (see EIGURE 10).
Put new coin sizing block in place. Reinsert and tighten
mounting screws.
Replace coin chute cover. Reinsert and tighten screws.
WARNING
Destroy
the
carton
and
plastic
bags
after
the
dryer
is
unpacked.
Children
might
use
them
for
play.
Cartons
covered
with
rugs,
bedspreads,
or
plastic
sheets
can
become
airtight
chambers
causing
suffocation.
Place
all
materials
in
a
garbage container or make materials inaccessible to children.
WARNING
The
instructions
in
this
manual
and
all
other
literature included with this dryer are not meant to cover every
possible
condition
and
situation
that
may
occur.
Good
safe
practice and caution
MUST be
applied when installing, operating
and maintaining any appliance.
