ATTACHING THE MOWER

Place the mower drive belt over the pulley on top of the mower

housing. Pull the belt toward the front of the mower housing

and keeping it tight, adjust the belt stops on top of the shield

to within 1/8 inch of the belt.

Park the unît on a level surface and turn the front wheels sharp

right. Slide the mower under the left side of the tractor and

proceed as follows:

1. Place the mower drive belt over the two PTO idlers on the

front of the tractor. Be sure PTO is in Neutral. NOTE; Belt

may have to be twisted slightly to enable it to pass between the

belt retainers onto the pulley.

2. Feed the belt over the front axle, through the opening in

the frame and around the lower engine pulley.

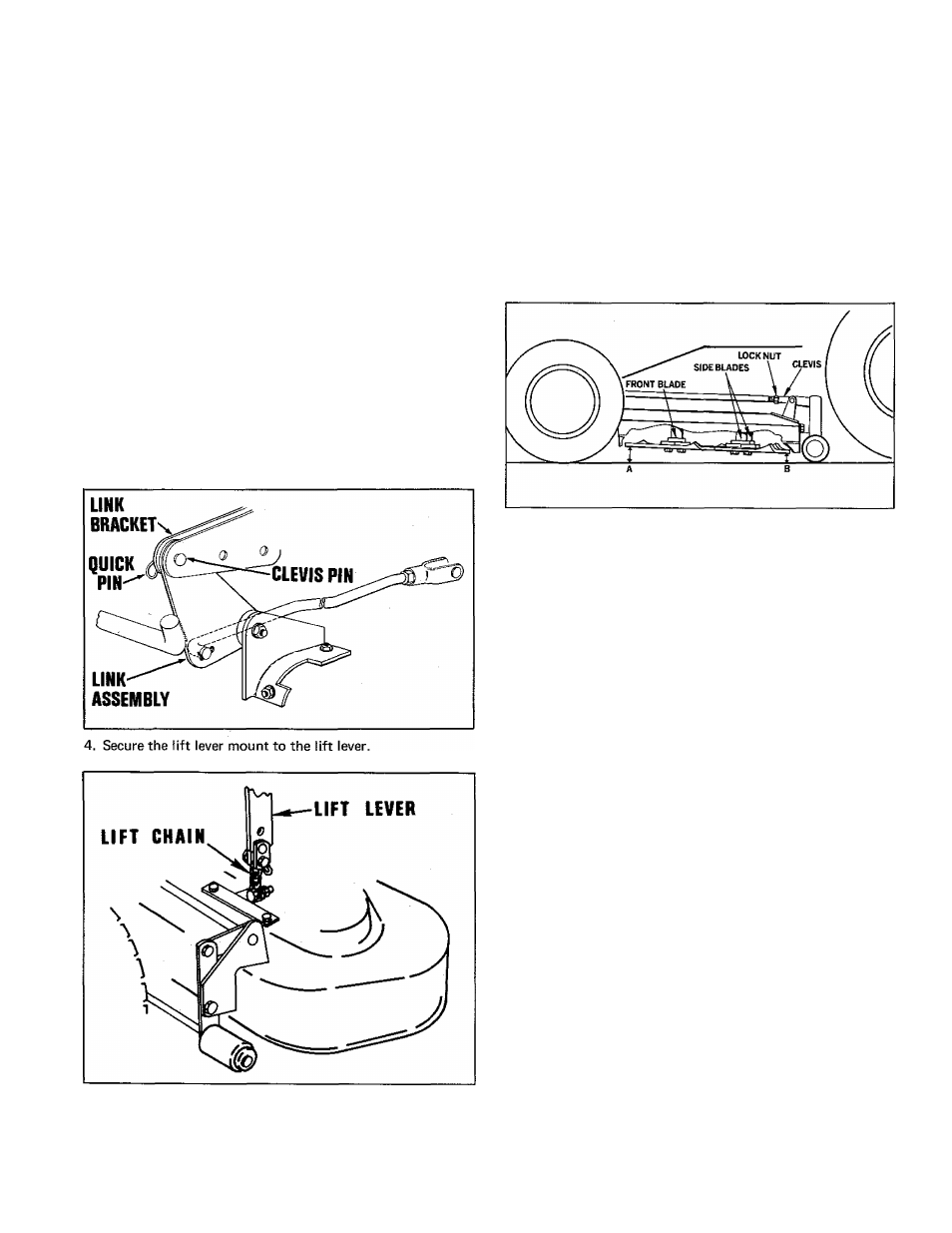

3. Raise the front of the mower housing and secure the mower
link assembly to the link brackets on the frame. NOTE: Mount

the mower in the forward most holes. The other holes are for
mounting other attachments. Secure the link assembly with

clevis pins and quick pins.

CAUTION: Remove key and disconnect spark plug wire
before making the following adjustments.

PRACTICE SAFETY

AT ALL TIMES

MOWER ADJUSTMENTS

For proper grass cutting, the Rotary Mowers must be set so the

front of the mower is approximately 1/8" to 1/4" higher than

the rear. Proceed as follows:

1. Park the unit on a flat level surface. Place the cutting height

lever in the uppermost position.

2. Measure the distance at point "A" and point "B". If point

"A" is not 1/8" to 1/4" higher than point "B" proceed as

follows:

Loosen the locknut on the adjusting rods. Remove the quick

pin and clevis pin from each clevis. Rotate each clevis the same

amount of turns to obtain a height of 1/8" to 1/4" higher at

point "A" than point "B".

NOTE: To raise the front of the mower, turn the clevis

clockwise. Be sure to recheck point "B" after

obtaining proper height at point "A".

Every mower must be checked and adjusted in accordance

with the above instructions prior to operation of the

unit.

REPLACEMENT PARTS

Replacement parts for your HOME LITE equipment should be

purchased from your HOMELITE Dealer. Be prepared to give

him the tractor name, model, and the serial number.

USE ONLY HOMELITE BELTS AND BLADES.

CAUTION: Always check mower for broken parts immediately

after striking any solid object. If a blade is bent, it should be

replaced rather than straightened and reused. Any broken

parts should be replaced. Replacement blades should be

ordered only from your HOMELITE dealer.
