LIFT LEVER MOUNTING INSTRUCTIONS

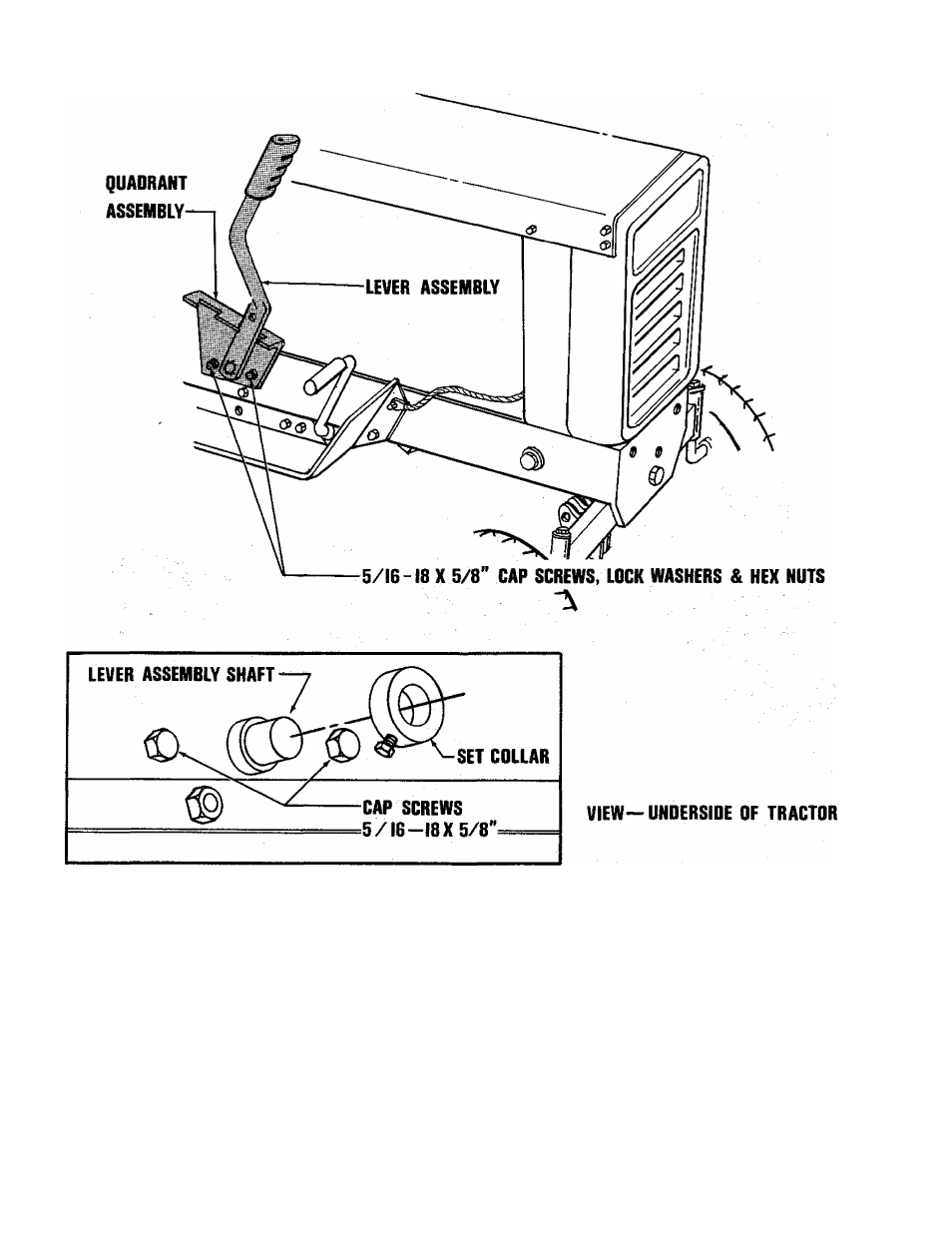

The lift lever kit mounts to the tractor frame on the right hand side of the tractor
as shown in the illustration. It should be installed as follows:
1.
Secure the quadrant assembly to the tractor frame using two 5/16-18 x 5/8
capscrews, lockwasher and hex nuts. Bolt heads must be inside tractor frame.
2.
Slide the shaft on the lever assembly through the hole in the quadrant assembly.
3.
Install the set collar on the end of the shaft and secure with a setscrew.
NOTE: Install set collar just tight enough so that lever assembly is not
loose, yet moves easily.
