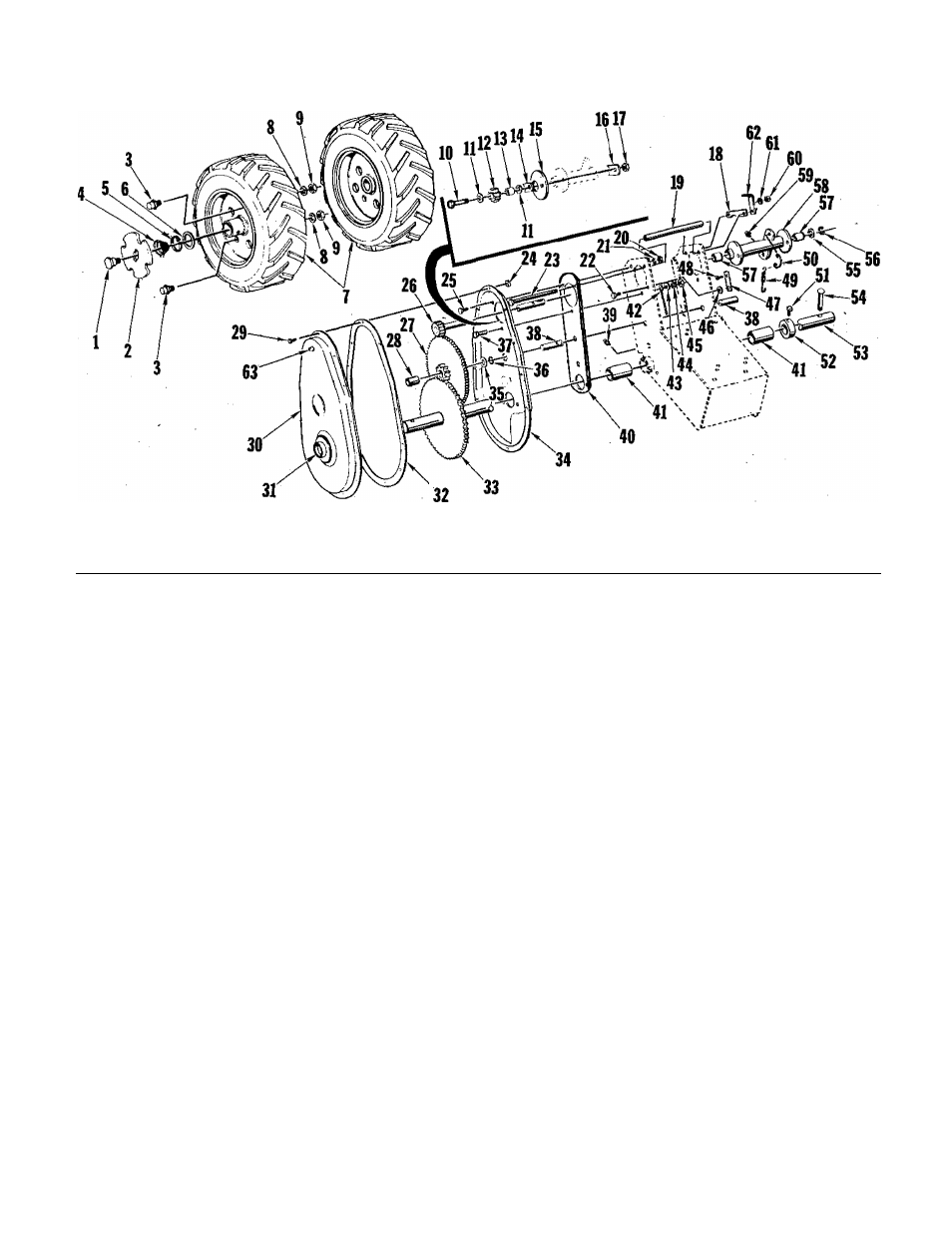

T R A N S M I S S I O N a n d W H E E L S
No.
Description
Part No.
Qty.
No.
Description
Part No.
Qty,
1
BOLT-shoulder
LM-01611-66
1
31
WASHER-retaining
LM-80610-55
1
2
PLATE-locking
LM-01611-68
1
32
GASKET-gear case
LM-01531-15
1
3
STUDS
LM-01611-67
2
, 33
AXLE & GEAR ASSEMBLY
LM-01611-64
1
4
SPRING
LM-01611-76
1
34
CASE-gear
LM-01531-05
1
5
RING-retaining
LM-015S3-96
2
35
WASHER
LM-01530-79
1
6
WASHER
LM-01530-88
2
36
RING-retaining
LM-01531-24
1
7
WHEEL & TIRE ASSEMBLY
LM-01611-61
2
37
SCREW-hex hd., 3/8-16 x 1
LM-09077-31
1
Includes:
38
SHAFT-inter mediate
LM-01061-93
1
WHEEL
LM-01611-62
2
39
FlTTING-greas e
LM-09128-0S
1
TIRE
LM-01064-51
2
40
GASKET-bearing housing
LM-01531-14
1
8
WASHER-pIain, 5/16
LM-09176-42
2
41
BEARING
LM-01530-89
2
9
KUT-hex, 3/8-16
LM-09234-23
2
42
PIN-lock
LM-01210-44
1
10
BOLT-hex hd., 3/8-16 x 1-1/2 (L. H.)
LM-09287-25
1
43
WASHER-plain, 3/8
LM-09173-78
1
11
WASHER-plain, 5/16
LM-09176-42
2
44
WASHER-lock, 3/8
LM-09169-65
1
12
PINION-reverse
LM-01211-13
1
45
NUT-hex, 3/8
LM-09169-50
1
13
SPACER-pinion
LM-01211-63
1
46
WASHER-plain, 1/4
LM-09173-77
2
14
SPACER-reverse pinion
LM-01211-07
1
47
DETENT-neutral
LM-09287-23
1
15
SHIELD
LM-01530-94
1
48
SCREW-Self-Tap, #10 x 3/8
LM-09198-04
1
16
PLATE-lock
LM-01211-39
1
49
SPRING-re verse lever
LM-01531-21
1
17
NUT-hex, 3/8-16 (L. H.)
LM-01530-90
1
50
EXTENSION-spring
LM-01530-11
1
IS
PLATE-frietion stop
LM-01062-15
■ 1
51
SCREW-set, sq.hd,, 5/16-18 x 1/2
LM-09287-21
1
19
SPACER-frame
LM-01062-17
1
52
COLLAR-set
LM-80610-46
1
20
NUT-hex, 5/16
LM-09173-72
3
53
CLIP-spring
LM-81610-45
1
21
WASHER-lock, 5/16
LM-09173-56
3
54
PIN
LM-01180-53
1
22
SCREW-hex hd., 1/4-20 x 5/8
LM-09219-59
1
55
•WASHER
LM-01530-79
1
23
BOLT-frame
LM-01062-16
1
56
RING-retaining
LM-01531-24
1
24
NUT-hex, Ttrmerman
LM-09286-99
12
57
BEARING-bronze
LM-80510-38
2
25
SCREW-hex hd., 5/16-18 x 5/8
LM-09193-18
3
58
HOUSING ASSEMBLY-bearing
LM-01061-99
1
26
SHAFT ASSEMBLY-pulley
LM-01211-15
1
59
FITTING-grease
LM-09128-08
1
27
GEAR ASSEMBLY-intermediate
LM-01213-06
1
60
NUT-hex, 5/16-18
LM-09173-72
1
28
BEARING-intermediate pin
' LM-01530-78
1
61
WASHER-lock, 5/16
LM-09173-56
1
29
SCREW-Self-Tap, #10 x 3/8
LM-09237-35
12
62
GUIDE-clutch wire
LM-01067-77
1
30
COVER ASSEMBLY-gear ease
LM-01531-06
1
' 63
FITTING-grease
LM-09287-24
1
ALWAYS FURNISH MODEL AND SERIAL NUMBER WHEN ORDERING PARTS.
