Relay Life (operations):
No Load 1 x 10 7
250 Vac, 5A, Resistive 1 x 10 5
Relay Operative Time:
4 to 7 msec
Relay Release Time:
1 to 2 msec
Power Up/Down States:
Normally open contact is open.
Power: +5V @ 1.0A typical
+12V @ 1.5A typical
Ordering Information:
Description Part Number
VX412C 11026205-0001
Locking Conn See Accessories
VXIbus Compliance
Complies with ANSI/IEEE Std. 1014-
1987 and VXIbus Rev 1.4
A16:D16 DTB Slave
Register based
No Interrupts
IACKIN tied to IACKOUT
BRX tied to BGX
Form Factor: Size C
Built-in test via register feedback
Applications
• Power Switching
• Control
• LF Signal Switching
Specifications:
Maximum Input Voltage:
Terminal to Terminal:
250 Vdc or ac
rms
Terminal to Chassis:
250 Vdc or ac
rms
Maximum Switchable Voltage:
100 Vdc, 200 Vac
rms
Maximum Switchable Current:
(DC or AC
rms
):
Per Contact: 5A
Per Module: 50A
Maximum Switchable Power:
Per Channel: 150W, 1250VA
Per Module: 1500W, 12500VA
Closed Channel Resistance:
Initially ≤ 0.1 Ω
(6Vdc @1A)
Insulation Resistance
(between any two points):
>10 8 Ω

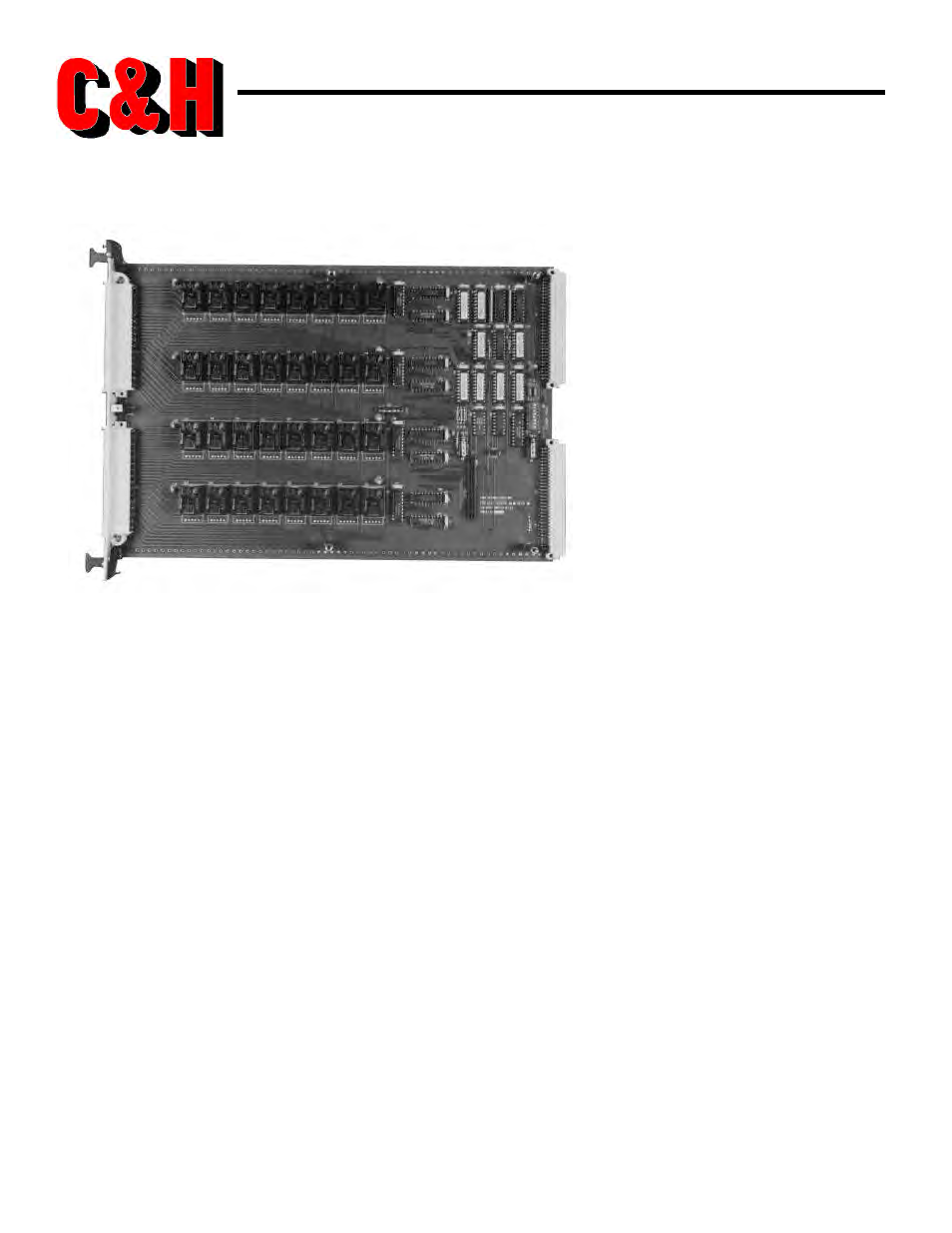

VX412C
SPDT Switching
Module
The VX412C is a C size, Register
based switching card that provides
32 channels of 5A, Form-C
switching. User connection to the
module is through two (2) DIN
41612 Type F48M connectors.
Normally closed, normally open and
common terminals are provided for
each of the non-latching relays.
MODID and Board Select indicators
are included. Module is equipped
with BIT capability and shielding.
