Interrupt Types: RORA
ROAK
Temperature:
Operating:
0°C to 60°C
Storage: -20°C to 70°C
Power: +5V @ 300mA
+12V @ 0mA
-12V @ 0mA
(without M Modules)
Ordering Information
Description
AMi4000 M/MA Module Carrier
Part Number 11028390-0001
VMEbus Compliance
Complies with ANSI/IEEE Std 1014-
1987 when P2 not used
A24/A16, D16/D08(EO)
D08(O) (DYN) Interrupt Vector
(vector unique per module)
I(x) Interrupt Level
Applications
• Up to four (4) M Module types in a
single VME slot.
• Port customer interfaces from ITA
to a VME slot.
• VME ATE & data acquisition "glue
logic".
Specifications:
Number of M/MA Modules
Carried:
• Four (4) M or MA Module
M/MA Module Interface:
• A08, D08/D16
Interrupts: INTA/INTB/INTC
Interrupt Control:
• Enable/Disable per M Module Slot
• Programmable Interrupt Vector
per slot
Input/Output: M Module Connector
Additional Information
This product is distributed in the
United Sates by C&H Technologies,
Inc.

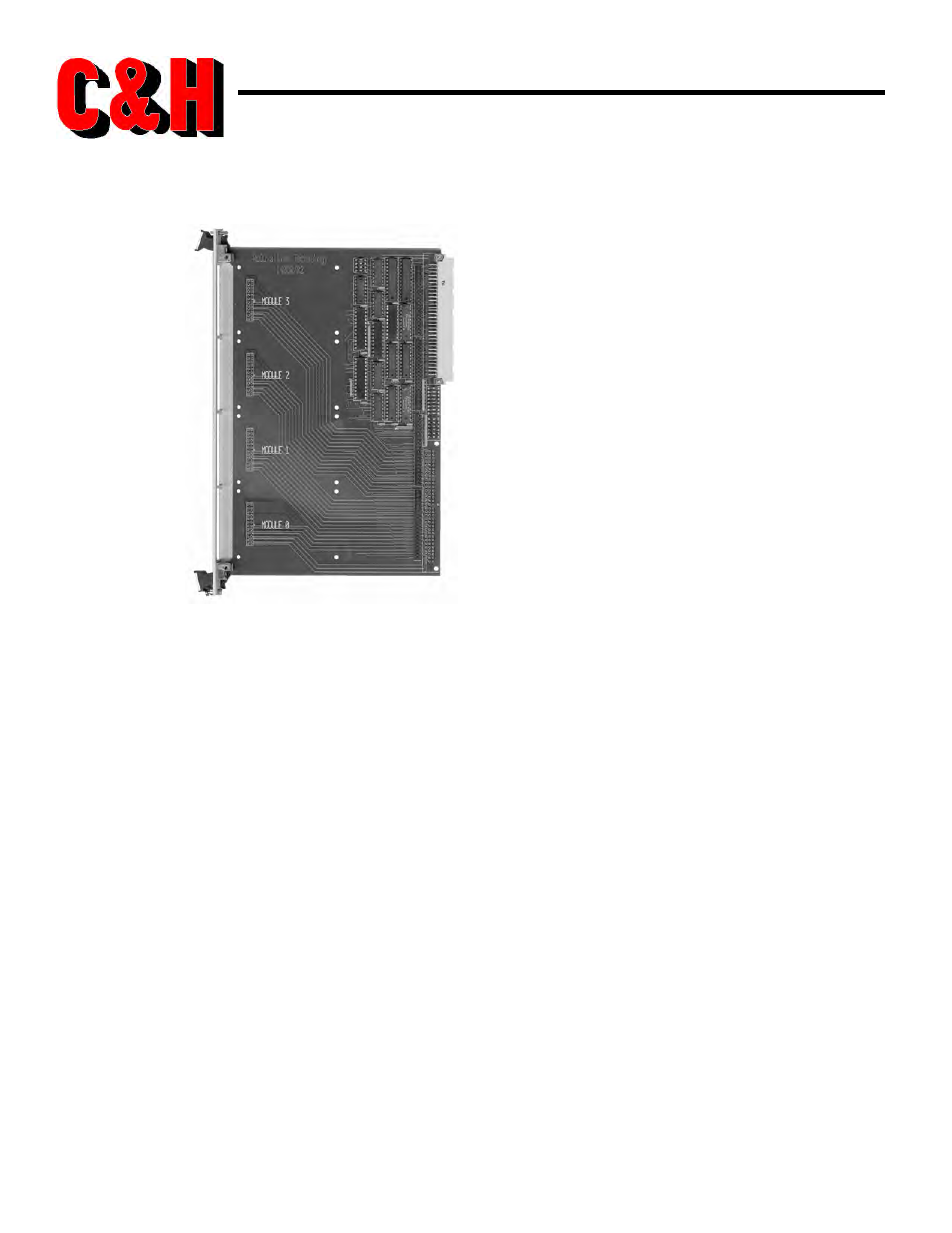

AMi4000
M/MA Module
Carrier
The AMi4000 is an M Module carrier
and forms the basis of a flexible I/O
system. It offers the user a means
of integrating a mix of M Modules in
a VMEbus system.
The interrupt controller on the
AMi4000 has an interrupt vector
register for each M Module
interface. If a module is able to
generate its own vector, the
AMi4000 simply passes the interrupt
request to the VMEbus. Interrupts
for each M Module can be masked
separately. The level on which an
interrupt is issued to the VMEbus, is
selectable by setting a DIP-switch.
This is valid for all four M Module
interfaces.
