Cooper-Atkins 93025 User Manual
Page 3

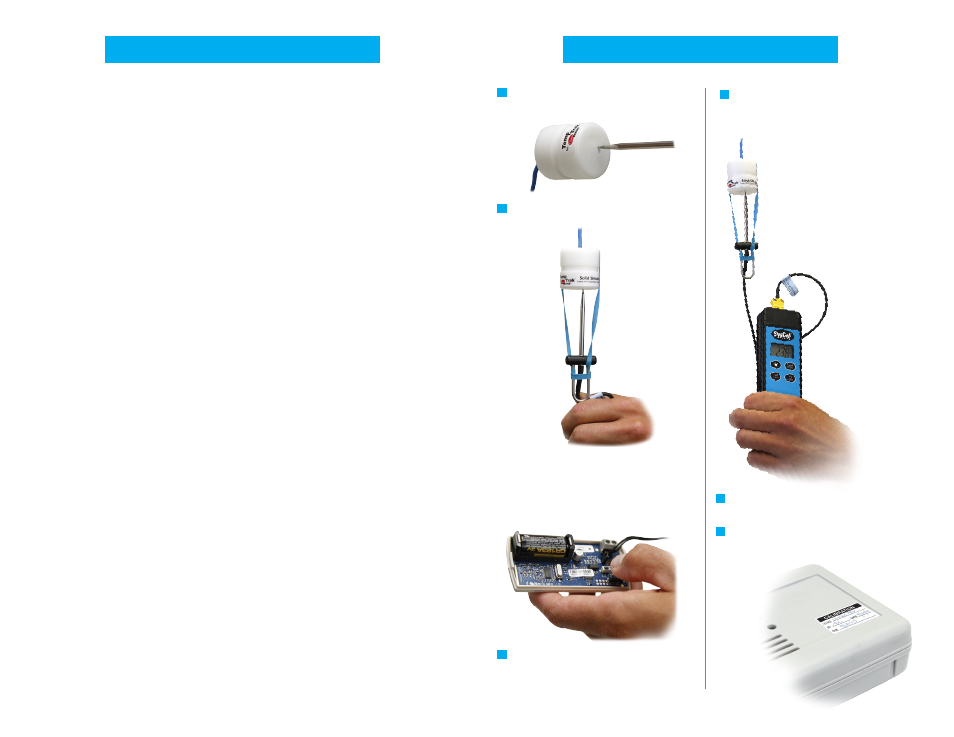

CALIBRATION INSTRUCTIONS
1
Insert the SysCal probe into the calibration port
of the solid simulator.
Close the door to the monitoring area to minimize
temperature fluctuations. To ensure an accurate
reading between the probe and the solid simulator,
allow them to stabilize for 3 to 5 minutes before
recording a temperature.
3
A TempTrak reading transmission is initiated
by pressing the transmit button* on the
TempTrak transmitter (900 MHz shown).
*Depending on the transmitter type, this button may be
accessible from the inside (as above) or from the outside.
5
Seal the calibration port on the solid simulator probe
by placing a blank label (supplied) over the hole.
2
Secure probe by looping the elastic band over
the top of the solid simulator.
The reading from the TempTrak
transmitter is compared to the
reference standard recorded by
the SysCal thermocouple. If that
reading is within ±2.0ºF (±1.1ºC), the
transmitter and solid simulator probe
are considered to be calibrated
within the stated accuracy.
4
Immediately after sending the reading from the
transmitter, take note of the temperature displayed
on the thermocouple. Record this reading in your
data log sheet. Use this as your reference standard.
6
A new calibration label (supplied) is dated and signed
by the technician, and placed on the housing
of the TempTrak transmitter (802.11 Wi-Fi shown).
6
3
93025 SYSCAL SYSTEM SPECIFICATIONS
SYSTEM COMPONENTS
:
(1) 35025 thermocouple and (2) 50219-K probes
SYSTEM RANGE:
-25°F to 180°F (-32°C to 82°C).
SYSTEM ACCURACY
:
±0.5°F (±0.3°C) when probe/instrument are calibrated
together and ambient temperature is between 68°F and
86°F (20°C and 30°C).
AMBIENT TEMPERATURE RANGE:
Operating: 32°F to 122°F (0°C to 50°C)
AMBIENT ACCURACY:
At ambient temperatures between 32°F to 68°F (0°C to
20°C) and 86°F to 122°F (30°C to 50°C), add ±0.1° error
per °F or °C deviation from 68°F and 86°F (20°C and
30°C).
RESOLUTION
:
0.1° / 1° user selectable
DISPLAY:
LCD with 0.5” (13 mm) digit height
BATTERY TYPE:
(2) 1.5V (AAA) batteries (ANSI/NEDA-24F, IEC-R03)
BATTERY LIFE:
1800 hours typical
LOW BATTERY:
Indicated by battery icon on display. When battery is fully
depleted “batt” appears on display and unit will shut off
and not operate.
STORAGE
:
-13°F to 167°F (-25°C to 75°C) (battery removed)
COMPLIANCE/REGULATORY
:
Calibrated in an ISO17025 accredited lab, CE certified,
NSF listed, WEEE marked, Rohs compliant.
TRACEABILITY:
We certify that this instrument has been calibrated to
temperature and/or electrical standards traceable to the
U.S. Department of Commerce National Institute of
Standards and Technology (NIST).
