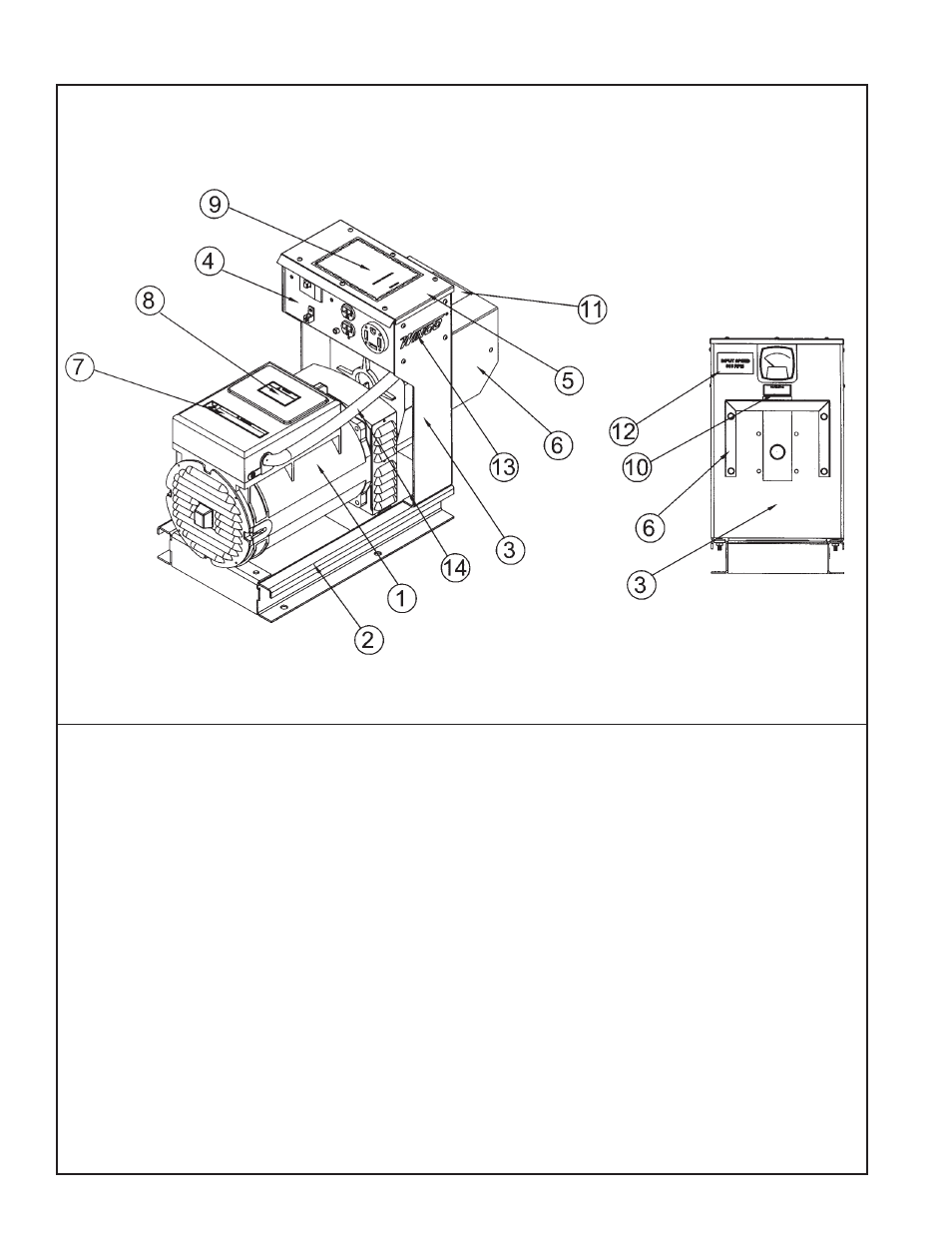

COMPLETE UNIT ASSEMBLY

REF

PART #

QTY DESCRIPTION

1

99839-001

1

Generator &
Gear Case Assy
S20F-230/A M5

2

300077-6

1

Base Assembly

3

99841-002

1

Gear Case Support

4

300160-6

1

Receptacle Box
Assembly

5

300080-2

1

Receptacle Box
Cover

6

300086-1

1

Safety Shield

7

15209-000

1

Safety Decal

8

Z-2516

1

Warning Decal

9

Z2553

1

Operating Instructions
Decal

REF

PART #

QTY DESCRIPTION

10

Z9941

1

Oil Fill Hole Decal

11

Z2568

1

PTO Danger Decal

12

91369-003

1

515 RPM Decal

13

53113-001

1

WINCO Decal

14

62487-003

2.5’

Loom 5/8”

NI

300323-112

1

Capacitor,
31.5 mf, 425 V

NI

300323-212

2

Capacitor,
35 mf, 450 V

NI

300153

1

Gear Case

NI
