Page 9

60706-180

0310-00

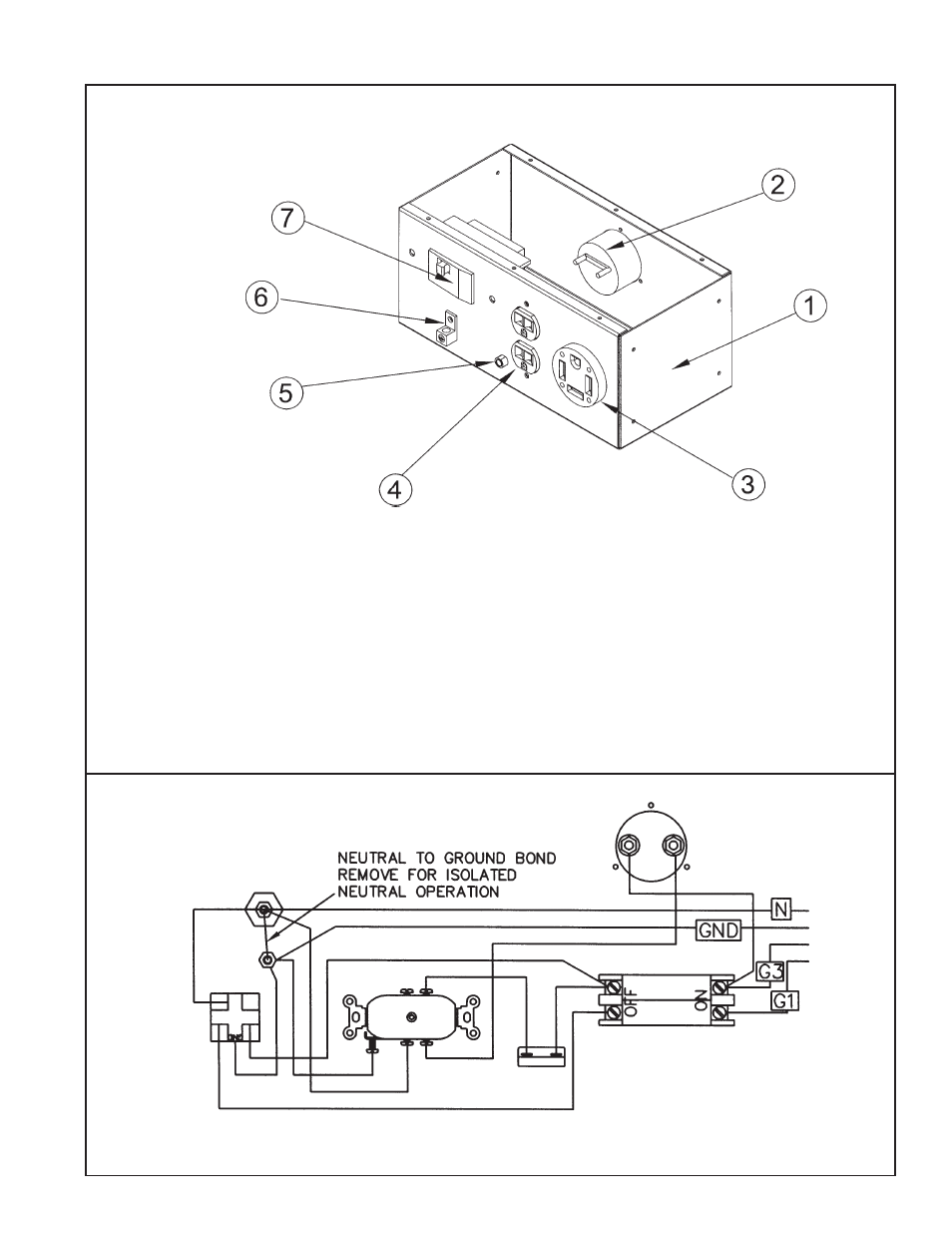

RECEPTACLE
PANEL

WIRING DIAGRAM

REF

PART #

QTY

DESCRIPTION

1

300079-4

1

Control Box Sheet Metal

2

91370-000

1

Voltmeter 0 - 300 VAC

3

300136

1

Receptacle, NEMA 14-60R

4

50766-000

1

Receptacle, NEMA 5-20R

5

91286-001

1

Circuit Breaker 20 AMP - 120 VAC

6

63708-000

1

Ground Lug

7

57030-005

1

Circuit Breaker 60 AMP - 240 VAC

NI

300137

1

Plug. NEMA 14-60P (Supplied with the Unit)
