INSTALLATION INSTRUCTIONS FOR 2-WIRE

AUTO START CONTROL CONVERSION

The following instructions are provided to convert the ULPSS12H4W/E

from a special 4-wire start system to a standard 2-wire Auto Start Sytem.

Items required:

WINCO Conversion Kit # 16448-006 Auto Start (for ULPSS12H2W/E)

T25 Torx Screwdriver

7/16” End Wrench or Socket & Driver

PROCEDURE

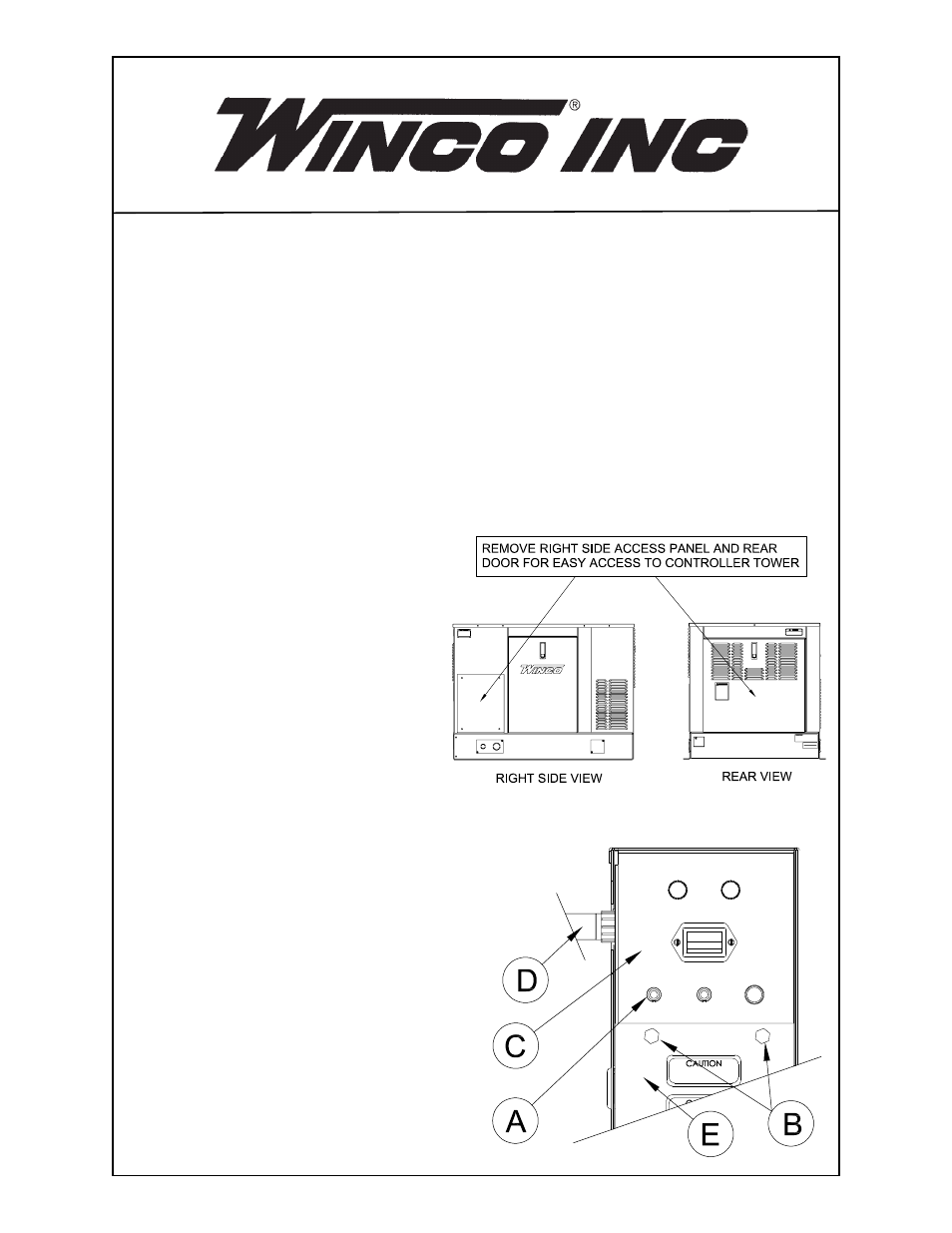

1. Move the left hand toggle switch “A”

to the “STOP” position.

2. Remove the battery negative (-)

cable if the battery is installed.

3. Unplug the wiring harness “D”.

4. Remove the two bolts “B” and remove

the circuit breaker cover panel “E”.

5. Remove the 4 torx screws “G” from the

tower assembly.

6. Remove the 4-wire controller “C” by

pulling it forward.

7. Install 2-wire controller “F” by pushing

the controller back into position.

8. Re-install the 4 torx screws “G”.

9. Re-connect the wiring harness “D”.
