PAGE 16

110/60ATS-3/C
230/150ATS-3/C

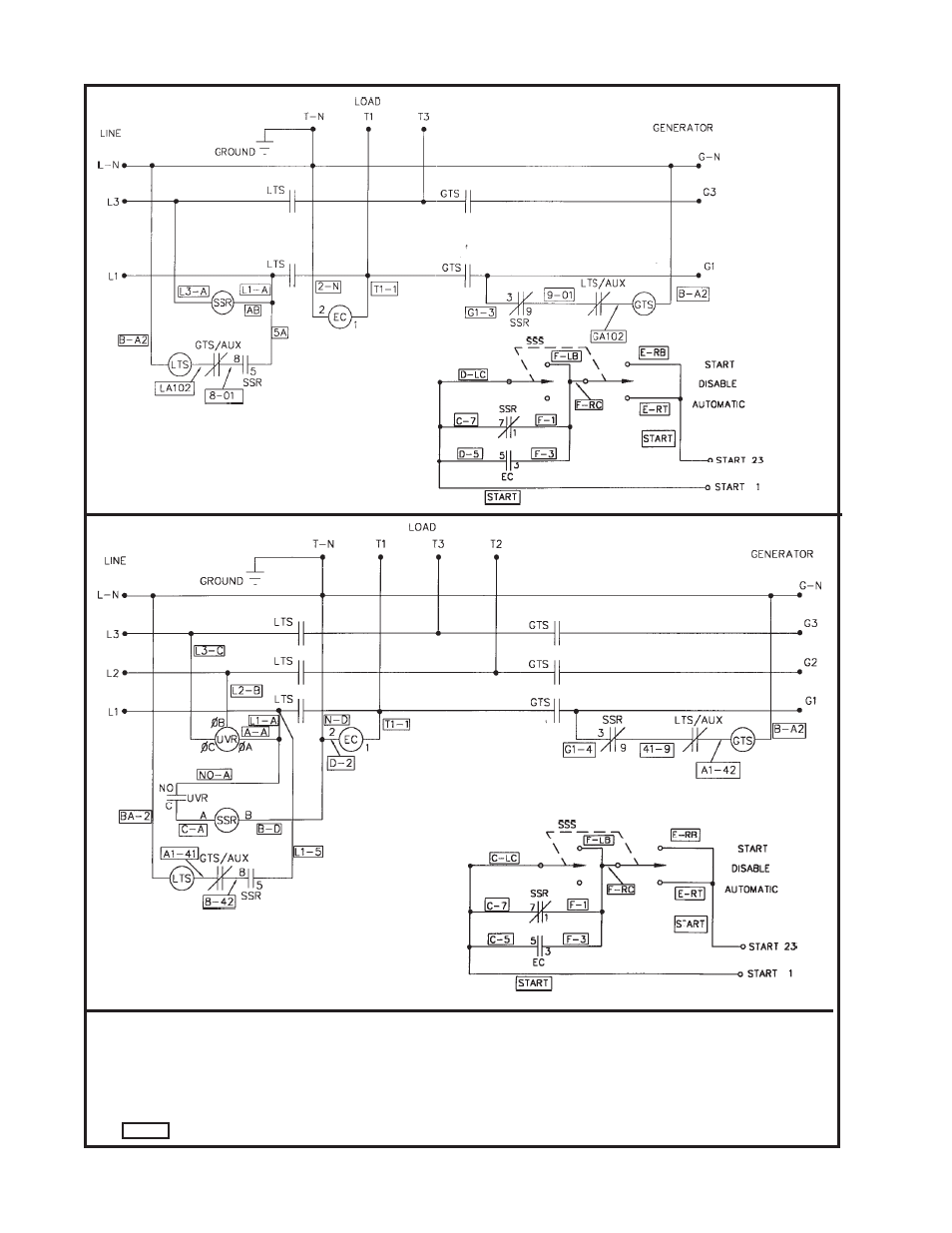

NON-UL ATS SCHEMATIC

230/150ATS-4/D
230/150ATS-17/D
NON-UL ATS SCHEMATIC

LEGEND

LTS

Line Side Contactor

GTS/AUX

Generator Side Auxiliary

GTS

Generator Side Contactor

LTS/AUX

Line Side Auxiliary

SSR

Start/Stop Relay

UVR

Under Voltage Relay

EC

Exerciser Clock

SSS

Start/Stop Switch
