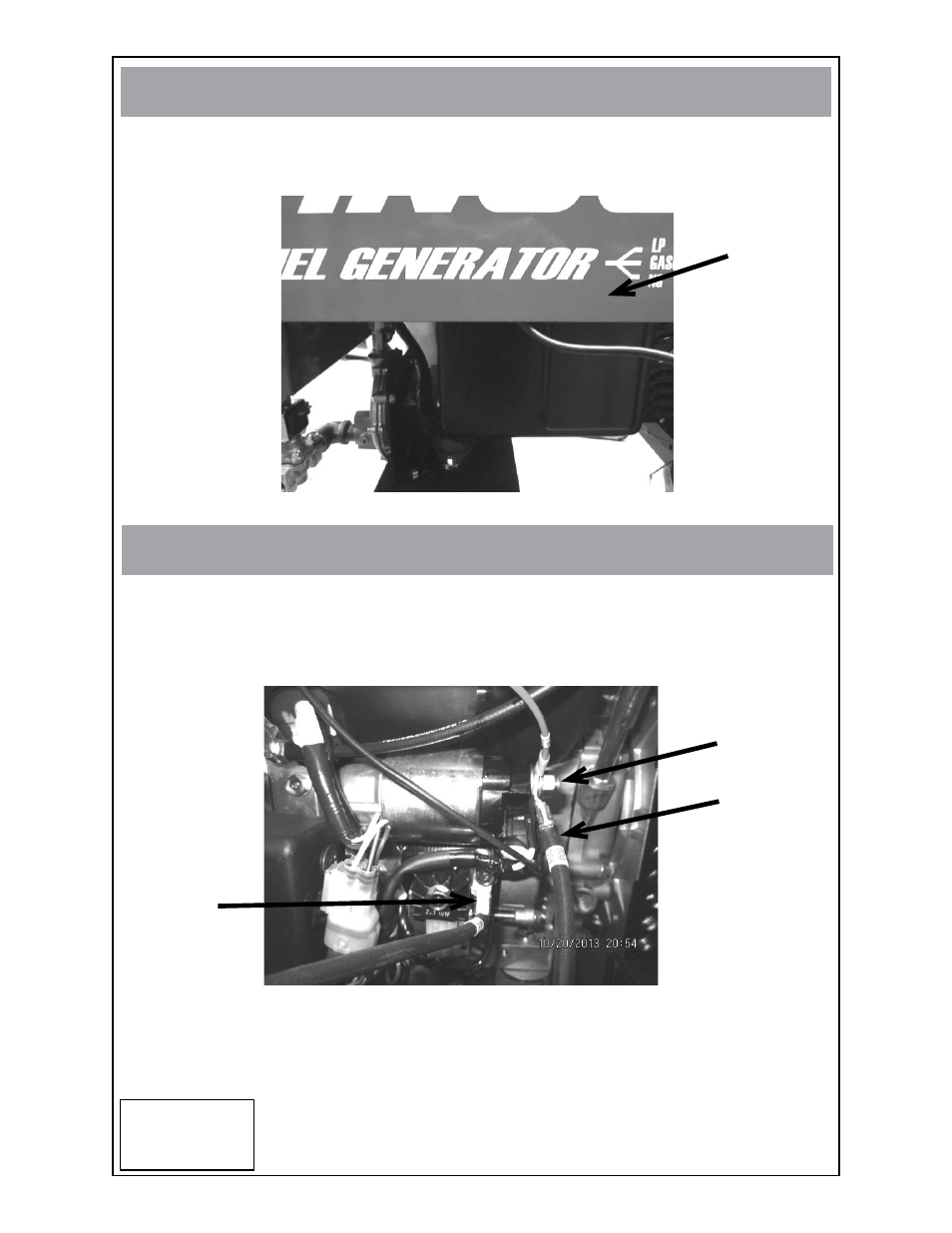

STEP 6
Take the battery positive cable (K) loose from the starter solenoid (L). Route RED
wire # 2 to the starter solenoid. Replace nut, cable and re-tighten.
Take the battery negative cable (M) loose from the engine. Route BLACK wire #
to the battery negative bolt. Replace bolt, cable and re-tighten.
•
•
Winco Inc.
Service Dept.
507-357-683
STEP 5
Secure the power cord and solenoid wires to the back side of the side panel (J)
using the cable tie hold downs and cable ties.
•
J
Using any extra cable tie hold downs and cable ties provided, neatly tie excess
wire loom, wire and power cord to prevent rubbing on the engine.
TO START: Hold down control box button, turn key, engine will start. Once unit
generates power (about second) release button.
•
•
L
K
M
