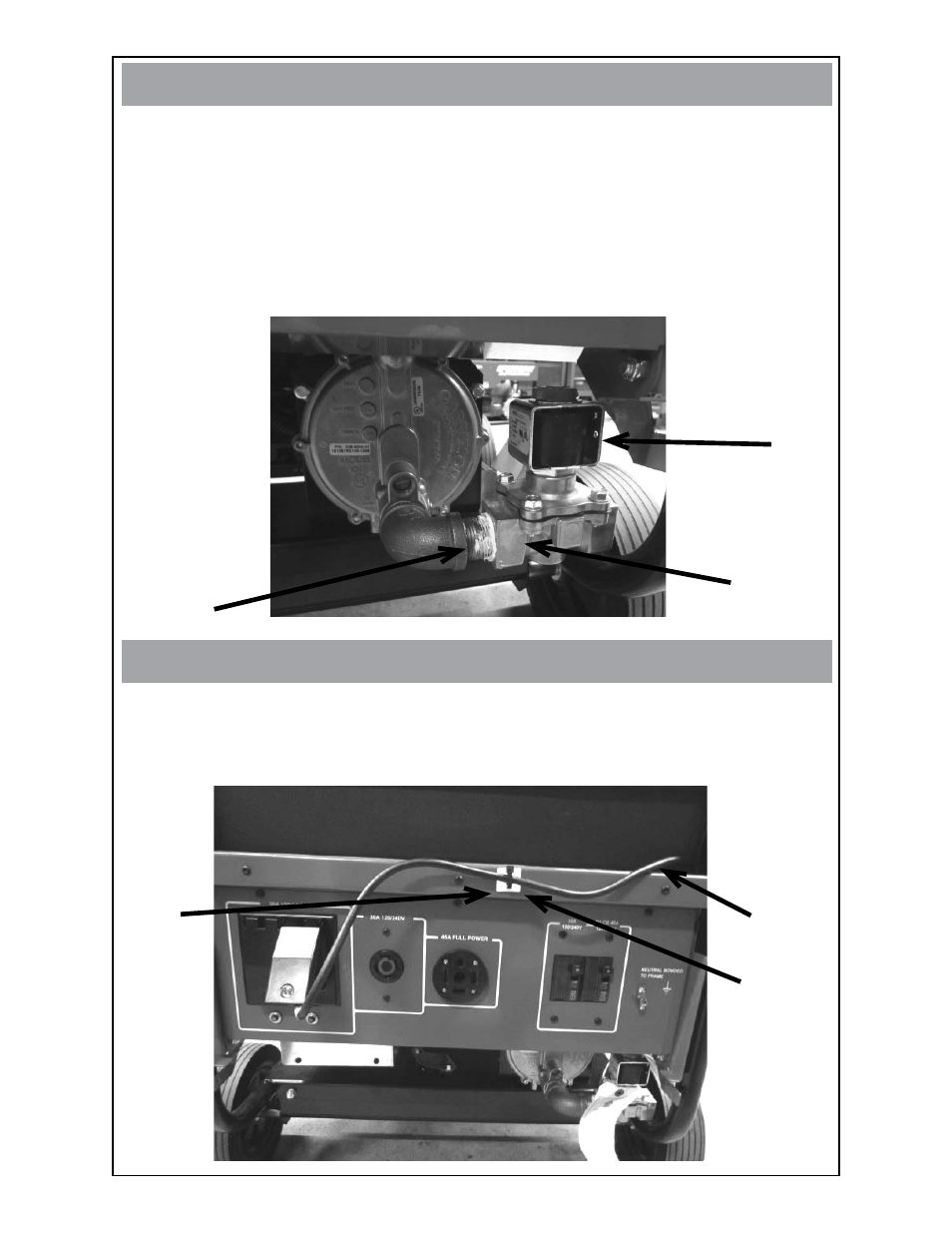

Thread the pipe nipple (D) onto the 90° elbow using pipe sealant.
Tighten the pipe nipple with a pipe wrench.
Thread the gas solenoid valve (E) onto the pipe nipple using pipe sealant.
Make sure the solenoid end marked “OUT” is toward the generator and the
solenoid end marked “IN” is toward the supply line.
Tighten with a pipe wrench.
Connect wires labeled & 2 from control box harness to the solenoid (F). Polar-
ity does not matter.
•
•
•
•
•
•
STEP 3
STEP 4
Route power cord (G) from control box assembly along the side of the generator
set and through the area between the fuel tank and the receptacle panel.
Plug cord in a 20 volt receptacle.
Secure cord with cable tie hold down (H) and cable tie (I).
•
•
•
D
F
E
I
H
G
