3240-10
14
60706-236

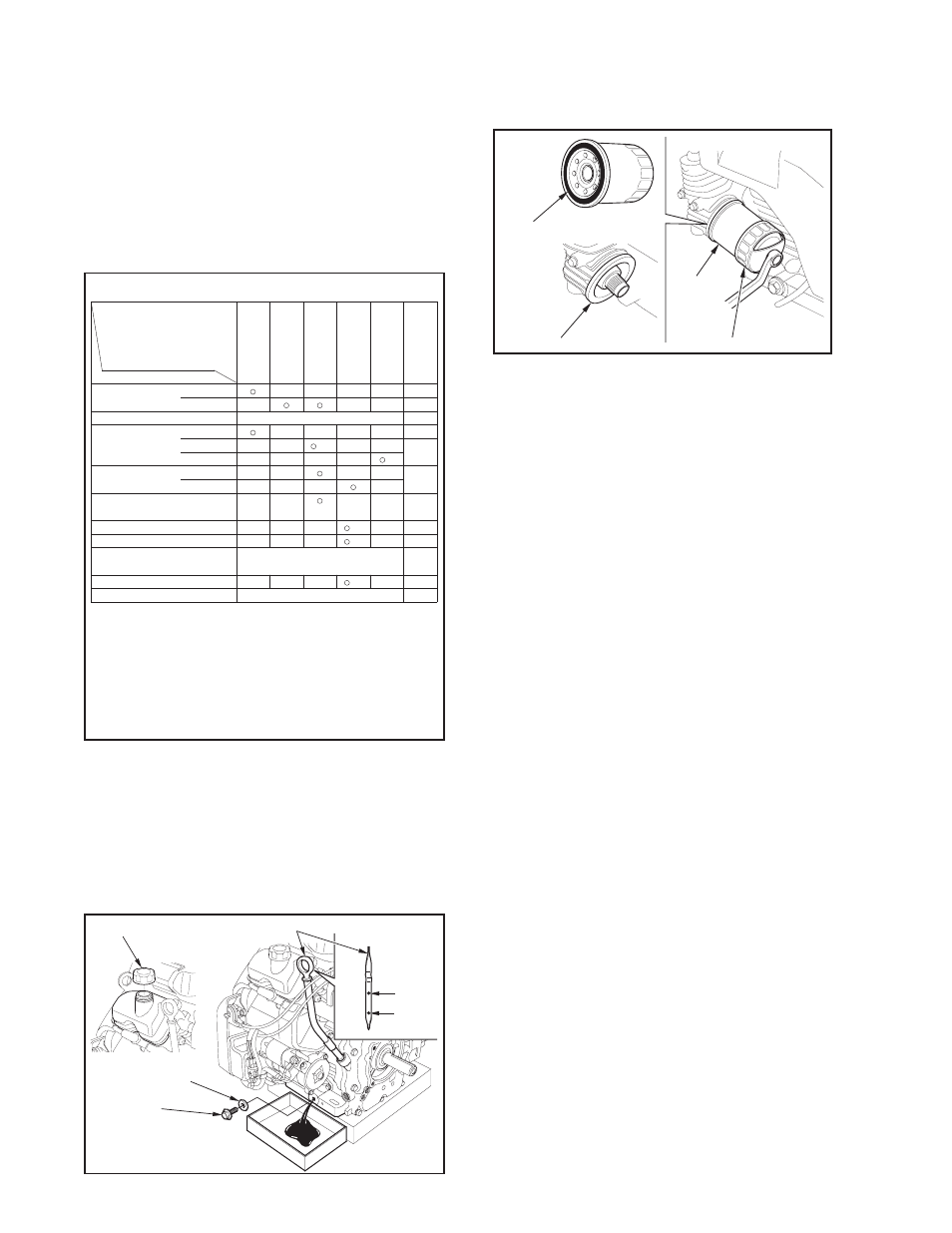

ENGINE CARE
If major engine service or repair is required, contact
an authorized engine service center. The manufac-
turer of these engines has established an excellent
world-wide engine service organization. Engine ser-
vice is very likely available from a nearby authorized
dealer or distributor. Check the yellow pages of your
local telephone directory under “Engines-Gasoline”
for the closest engine repair center or ask the dealer
from whom you purchased the power plant.
1. Change the oil after the fi rst 5 hours of operation
and yearly or 100 hours thereafter under normal op-
erating conditions. Change engine oil every 50 hours
of operation if the engine is operated under heavy
load, or in high ambient temperatures.
a. Start the engine and warm it up, stop the engine
and remove the spark plug wire to prevent it
from accidently being started.
b. Remove oil drain bolt at base of the engine
and drain the oil into an approved container.
c. Remove the oil fi lter and dispose of it properly.
d. Before you install the new oil fi lter, clean the fi lter
mounting base and coat the seal of the new oil
fi lter will clean engine oil.
e. Install the oil fi lter by hand until the gasket
contacts the oil fi lter adapter, then tighten the oil
fi lter 1/2 to 3/4 turns.
f. Replace oil drain bolt making sure the sealing
washer is in place..
g. Remove oil cap plug and refi ll with new oil.
Refer to the table on page 5 for the proper
grade of oil based on your operating
temperature.
NOTE: This engine requires 57 to 58 ounces of oil
if it is completely drained. Use caution when refi lling
the engine as some residual oil may have remained
in the engine. Always use the dipstick when fi lling
the engine with oil to prevent overfi lling.
h. Replace fi ller cap.
i. Start the engine up and warm it up.
j. After warming up the engine, recheck the oil
level and refi ll as necessary to bring it to the
proper level. See page 5 for proper oil level.
2. Checking the Oil Level: The oil level must al-
ways be checked before the engine is started. Take
care to remove any dirt or debris from around the
oil fi ll plug before removing. Be sure the oil level is
maintained. Fill to the “FULL” mark on the dipstick.
3. Dual Element Air Filter: Clean and/or replace
foam pre-cleaner and air fi lter annually or every 100
hours. Service more often under dusty conditions.
WARNING: EQUIPMENT DAMAGE
Never start or run the engine with the air fi lter re-
moved
a. Unsnap the air cleaner cover latches and
remove
cover
MAINTENANCE SCHEDULE
Service more frequently when used in dusty areas.
These items should be serviced by your Honda servicing
dealer, unless you have the proper tools and are mechanically
proficient. Refer to the Honda shop manual for service
procedures.
Replace the paper filter element only.
Refer to the Shop Manual.
(1)
(2)
REGULAR SERVICE PERIOD (3)
Perform at every
indicated month or
operating hour interval,
whichever comes first.
ITEM
Engine oil
Engine oil filter
Air cleaner
Spark plug
Spark arrester
( )
Idle speed
Valve clearance
Combustion
chamber
Fuel filter
Fuel tube
Check level
Change
Replace
Check
Clean
Replace
Check-adjust
Replace
Clean
Check-adjust
Check-adjust
Clean
Replace
Check
First
Month
or
20 Hrs
Refer
to
Page
8
8
9
9
9
10
11
Every 6
Months
or
100 Hrs
(1)
Every
Year
or
300 Hrs
(2)
(2)
(2)
Every 2
Years
or
500 Hrs
Each
Use
Every 200 Hrs.
After every 1000 Hrs. (2)
Every 2 years (Replace if necessary) (2)
applicable types
OIL FILTER
SEAL
FILTER MOUNTING BASE OIL FILTER SOCKET
UPPER
LIMIT
LOWER
LIMIT
SEALING WASHER
DRAIN BOLT
OIL FILLER CAP OIL LEVEL DIPSTICK
