TROUBLESHOOTING HINTS
PROBLEM (SYMPTOMS) POSSIBLE CAUSES
——————————————————————————
Won’t Start
*Low oil level.
*Fouled spark plug.
*Out of fuel.
*Stop switch in stop position.
*Gummed up fuel system.
*Fuel turned off.
——————————————————————————
Voltage too low
*Engine speed is too low.
*Generator overloaded.
*Defective capacitor.
*Defective stator.
*Defective rotor (field).
——————————————————————————
Circuit Breaker
*Over Loaded.
Trips
*Defective receptacle.
*Defective circuit breaker
*Too small/long of drop cord.
——————————————————————————
Voltage too high
*Engine speed is too high.
——————————————————————————
Generator
*Overloaded.
overheating
*Insufficient ventilation.
——————————————————————————
No output voltage
*Short in load (disconnect).
*Broken or loose wire.
*Defective receptacle.
*No residual magnetism
(in generator).
*Defective stator.
*Defective rotor (field).
*Defective capacitor.
*Defective diode.
*Circuit breaker off or defective.
——————————————————————————

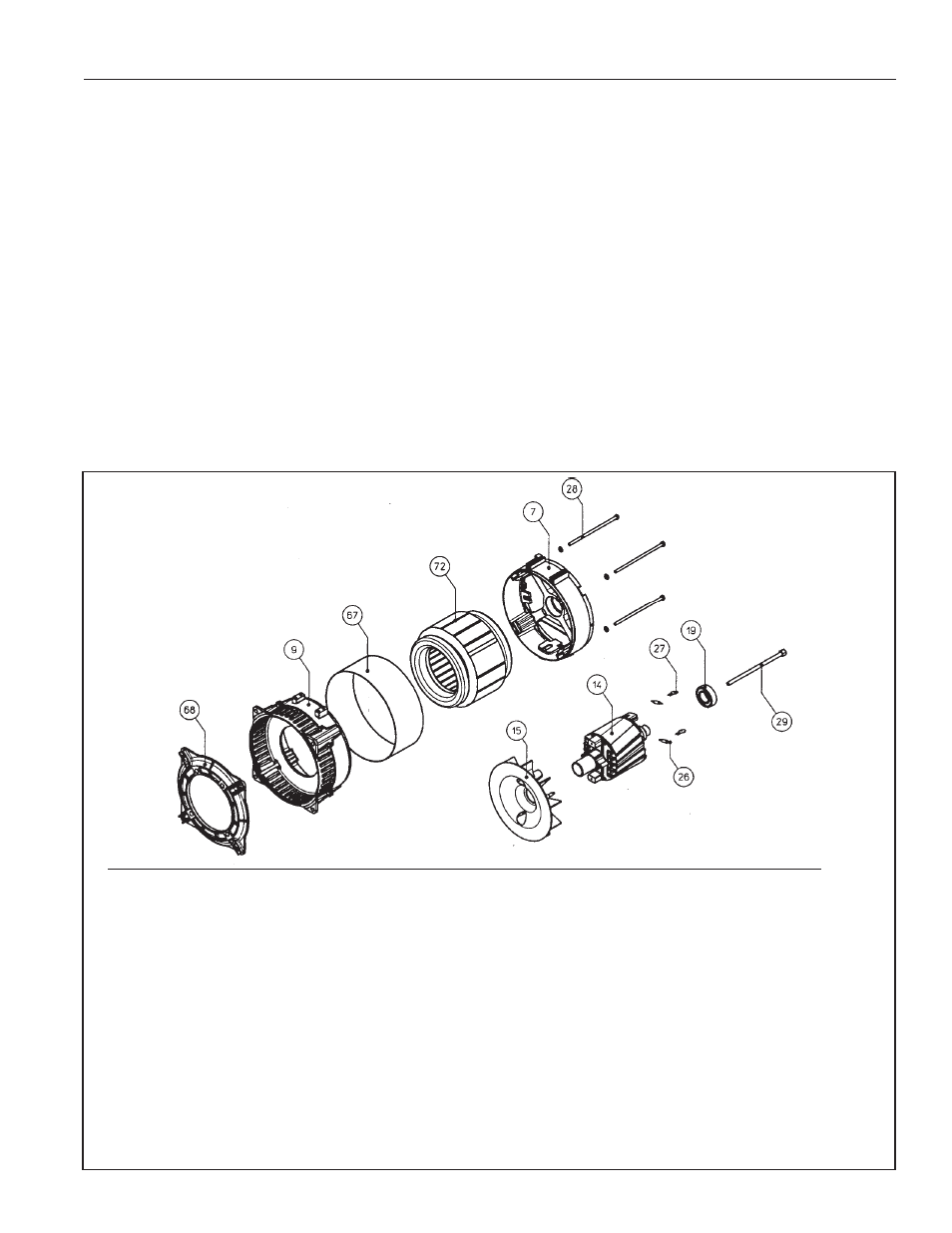

GENERATOR ASSEMBLEY
REF #
Part Number
QTY
Description
7
16346-101
1
Bearing End Bracket
9
16346-102
1
Drive End Bracket
14
16346-103
1
Rotor Assembly
15
16346-104
1
Fan
19
54665-000
1
Bearing
26
16346-105
2
Diode
27
16346-106
2
Varistor
28
16346-107
4
Stator Bolts
29
16346-108
1
Rotor Bolt
67
16346-109
1
Stator Cover Band
68
16346-110
1
Engine Mounting Bracket
72
16346-111
1
Stator Assembly
