Page 1 60706-175 5210-20
WL18000VE/B

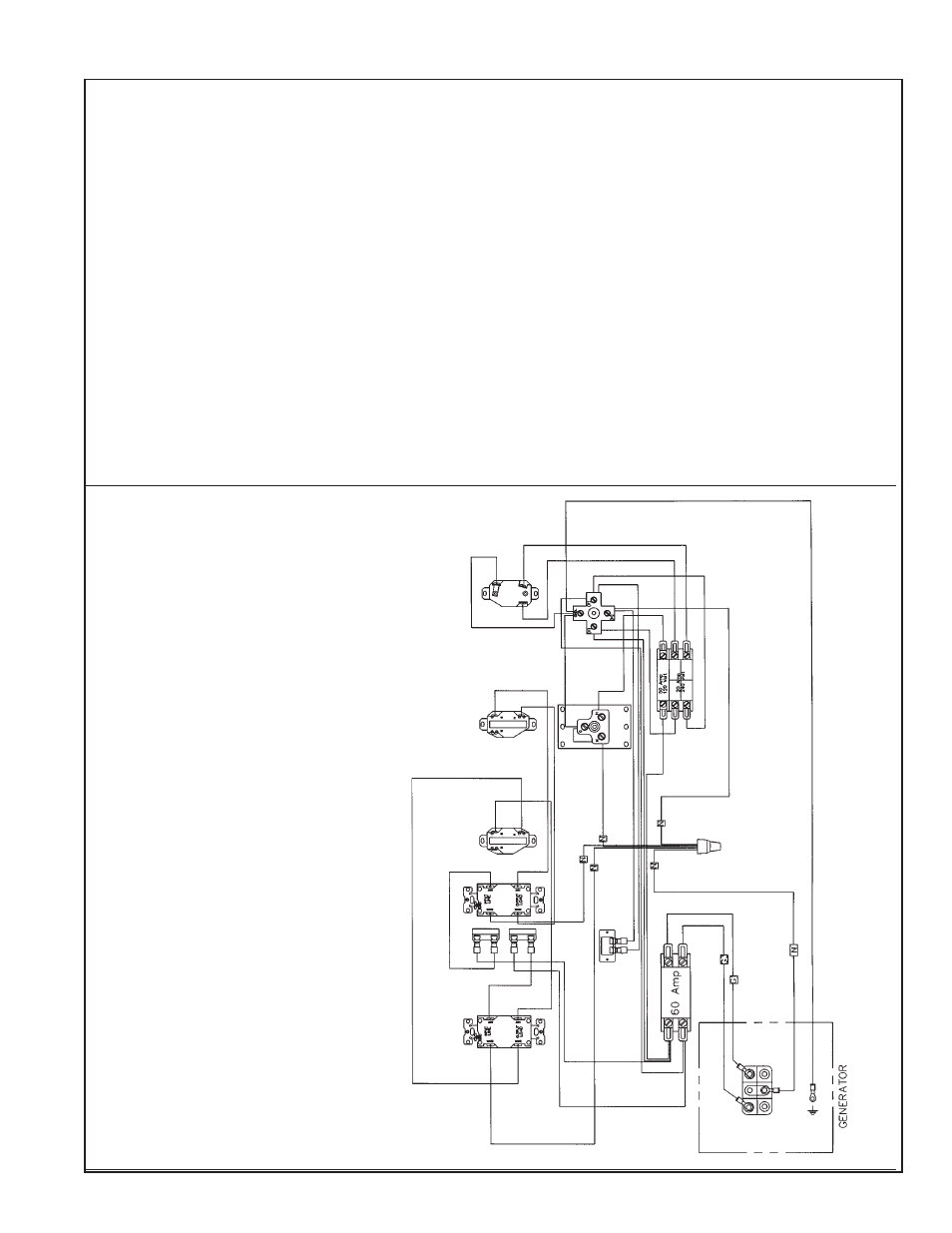

WIRING
DIAGRAM
UNIT SPECIFICATIONS WL18000VE/B
GENERATOR Rotating Field W/External
Voltage regulation
Surge Watts 18,000
Continuous Watts 15,000
Volts 120/240
Amps 125/62.5
ENGINE
Type Briggs & Stratton OHV
Model Number 5434777 - 0140 - E1
Fuel Capacity 15 Gallons
Run Time - Full Load 10.5 Hours
Run Time - Half Load 6.8 Hours
Starting System 12V Electric Start
Stop System Key Switch
RECEPTACLES
Nema 5-20R GFCI (120V) 2 (20A Duplex)
Nema L5-20R GFCI Protected (120V)
2 (20A Twistlock)
Nema 5-50R (120V) 1 (50A Straight Blade)
Nema L6-30R (240V) 1 (30A Twistlock)
Nema 14-60R (120/240V) 1 (60A - 4 Wrie )
COMPLETE UNIT
Weight 550 lbs.
Dimensions LxWxH 41" X 26.75" X 29"
WARRANTY
Generator & Control 2 Years
Engine (B & S Wty) 2 Years
