Page 9

60706-175

5210-20

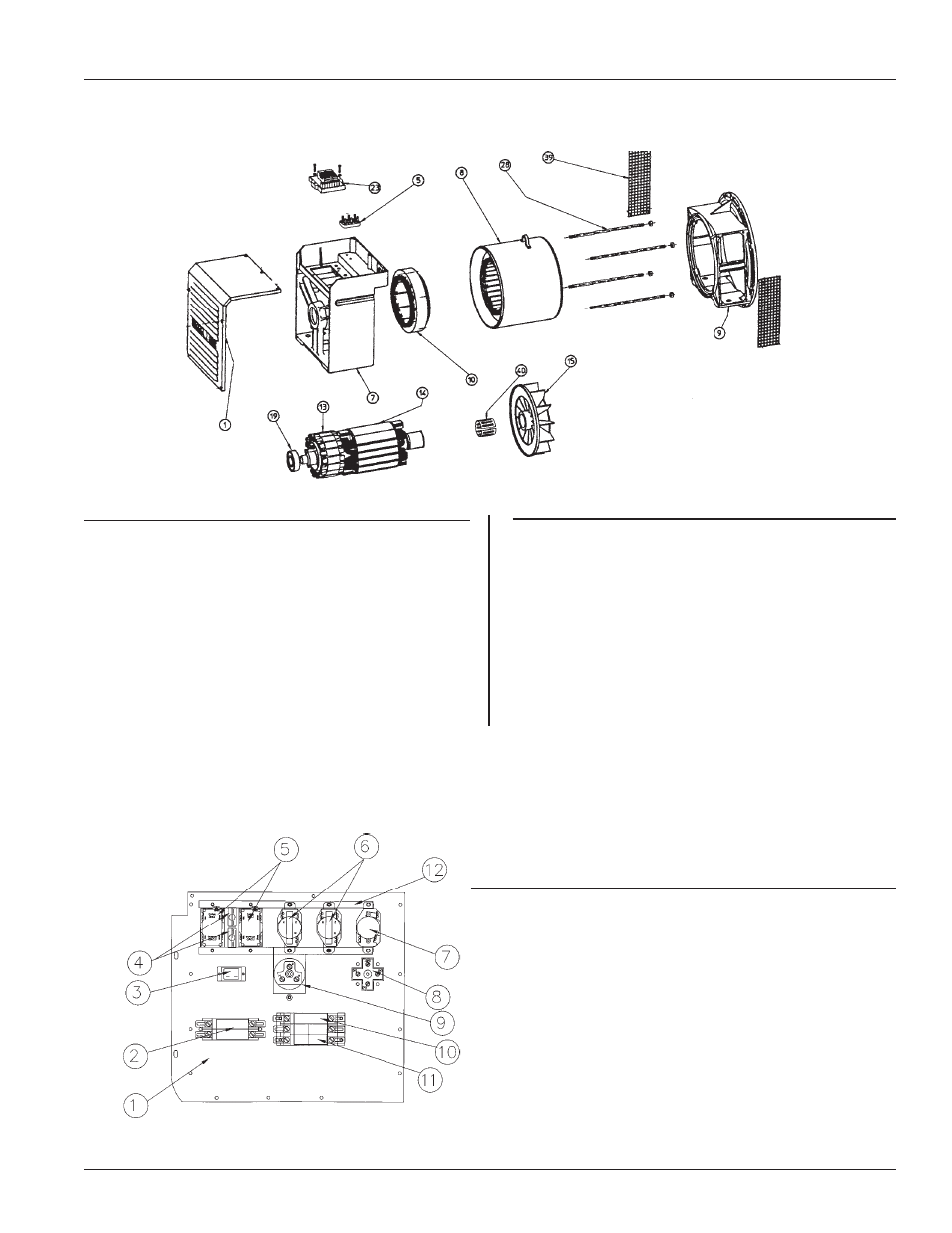

Receptacle Panel Assembly

REF Part Number QTY

Description

1

16428-401

1

Generator Cover

5

16428-402

1

Terminal Block

7

16428-403

1

End Bracket & Housing

8

16428-404

1

Stator Assembly

9

16428-405

1

Engine Adapter Bracket

10

16428-406

1

Exciter Stator

13

16428-407

1

Exciter Rotor

14

16428-408

1

Rotor Assembly

REF Part Number QTY Description

15

16428-409

1

Fan

19

16428-410

1

Rear Bearing

23

16428-411

1

Voltage Regulator

28

16428-412

4

Stator Bolts

39

16428-413

2

Air Screens

40

16428-413

1

Tolerance Ring

NI

16428-414

1

Rotor Thru-Bolt

NI

16428-415

2

Diode

NI

16428-416

2

Varistor

Generator Assembly

REF Part Number QTY Description

1

99055-007

1

Bare Panel

2

57030-005

1

Circuit Breaker 60 Amp 240 V

3

58166-001

1

Running Time Meter

4

91286-001

2

Circuit Breaker 20 Amp 120 V

5

15147-001

1

GFCI Receptacle 120 V

6

56279-000

2

Receptacle L5-20 120 V

7

57324-000

1

Receptacle L6-30 240 Volt

8

300136

1

Receptacle 14-60 120/240 Volt

9

54545-000

1

Receptacle 5-50 120 V

10

91977-003

1

Circuit Breaker 50 Amp 120 V

11

57030-002

1

Circuit Breaker 30 Amp 240 V
