FIELD FLASHING PROCEDURES
Material Required
1. 9 Volt DC Transistor Battery
2. Jumper wires 20 to 22 gauge
Each wire should have a clip on one end
and be stripped about 3/8 of an inch on the other.
Procedure
Caution: Insure there is no open or spilled fuel in the
area of the unit when flashing the fields. Insure the
wires used to flash the field have no bare spots on them.
1. Clip the jumper wires to the terminals on the battery.
2. Start the engine generator set.
3. Locate the 120 volt receptacle with the two flat blade slots.
4. Making sure not to touch the bare wire, momentarily insert the bare ends of the wires into
the appropriate slots.
5. BRIEFLY POKE THE WIRES INTO THE RECEPTACLES, BUT DO NOT HOLD THE
WIRES IN THE RECEPTACLE. THIS RECEPTACLE WILL ENERGIZE TO 120 VOLTS
IMMEDIATELY.

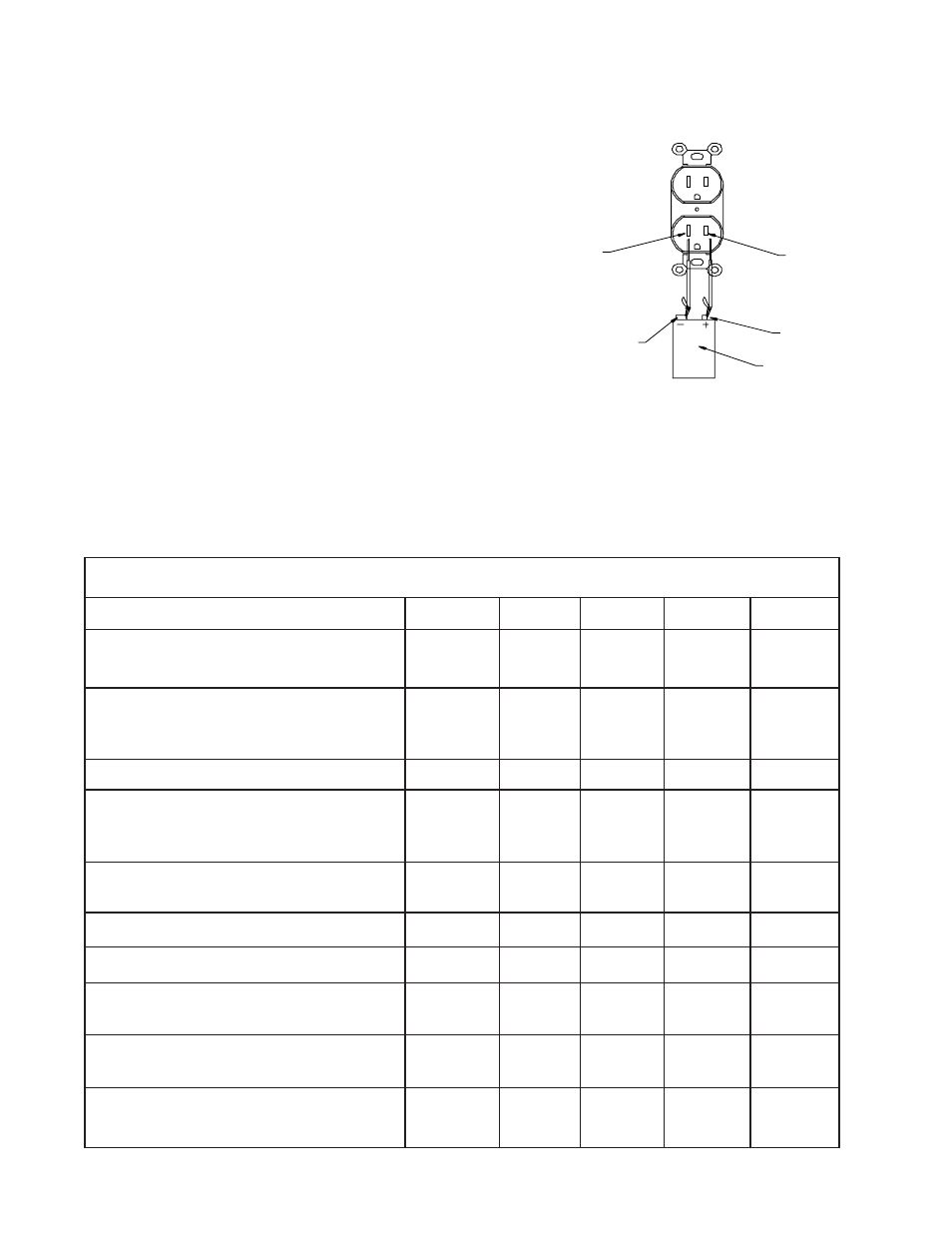

Positive
Terminal
9 Volt Transistor
Battery
Negative
Terminal
Neutral
Hot Side
Diagram #1
MODELS ROTOR G1TO N G2 TO N Q1 TO Q2 SS SPEC
HD3200, HD3200H HP3300,
HP3300H, WT3000, WC3000H
0.83-0.92 0.52-0.57 1.68-1.87 SS 1530
TF4500, DX4500, HP4500, HP4500H
HP5000H, HD4500, HD4500, EC4500
0.95-1.05 0.17-0.19 0.34-0.375 0.53-0.58 SS 1531
WC4500, WC5000H, W4500, W5000H
TF6000, DX6000, HP6000, HP6000H 1.87-2.08 0.12-0.14 0.25-0.28 0.34-0.39 SS 1533
TFM6000,DXM6000, HDM6000, HDM6000H
HPM6000, HPM6000H, WC6000, WC6000H
10.9-12.1 0.10-0.11 0.17-0.19 0.76-0.84 SS 1544
W6000, W6000H
DX9000, HP9000, HP9500H
TF9000, PSS8000, WC9000, W9500
0.69-0.77 0.12-0.13 0.12-0.13 0.22-0.24 SS 1538
LC1500, LC1750 0.73-0.82 0.72-0.86 2.40-2.67 SS 1545
LC3000, LC3000H, LC3000I, D3000 0.83-0.92 0.52-0.57 2.40-2.67 SS 1540
LC4500, LC5000H, LLC4500, LLC5000H 0.79-0.87 0.61-0.67 0.61-0.67 2.10-2.33 SS 1541
DLC4500, D4500, D5000, DL4500, DL5000
LC6000, LLC6000, DLC6000, 1.95-1.05 0.21-0.23 0.22-0.25 0.53-0.58 SS1543
TFLC6000, DL6000, DL6000H
LLC9000, TFLC9000, DL9000 0.69-0.77 0.12-0.13 0.12-0.13 0.22-0.24 SS1538
GENERATOR RESISTANCE TABLE #1
