10

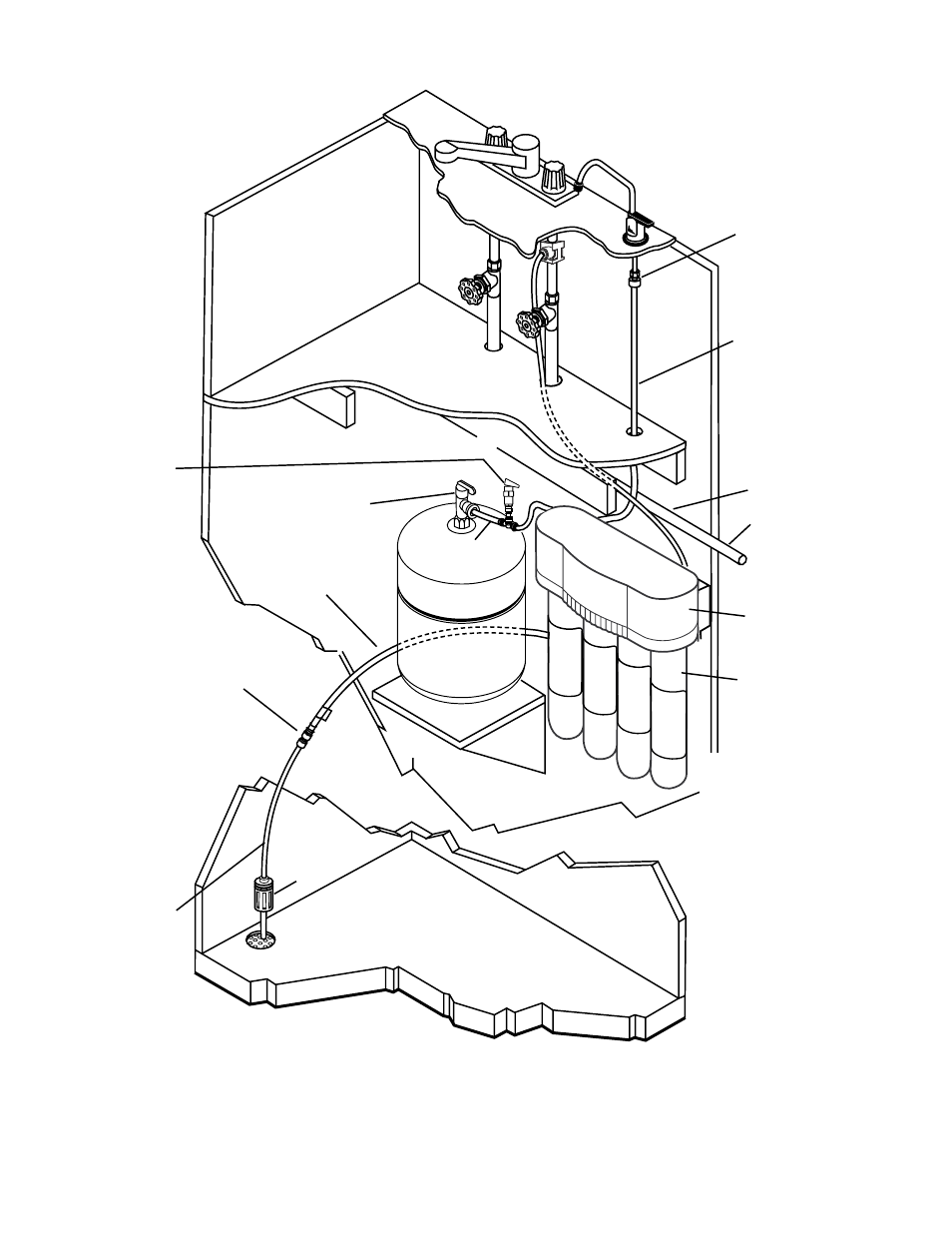

Fig. 7
(FLOOR)
Faucet without
Air Gap
3/8” Blue
Tubing*
For refrigera-
tor icemaker or
water dispenser
hookup, tee into
tubing
Faucet Adapter
Cold Water
Supply Pipe
3/8” Yellow
Tubing*
Storage
Tank**
1/4” green tubing
Air Gap Device
(e.g. Gap-A-Flow)
Laundry Sink,
Standpipe or
Floor Drain
(Basement
Floor)
Storage Tank
Valve
Red SFC Tubing
Filtration
assembly
* For best flow, keep the tubing as short as possible
** Mount the storage tank on a shelf or strap it between two floor joists
1/4” Orange
Tubing
SQC 3 - has 3 cartridges
SQC 4 (shown)
Reducing Union
Pressure Relief
Valve (Required,
not Included)
