Vogelzang VG820E (new as of 2013) User Manual
Page 6
FLOOR PROTECTOR
2 FT MIN.
10 FT.
MINIMUM
3 FT.
MIN.
APPROVED COWL
6"
MIN.
6" MIN.
APPROVED
THIMBLE
60" MIN.
DAMPER
BAROMETRIC DRAFT
CONTROL
THIMBLE
COLLAR
PIPE
NON-COMBUSTIBLE
WALL
FLOOR PROTECTOR
CLASS A UL 103HT
CHIMNEY KIT INCLUDING
WALL THIMBLE.
BAROMETRIC
DRAFT CONTROL
(OPTIONAL)
DAMPER
6
15

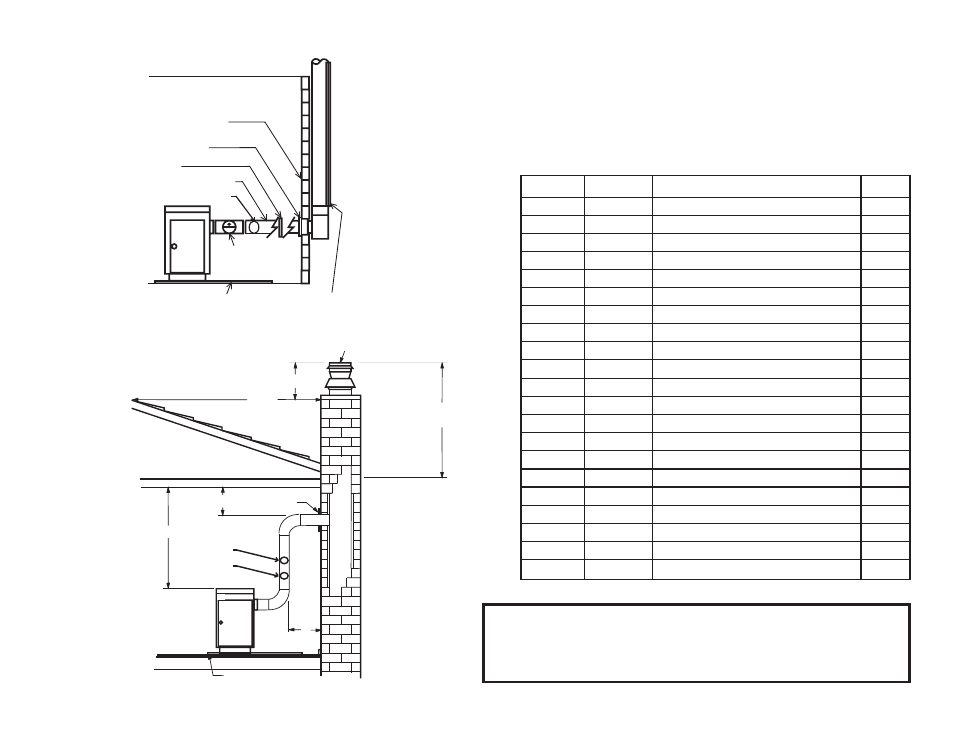

FIG. 6B - Typical Masonry Chimney Installation
FIG. 6A - Th
ru-Th
e-Wall Installation
REPAIR PARTS
AUTOMATIC WOOD BURNING CIRCULATOR HEATER
MODEL NUMBER VG820E
EXTERIOR REPAIR PARTS LIST
KEY NO. PART NO. DESCRIPTION
QTY.
1
89635
Cabinet Door Knob
1
2
83005
Screw (10-24 x 1/2) FL
1
3
83033
Screw (8-32 x 1/4) PH,TR,HD,Z
1
4
83093 Spring
Latch
1
5
83244
Kep Nut (10-24)
1
6
67968BR
Cabinet Door Frame
1
7
69271 Thermostat
Linkage
1
8
852091
Control Panel Plate
1
9
89687 Thermostat
Knob
1
10
67725GO
Cabinet Front Assembly
1
11
67967BR
Cabinet Left Side
1
12
21593 Hinge
Support
1
13
83833 Hinge
Clip
1
14 67966BR
Cabinet
Top
1
15
67743 Thermostat
Assembly
1
16
21063 Back
Brace
2
17 69557BR
Cabinet
Back
1
18
89065 Door
Hinge
4
19 67969BR
Cabinet
Door
1
20
23477
Top Thermostat Shield
1
21
83554
3/16 Aluminum Rivet
2
IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST
BE REPLACED USING ORIGINAL MANUFACTURERS PARTS
PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM
THE APPLIANCE MANUFACTURER.
USE OF THIRD PARTY COMPONENTS WILL VOID THE
WARRANTY.
